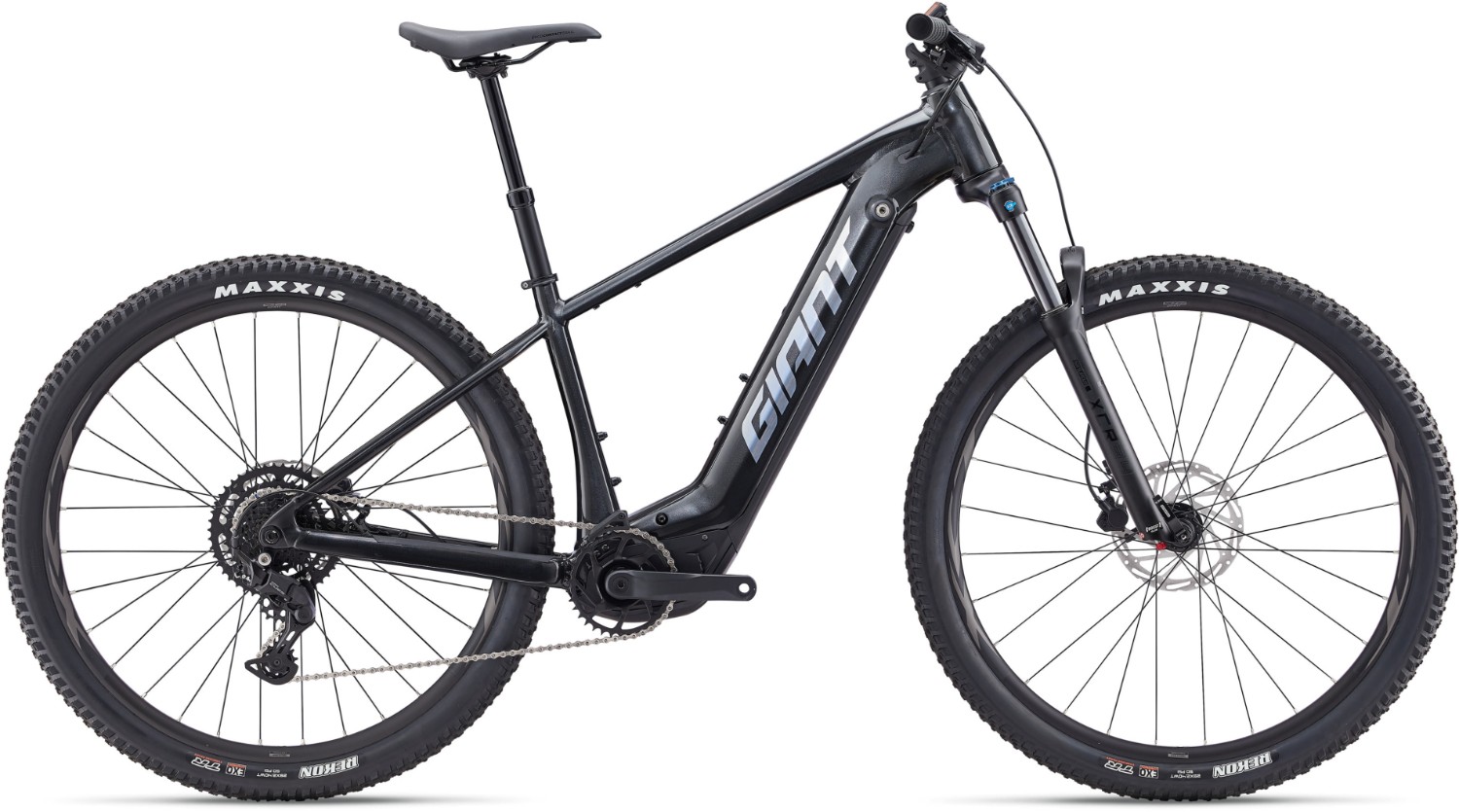

Giant Fathom E+ 2 2024 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX SL aluminium, Overdrive 1.5" - 1.8" head tube, 148x12mm thru-axle, integrated KSA40 kickstand mount, EnergyPak Plus range extender compatible |
| Fork | SR Suntour XCR 34 Boost 2-CR Coil 29, 130mm travel, Tapered 1.125"-1.5" steerer, 15AH2-110 thru-axle |
| Stem | Giant Contact |
| Bars | Giant Connect TR Riser 31.8mm |
| Front Brake | Tektro HD-M285, hydraulic disc, 180mm |
| Rear Brake | Tektro HD-M285, hydraulic disc, 180mm |
| Brake Lever | Tektro HD-M285 |
| Rear Mech | Shimano Cues LinkGlide |
| Shifters | Shimano Cues LinkGlide 1x9 |
| Speed | 9 |
| Rims | Giant XCT 29 Tubeless Ready 25mm e-bike optimised |
| Front Hub | Giant eTracker Boost 15x110 |
| Rear Hub | Giant eTracker Boost 12x148 |
| Spokes | Stainless steel |
| Front Tyre | Maxxis Rekon 29x2.4" Wire Bead 60TPI |
| Rear Tyre | Maxxis Rekon 29x2.4" Wire Bead 60TPI |
| Seat Post | Giant Contact Switch Adj, adjustable dropper, 30,9mm |
| Saddle | Giant Ergo Contact Trail |
| Chainset | FSA MegaTooth direct-mount 1X steel 36T FSA Comet E-Bike crank arm |
| Bottom Bracket | Integrated |
| Chain | KMC eGlide NP/BK, e-bike optimised |
| Cassette | Shimano Cues, LinkGlide, CS-LG300-9, 11-46T, 9-speed |
| Pedals | Aluminium Platform |
| Battery Size (WH) | Giant EnergyPak 625Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 250 range extender compatible |
| Motor | Giant SyncDrive Sport2, 75Nm, PedalPlus 6-sensor technology |
| User Interface | Giant RideControl Dash, high-angle visibility, full color LCD display |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
