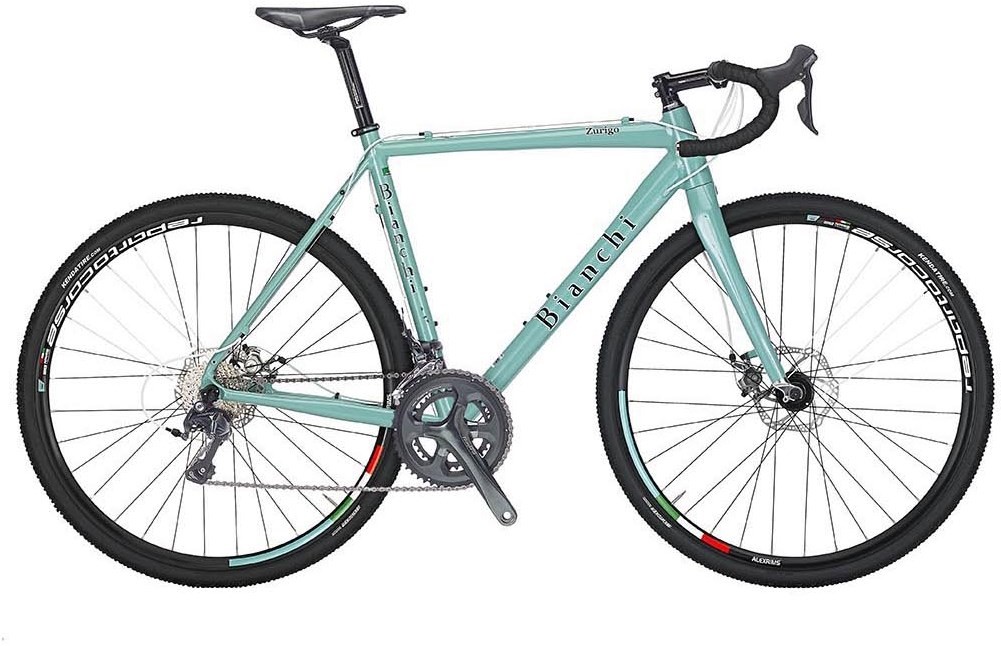

Bianchi Zurigo Disc - Tiagra Compact 2016 - Cyclocross Bike
The Bianchi Zurigo Disc - Tiagra Compact 2016 Features are:
Frame: Zurigo cyclocross, Alu Disc Brake, Headset 1.1/8” - 1.5”, BBset PF30, seatpost 31,6mm, postmount disc, sizes 49-52-55-57-59-61cm
Fork: Bianchi Cyclocross Carbon/alloy 6061 Disc brake, diam. 56mm, 1.1/8” - 1.5”, carbon dropout w/post mount, 48mm offset, 3K finish
Headset: Fsa Orbit C-40-ACB, NO.42/ACB, Sealed 1.1/8” ACB Top, 1.5” ACB Btm (for 46/56mm Head Tubes) w/ Standard 15mm top cover alloy
Stem: Reparto Corse Alloy 6061, rise -78, height 41mm, 1.1/8”, ext: 90mm-49/52cm, 100mm-55cm, 110mm-57/59cm, 120cm-61cm
Speed: 20
Front Mech: Shimano Tiagra FD-4700 for 10-speed, band type (34.9mm) for double chainwheel
Rear Mech: Shimano Tiagra RD-4700 GS 10sp direct attachment, compatible with low gear 28-34T for double, 25-32T for triple
Chainset: Shimano Tiagra FC-4700, 50/34T, w/BB (BSA), crank length: 170mm-49/52cm, 172.5mm-55/59cm, 175mm- 61cm
Bottom Bracket: included in the crankset
Chain: Shimano Tiagra CN-HG500 for 10-speed, w/end pin
Cassette: Shimano Tiagra CS-HG500-10, 11-12-14-16-18-20- 22-25-28-32T
Rims: Reparto Corse Alloy 6061 disc, 700c, 622x17, 22mm height compatible with tire 32mm, pin join, 32 hole, tubeless ready, no eyelet
Tyres: Kenda Happy Medium 700X35 wire bead, 30 tpi Front Kenda Happy Medium 700X35 wire bead, 30 tpi Rear
Front Hub: Formula RX-25 alloy front disc hub, 6-bolt, J-Bend, 2 sealed bearing, 32h, 100mm*108mm, w/qr
Rear Hub: Formula RX-2611 alloy disc hub, 6-bolt, J-Bend, 2 sealed bearing, 32f, 135mm*145mm, w/qr, steel body for Shimano 10/11sp
Front Brake: Hayes CX Expert mechanical disc, 1 Piece Forged Caliper, Alloy Adjustable Inboard Pad, Post Mount caliper, Hayes L6-Series, 160mm, 6-Bolt, 1.75mm Lightweight Rotor
Rear Brake: Hayes CX Expert mechanical disc, 1 Piece Forged Caliper, Alloy Adjustable Inboard Pad, Post Mount caliper, Hayes L6-Series, 160mm, 6-Bolt, 1.75mm Lightweight Rotor
Seatpost: Reparto Corse Alloy 6061-T6 shaft, two CroMo CP finish bolt, Alloy 6061 forged head, 15mm offset, L. 350mm, diam. 31,6mm
Pedals: Not Included
Frame: Zurigo cyclocross, Alu Disc Brake, Headset 1.1/8” - 1.5”, BBset PF30, seatpost 31,6mm, postmount disc, sizes 49-52-55-57-59-61cm
Fork: Bianchi Cyclocross Carbon/alloy 6061 Disc brake, diam. 56mm, 1.1/8” - 1.5”, carbon dropout w/post mount, 48mm offset, 3K finish
Headset: Fsa Orbit C-40-ACB, NO.42/ACB, Sealed 1.1/8” ACB Top, 1.5” ACB Btm (for 46/56mm Head Tubes) w/ Standard 15mm top cover alloy
Stem: Reparto Corse Alloy 6061, rise -78, height 41mm, 1.1/8”, ext: 90mm-49/52cm, 100mm-55cm, 110mm-57/59cm, 120cm-61cm
Speed: 20
Front Mech: Shimano Tiagra FD-4700 for 10-speed, band type (34.9mm) for double chainwheel
Rear Mech: Shimano Tiagra RD-4700 GS 10sp direct attachment, compatible with low gear 28-34T for double, 25-32T for triple
Chainset: Shimano Tiagra FC-4700, 50/34T, w/BB (BSA), crank length: 170mm-49/52cm, 172.5mm-55/59cm, 175mm- 61cm
Bottom Bracket: included in the crankset
Chain: Shimano Tiagra CN-HG500 for 10-speed, w/end pin
Cassette: Shimano Tiagra CS-HG500-10, 11-12-14-16-18-20- 22-25-28-32T
Rims: Reparto Corse Alloy 6061 disc, 700c, 622x17, 22mm height compatible with tire 32mm, pin join, 32 hole, tubeless ready, no eyelet
Tyres: Kenda Happy Medium 700X35 wire bead, 30 tpi Front Kenda Happy Medium 700X35 wire bead, 30 tpi Rear
Front Hub: Formula RX-25 alloy front disc hub, 6-bolt, J-Bend, 2 sealed bearing, 32h, 100mm*108mm, w/qr
Rear Hub: Formula RX-2611 alloy disc hub, 6-bolt, J-Bend, 2 sealed bearing, 32f, 135mm*145mm, w/qr, steel body for Shimano 10/11sp
Front Brake: Hayes CX Expert mechanical disc, 1 Piece Forged Caliper, Alloy Adjustable Inboard Pad, Post Mount caliper, Hayes L6-Series, 160mm, 6-Bolt, 1.75mm Lightweight Rotor
Rear Brake: Hayes CX Expert mechanical disc, 1 Piece Forged Caliper, Alloy Adjustable Inboard Pad, Post Mount caliper, Hayes L6-Series, 160mm, 6-Bolt, 1.75mm Lightweight Rotor
Seatpost: Reparto Corse Alloy 6061-T6 shaft, two CroMo CP finish bolt, Alloy 6061 forged head, 15mm offset, L. 350mm, diam. 31,6mm
Pedals: Not Included
Occasionally, without notice, manufacturers change product design and/or specifications.
