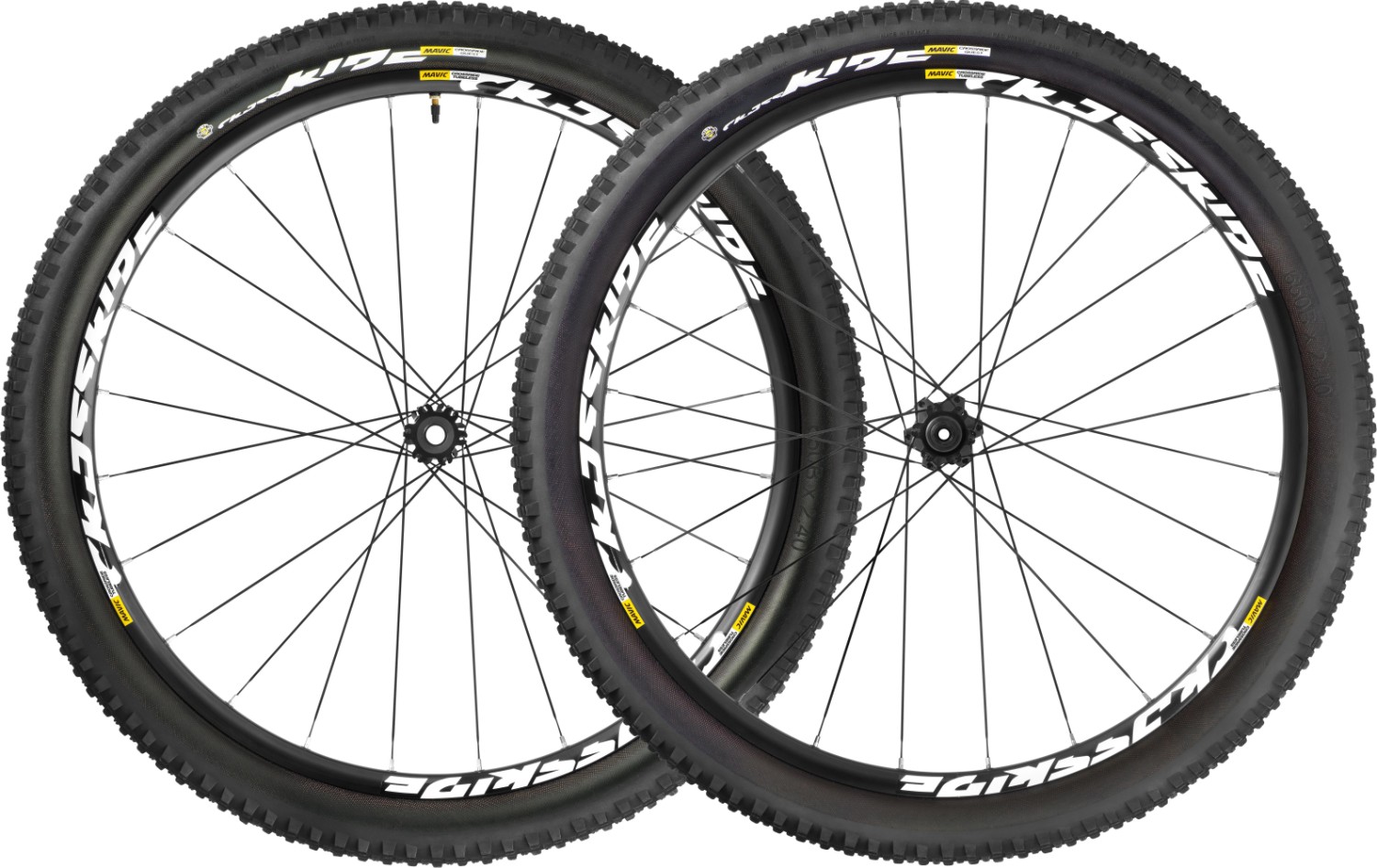

Mavic Crossride UST Quest WTS MTB Wheels - 27.5" – 85694

The Mavic Crossride UST Pulse WTS MTB Wheels come as an easy package. Your get fantastic wheels, tyres and a tubeless kit in one go. Convenience and excellent performance in one easy package.

This wheelset has sleeved 27.5” rims, made from S6000 aluminium alloy, which adds strength, giving a secure connection to the ground. The 21mm internal width helps with getting the most out of your tyres, giving support for tyres sidewalls, while also allowing for smaller tyres to be used for training purposes. They are tubeless UST rims, making an excellent seal without the need of a tube.

The hubs feature Mavic’s TS-2 alloy freehubs matched to sealed cartridge bearings, making maintenance easy. The bodies are alloy for weight savings as are the axles. The rear wheels come supplied with 12x142mm adaptors, while the front can be converted to quick release with adaptors available separately. These wheels are also available in Boost spacing (front: 15x110mm/rear: 12x148mm) and can be converted to SRAM’s XD Driver, available separately.

Matching up to the hubs are straight pull steel spokes. These add rigidity and strength. The weak point of normal J-bend spokes is removed with the use of straight-pull spokes, allowing for less spokes to be used and keeping the wheels lightweight. There are 24 spokes front and rear with a 2 cross pattern for both wheels. The spokes are bladed for even more rigidity and double butted, giving an even lighter weight.

Mavic’s Crossride Tubeless Quest tyres are balance speed and traction. The 66TPI casing is robust, but not hefty and features well spaced knobs for predictable handling and excellent grip, while keeping rolling resistance to a minimum.

Key Features:

• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don't exceed 120kg, bike included
• Recommended tyre sizes: 35 mm to 69 mm (1.4" to 2.7")
• Weight Front 27.5"875g
• Weight Pair 27.5"1870g
• Weight Rear 27.5"995g
• Weight Tyre 27.5” x 2.4780g
• Mavic Crossride UST Quest WTS MTB Wheels are available with 0% APR finance

Rims

• Material: S6000 Aluminium
• Joint: sleeved
• Drilling: traditional with H2 reinforcement
• Valve hole diameter: 8,5 mm with pop off reducer
• Tyre: UST Tubeless and tubetype
• Internal width: 21 mm
• ETRTO size 27.5": 584x21C

Spokes

• Material: steel
• Shape: straight pull, bladed, double butted
• Nipples: steel, ABS
• Count: 24 front and rear
• Lacing: front and rear crossed 2

Hubs

• Front and rear bodies: aluminium
• Axle material: aluminium
• Sealed cartridge bearings
• Freewheel: TS-2 alloy

Tyre

• Crossride Tubeless Quest
• UST Tubeless Ready
• Front and Rear Tread: Single Compound
• Casing: 66 TPI
• Dimension 27.5": 2.4

Versions

• Colour: Black only
• Disc standard : 6 Bolts only
• Hub width : Boost (front 110, rear 148) or Non-Boost (front 100, rear 135/142)

Compatibility

• Freewheel: Shimano/Sram, convertible to XD with optional driver body
• Front axle: convertible from 15mm thru axle to Quick Release with optional adapters
• Rear axle: 12mm thru axle, convertible to Quick Release with optional adapters (not available in Germany)

Delivered with

• UST valve and accessories
• Tubeless rim tape
• User guide

Occasionally, without notice, manufacturers change product design and/or specifications.
