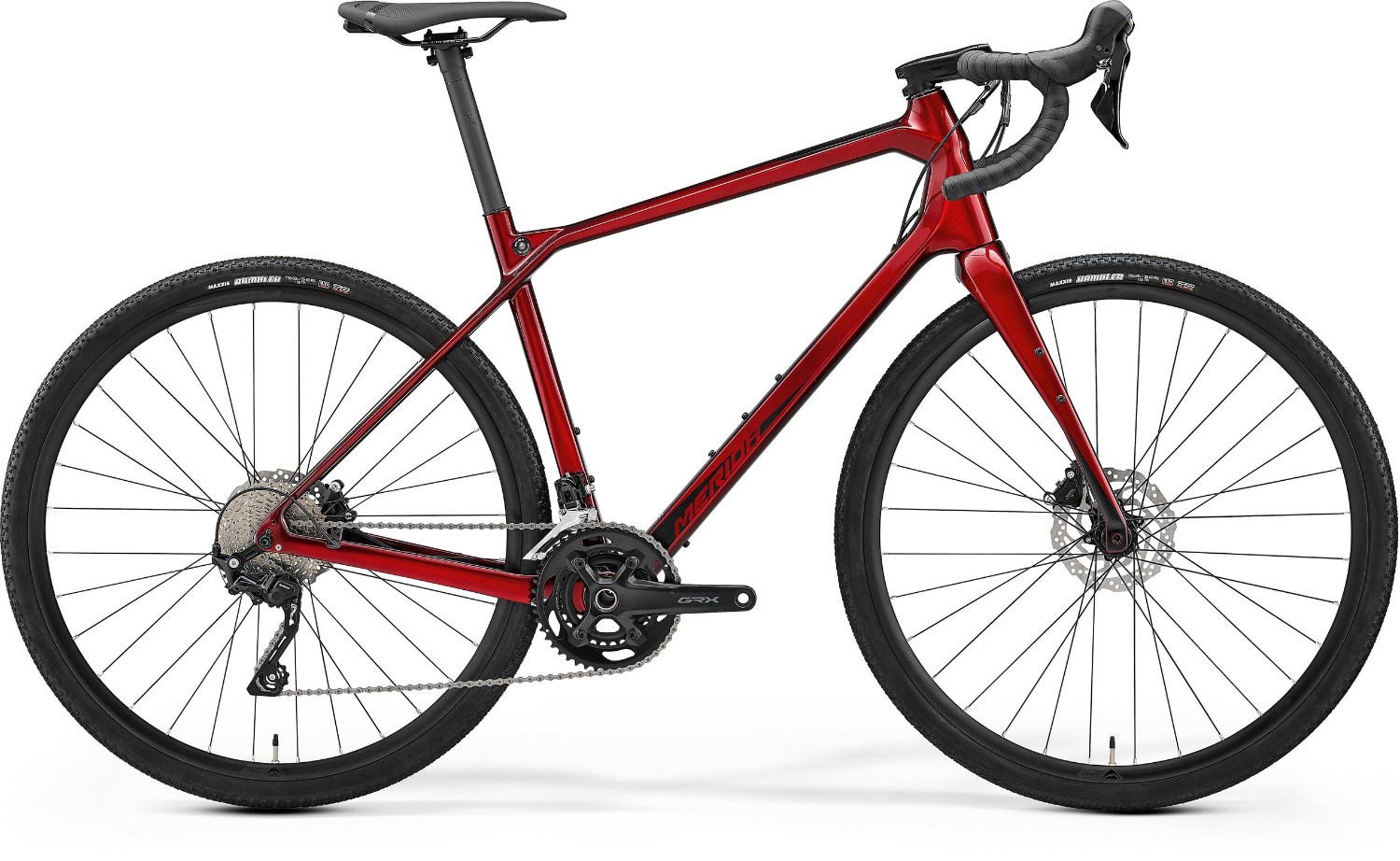

Merida Silex 4000 2023 - Gravel Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | CF2 carbon, gravel geometry for stable but nimble handling. Tapered head tube and 12 mm bolt though axles for stiffness and steering precision. Internal cable routing, Max tyre - 700x38c or 650bx45c |
| Fork | Silex CF2; Full carbon; tapered steerer, 100 x 12mm axle standard; Max. tyre size: 700 x 38c / 650b x 45c |
| Headset | Silex Neck |
| Stem | Merida Expert CW; aluminium; 31.8mm diameter; -8 degree rise - Stem length: 80mm (all sizes) |
| Bars | Merida Expert GR; aluminium; Width: 400mm (XS-S), 420mm (M), 440mm (L/XL) |
| Front Brake | Shimano GRX400; hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
| Rear Brake | Shimano GRX400; hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
| Brake Lever | Shimano GRX400 |
| Front Mech | Shimano GRX400 |
| Rear Mech | Shimano GRX400 |
| Shifters | Shimano GRX400 |
| Speed | 20 |
| Rims | Merida Comp SL; 17mm inner rim width; 22mm depth; Aluminium |
| Front Hub | VP CLK170F; 100x12mm; 32 spokes; Center lock |
| Rear Hub | VP CLK270R; 142x12mm; 32 spokes; Center lock. With Merida Expert SL axle; including removable lever; 6/4mm allen key |
| Spokes | Black stainless |
| Front Tyre | Maxxis Rambler; 700 x 38c; Kevlar bead, folding; TR; EXO |
| Rear Tyre | Maxxis Rambler; 700 x 38c; Kevlar bead, folding; TR; EXO |
| Seat Post | Merida Expert CC; carbon; 30.9mm diameter; in-line |
| Saddle | Merida Comp SL; V-mount; including Merida minitool |
| Chainset | Shimano GRX600; 46-30 tooth chainset. Crank length: 170mm (XS,S), 172.5mm (M), 175mm (L,XL) |
| Bottom Bracket | FSA 386-BB30 PF6000 [SMN FC] |
| Chain | KMC X10 |
| Cassette | Shimano CS-HG50 11-36 teeth |
| Pedals | Resin Platform |
See the table below to find the right size.
Gravel Bike Bike Sizing
XXS (44)
4'8"
5'1"
XS (48)
5'1"
5'4"
S (51)
5'4"
5'7"
M (54)
5'7"
5'10"
L (56)
5'10"
6'0"
XL (58)
6'0"
6'3"
XXL (60)
6'3"
6'5"
XXXL (62)
6'5"
6'9"
Read our bike size guide for more information on sizing.
|
Height |
Size |
|||||||
|
4’8” / 143cm |
44 (XXS) |
|
|
|
|
|
|
|
|
4’9” / 145cm |
44 (XXS) |
|
|
|
|
|
|
|
|
4’10” / 148cm |
44 (XXS) |
|
|
|
|
|
|
|
|
4’11” / 150cm |
44 (XXS) |
|
|
|
|
|
|
|
|
5’0” / 152cm |
44 (XXS) |
|
|
|
|
|
|
|
|
5’1” / 155cm |
44 (XXS) |
48 (XS) |
|
|
|
|
|
|
|
5’2” / 158cm |
|
48 (XS) |
|
|
|
|
|
|
|
5’3” / 160cm |
|
48 (XS) |
|
|
|
|
|
|
|
5’4” / 163cm |
|
48 (XS) |
51 (S) |
|
|
|
|
|
|
5’5” / 165cm |
|
|
51 (S) |
|
|
|
|
|
|
5’6” / 168cm |
|
|
51 (S) |
|
|
|
|
|
|
5’7” / 170cm |
|
|
51 (S) |
54 (M) |
|
|
|
|
|
5’8” / 173cm |
|
|
|
54 (M) |
|
|
|
|
|
5’9” / 175cm |
|
|
|
54 (M) |
|
|
|
|
|
5’10” / 178cm |
|
|
|
54 (M) |
56 (L) |
|
|
|
|
5’11” / 180cm |
|
|
|
|
56 (L) |
|
|
|
|
6’0” / 183cm |
|
|
|
|
56 (L) |
58 (XL) |
|
|
|
6’1” / 185cm |
|
|
|
|
|
58 (XL) |
|
|
|
6’2” / 188cm |
|
|
|
|
|
58 (XL) |
|
|
|
6’3” / 191cm |
|
|
|
|
|
58 (XL) |
60 (XXL) |
|
|
6’4” / 193cm |
|
|
|
|
|
|
60 (XXL) |
|
|
6’5” / 196cm |
|
|
|
|
|
|
60 (XXL) |
62 (XXXL) |
|
6’6” / 198cm |
|
|
|
|
|
|
|
62 (XXXL) |
|
6’7” / 201cm |
|
|
|
|
|
|
|
62 (XXXL) |
|
6’8” / 203cm |
|
|
|
|
|
|
|
62 (XXXL) |
|
6’9” / 205cm |
|
|
|
|
|
|
|
62 (XXXL) |
Read our bike size guide for more information on sizing.
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
Merida Silex 4000 2023 - Gravel Bike
The stunning colour of this gravel bike compliments its other features: speed, smoothness over gravel and the simplicity of the groupset. The ten speed is better than expected mainly because of the 36t low gear. I get up a renown local off- road track called Cardiac more easily than on my 40/42 one-by. The carbon frame is a dream to ride. Some reviews have commented on the "ugly" long head tube, but it doesn't bother me. There's a ergonomic slight sweep back on the bars which suits me well. Highly recommended.
