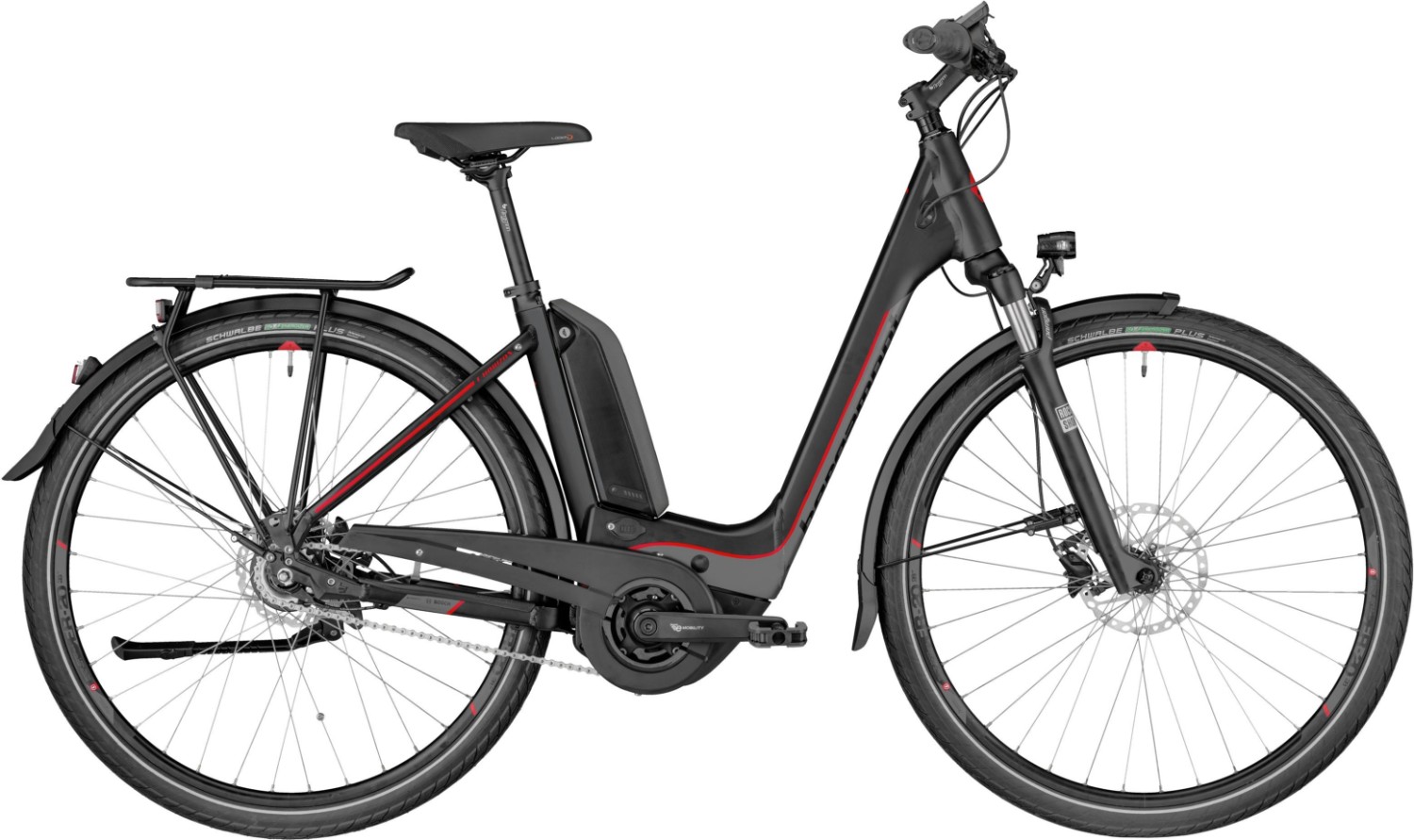

Bergamont E-Horizon N8 FH 400 Wave 2018 - Electric Hybrid Bike

Out of Stock Sorry, you missed it. But you still have options...

Recommended alternatives We've found some items that may interest you...

Top Rated

Best Deals

New in Electric Urban Bikes

Archive Product Details Comparing? Here's the info from the out of stock item

Product Description

The next level of evolution of the E-Horizon Wave Platform is setting benchmarks for integration, design and riding culture. At its core is the innovative, three-part box flange concept. It allows the new Bosch Active Line Drive Unit to be completely integrated into the frame design. No compromises when it comes to handling, safety and riding characteristics: the new flange concept creates space for a wider step-through, and at the same time, the frame construction is extremely torsion-resistant while also being exceptionally comfortable. The weight distribution of the drive unit and the battery, which is balanced to the greatest degree possible, ensures that this step-through bicycle has outstanding stability.

Universal Chassis Concept
We always made an extra effort when creating frame geometries and features to achieve superior riding capabilities. Using this knowledge we created a universal e-bike frame platform that perfectly integrates modern batteries and drive units.

Clever Enginge Cover
We always aim to make what is good even better. This led us to design our very own, unique motor housing and bash guard for our e-bikes.

E.Drive System:
  • Motor: Bosch Drive Unit Active Line Plus, 250W, 36V, max. 25 km/h
  • Display: Bosch Intuvia
  • Battery: Bosch 36 V Li Ion, 400 Wh, frame-type
  • Range: 400Wh: 45-175km, depending on assistance mode and riding conditions
  • Assistance Modes: Eco (+40%), Tour (+100%), Sport (+150%), Turbo (+225%), Walk Assist (-5km/h)

Specification

Frame: 28" (26") E-bike, AL-6061 lite alloy custom tubing, T4/T6 heat treated, hydro fluid forming, single butted, 3D-dropout, tapered headtube, internal cable routing, E-bike-comfort geometry
Fork: Rock Shox Paragon Silver, 1 1/8", 63mm, lockout
Headset: FSA NO.57SC-1, A-Headset, semi integrated, tapered
Stem: BGM E-Bike, adjustable stem
Bars: BGM Pro, riser bar
Front Brake: Shimano BR-M315, hydraulic disc brake, SM-RT10 rotor: 180mm
Rear Brake: Shimano BR-M315, hydraulic disc brake, SM-RT10 rotor: 160mm
Brake Lever: Shimano BL-M315, hydraulic disc brake
Shifters: Shimano Nexus, SL-8S31
Speed: 8
Rims: Mach-1 ER-20, disc, eyelets
Front Hub: Shimano HB-M3050, center lock, disc, quick release
Rear Hub: Shimano Nexus, SG-C6001-8, freehub
Spokes: Sapim Leader, stainless, silver
Front Tyre: Schwalbe Energizer Plus, reflective stripe, 40-622 (47-559)
Rear Tyre: Schwalbe Energizer Plus, reflective stripe, 40-622 (47-559)
Seat Post: BGM Pro, 2-bolt design
Chainset: BGM Pro, 38t
Bottom Bracket: Bosch, Isis
Chain: KMC Z610HXRB, antirust, heavy duty
Cassette: Shimano, 20t
Pedals: Wellgo C128
Weight: 25.50kg

Occasionally without notice, manufacturers sometimes change product specifications.
