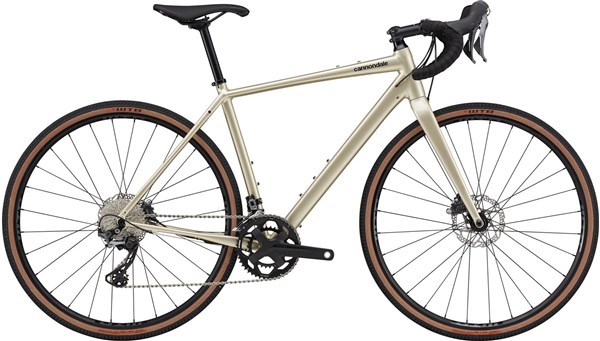

Cannondale Topstone 0 2021 - Gravel Bike
Explore further. Ride freer.
A capable, versatile gravel road bike. Built for chasing horizons, exploring routes less travelled or accelerating your commute.
Key Features:
- Full Carbon Fork
A full carbon fork with a tapered steerer and 12mm thru-axles delivers a light, comfortable and precise-steering front end.
- OutFront Steering Geometry
Keeps the steering light and agile, while positioning the wheel further in front of the rider for stability and confidence on rougher stuff. Plus it reduces the chance of toe overlap on smaller sizes.
- Dropper Ready
Built to accept an internally-routed 27.2 dropper seatpost, which shouldn’t really be a surprise on a bike that's this off-road capable.
- Removable Fender Bridge
Bolts on when you want fenders, disappears when you don't.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | SmartForm C2 Alloy, 12x142 thru-axle, tapered headtube, flat mount disc, StraightShot internal cable routing, multiple gear/bottle mounts |
Fork | BallisTec Full Carbon, 1-1/8" to 1-1/4" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru axle |
Headset | 1-1/4" lower bearing, 25mm top cap |
Stem | Cannondale 3, 6061 Alloy, 31.8, 7° |
Bars | Cannondale 3, butted 6061 Alloy, 16 deg flare drop |
Front Brake | Shimano GRX 800, hydraulic disc, 160mm RT54 rotors |
Rear Brake | Shimano GRX 800, hydraulic disc, 160mm RT54 rotors |
Brake Lever | Shimano GRX 800 hydraulic disc |
Front Mech | Shimano GRX 800, braze-on |
Rear Mech | Shimano GRX 810, Shadow RD+ |
Shifters | Shimano GRX 800, 11-speed |
Speed | 22 |
Rims | WTB KOM Light i23 TCS, 28h, tubeless ready |
Front Hub | Formula cartridge bearing, Centerlock, 12x100mm |
Rear Hub | Formula cartridge bearing, Centerlock, 12x142mm |
Spokes | Stainless Steel, 14g |
Front Tyre | WTB Riddler TCS Light, 700 x 37c, tubeless ready |
Rear Tyre | WTB Riddler TCS Light, 700 x 37c, tubeless ready |
Seat Post | Cannondale 3, 6061 Alloy, 27.2 x 350mm |
Saddle | Fabric Scoop Radius Sport, steel rails |
Chainset | FSA Omega AGX+ Alloy, 46/30 |
Bottom Bracket | Shimano BBRS500 |
Chain | KMC X11, 11-speed |
Cassette | Shimano 105, 11-34, 11-speed |
Cannondale Topstone Alloy 2021 Size Chart
Frame Size |
Height (cm) |
Height (Feet) |
Small |
160 – 170 |
5’ 3” – 5’ 7” |
Medium |
170 – 178 |
5’ 7” – 5’ 10” |
Large |
178 – 188 |
5’ 10” – 6’ 2” |
X Large |
188 – 196 |
6’ 2” – 6’ 5” |
Topstone Alloy 2021 Geometry
|
X Small |
Small |
Medium |
Large |
X Large |
Seat Tube Length |
41cm |
45.8cm |
50.5cm |
55.3cm |
60cm |
Top Tube Horizontal |
52.5cm |
54.4cm |
56.1cm |
57.9cm |
69.6cm |
Head Tube Angle |
70° |
71° |
71° |
71° |
71° |
Seat Tube Angle |
73.1° |
73.1° |
73.1° |
73.1° |
73.1° |
Standover |
70.3cm |
74.4cm |
78.4cm |
82.5cm |
86.3cm |
Head Tube Length |
8.9cm |
11.8cm |
14.9cm |
18.2cm |
21.4cm |
Wheelbase |
101.1cm |
102.2cm |
104cm |
106cm |
107.8cm |
Front Centre |
59.3cm |
60.3cm |
62.1cm |
64.1cm |
65.9cm |
Chainstay Length |
43cm |
43cm |
43cm |
43cm |
43cm |
Bottom Bracket Drop |
7.5cm |
7.5cm |
7.5cm |
7.5cm |
7.5cm |
Bottom Bracket Height |
28.4cm |
28.4cm |
28.4cm |
28.4cm |
28.4cm |
Fork Rake |
5.5cm |
5.5cm |
5.5cm |
5.5cm |
5.5cm |
Trail |
7.2cm |
6.5cm |
6.5cm |
6.5cm |
6.5cm |
Stack |
51.8cm |
54.9cm |
57.9cm |
61.0cm |
64.0cm |
Reach |
36.8cm |
37.7cm |
38.5cm |
39.4cm |
40.2cm |
What size frame do I need if I am between sizes? - read here
