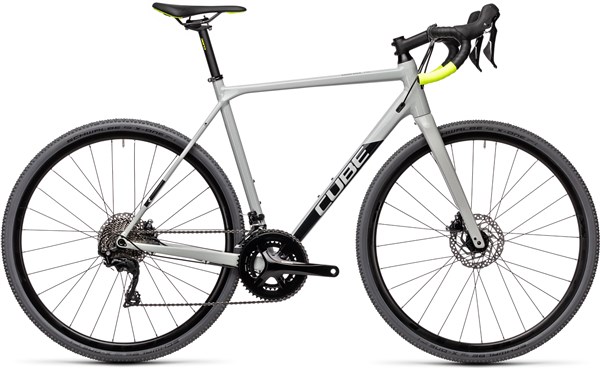

Cube Cross Race Pro 2021 - Cyclocross Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aluminium Superlite, Double Butted, Advanced Mechanical Forming, Smooth Welded, Internal Cable Routing, Flat Mount Disc, 12x142mm, AXH |
| Fork | CUBE Cross Race Disc, Full Carbon, 1 1/8" - 1 1/4" Tapered, Flat Mount |
| Headset | VP Z-t, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Integrated 1 1/4" |
| Stem | CUBE Performance Stem SL, 31.8mm |
| Bars | CUBE Compact Race Bar |
| Front Brake | Shimano 105 BR-R7070, Hydr. Disc Brake, Flat Mount (160/160) |
| Rear Brake | Shimano 105 BR-R7070, Hydr. Disc Brake, Flat Mount (160/160) |
| Front Mech | Shimano 105 FD-R7000, 31.8mm Clamp |
| Rear Mech | Shimano 105 RD-R7000-DGS, 11-Speed |
| Shifters | Shimano 105 ST-R7020 |
| Speed | 22 |
| Rims | CUBE RA 0.8 CX |
| Front Tyre | Schwalbe X-One Allround, Performance Kevlar, 33-622 |
| Rear Tyre | Schwalbe X-One Allround, Performance Kevlar, 33-622 |
| Seat Post | CUBE Performance Post, 27.2mm |
| Saddle | Natural Fit Venec Lite |
| Chainset | Shimano FC-RS510, 50x34T, 170mm (XS), 172.5mm (S/M), 175mm (L/XL) |
| Chain | Shimano CN-HG601-11 |
| Cassette | Shimano 105 CS-HG700, 11-34T |
| Weight | 10.1 |
Cube Cross Race 2021 Sizing
|
Frame Size |
Height (cm) |
Height (feet) |
|
50 |
165 - 170 |
5’5” – 5’7” |
|
53 |
170 - 175 |
5’7” – 5”9” |
|
56 |
175 - 180 |
5’9” – 5’11” |
|
58 |
180 – 185 |
5’11” – 6’1” |
|
61 |
185 - 190 |
6’1” – 6’3” |
Cube Cross Race 2021 Geometry
|
|
50 |
53 |
56 |
58 |
62 |
|
Seat tube (mm) |
500 |
530 |
560 |
580 |
610 |
|
Seat tube centre to centre (mm) |
460 |
490 |
520 |
540 |
570 |
|
Top tube horizontal (mm) |
518 |
536 |
554 |
570 |
588 |
|
Seat tube angle (mm) |
75 |
74 |
73.5 |
73 |
73 |
|
Head tube angle (mm) |
70.5 |
70.8 |
72 |
72.5 |
73 |
|
Chainstay length (mm) |
430 |
430 |
430 |
430 |
430 |
|
Head tube length (mm) |
115 |
140 |
160 |
180 |
205 |
|
Wheelbase (mm) |
1013 |
1019 |
1021 |
1027 |
1040 |
|
BB height to hub (mm) |
-68 |
-68 |
-68 |
-68 |
-68 |
|
Standover (mm) |
762.1 |
789 |
816 |
835 |
862 |
|
Reach (mm) |
376 |
377 |
383 |
387 |
397 |
|
Stack (mm) |
530 |
555 |
578 |
599 |
625 |
|
Wheelsize |
28 |
28 |
28 |
28 |
28 |
Cube Cross Race C:62 2021 Geometry
|
|
50 |
53 |
56 |
58 |
62 |
|
Seat tube (mm) |
470 |
500 |
530 |
550 |
580 |
|
Seat tube centre to centre (mm) |
459 |
489 |
515 |
538 |
568 |
|
Top tube horizontal (mm) |
525 |
539 |
558 |
575 |
590 |
|
Seat tube angle (mm) |
75 |
74.5 |
73.5 |
73 |
73 |
|
Head tube angle (mm) |
71 |
71.5 |
72 |
72 |
72.5 |
|
Chainstay length (mm) |
422 |
422 |
422 |
422 |
422 |
|
Head tube length (mm) |
107 |
130 |
152 |
172 |
195 |
|
Wheelbase (mm) |
1009 |
1016 |
1020 |
1033 |
1043 |
|
BB height to hub (mm) |
-64 |
-64 |
-64 |
-64 |
-64 |
|
Standover (mm) |
762.1 |
789 |
816 |
835 |
862 |
|
Reach (mm) |
387 |
390 |
393 |
398 |
406 |
|
Stack (mm) |
520 |
544 |
566 |
585 |
609 |
|
Wheelsize |
28 |
28 |
28 |
28 |
28 |
What size frame do I need if I am between sizes? - read here
