DMR Vault Pedal Service Kit - Pair

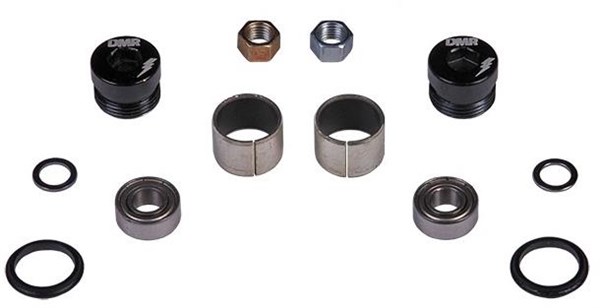

DMR Vault Pedal Service Kit includes

• 2x Sealed bearing number: 686ZZ - 6mm Ø ID (Internal Diameter) 13mm Ø OD (Over All Diameter) 5mm Width
• 2x Plain bearing (bushing) 12mm Ø ID (Internal Diameter) 14mm Ø OD (Over All Diameter) 12mm Width
• Nuts: 1x M5x0.75 5 deep right hand thread (left hand pedal) (to be fitted with a 8mm socket) / 1x M5x0.75 5 deep left hand thread (right hand pedal) (to be fitted with a 8mm socket)
• 2x End cap: M14x1x11
• 2x Washer: 6mm Ø ID (Internal Diameter) 9mm Ø OD (Over All Diameter) 1mm Width
• 2x Internal Rubber Seals

Occasionally, without notice, manufacturers change product design and/or specifications.
