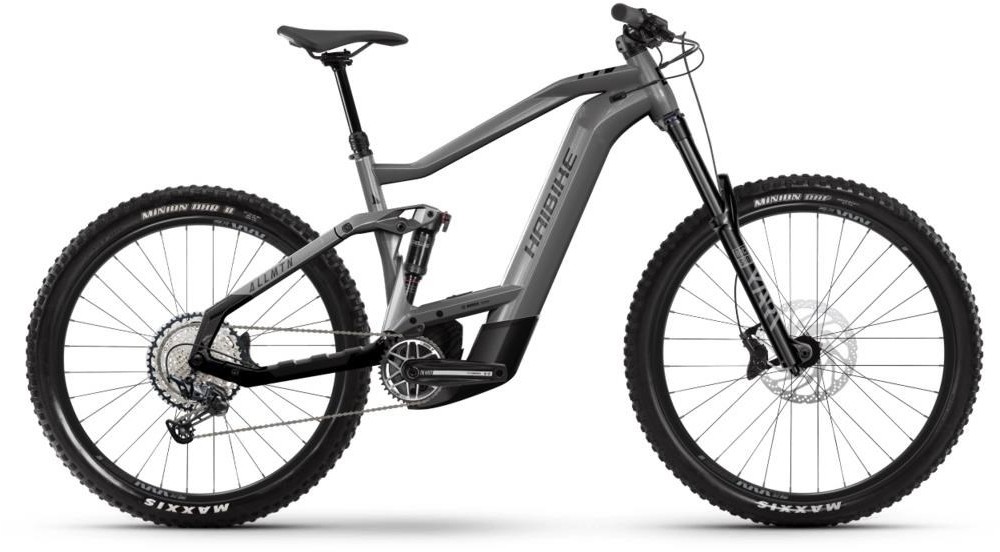

Haibike AllMtn 5 - Nearly New- M 2023 - Electric Mountain Bike
The Haibike AllMtn 5 can tackle every challenge the mountain throws at you. With its aluminium frame featuring 160mm of travel, paired with a RockShox Yari RC fork and Deluxe Select Plus rear shock, this bike offers smooth performance on the most demanding trails.
- Frame: Aluminium construction with 160mm travel for durability and agility on the trails.
- Front Suspension: RockShox Yari RC fork with 160mm travel for smooth and controlled handling.
- Rear Suspension: RockShox Deluxe Select Plus shock provides additional support and comfort.
- Drivetrain: Shimano SLX components ensure reliable shifting and performance in any terrain.
- Brakes: Shimano MT420 hydraulic disc brakes offer exceptional stopping power and control.
- Wheels: WTB ST i30 TCS rims paired with Shimano MT400-B front hub and Shimano MT410-B rear hub for reliable performance.
- Other Standout Feature: Bosch PowerTube 750Wh battery for long-lasting rides.
- 0% APR finance available.
- Motor: Bosch Performance CX Smart System with 250W power and 85Nm torque for powerful assistance on climbs.
- Battery: Bosch PowerTube with 750Wh capacity for extended range and reliability.
- User Interface: Bosch Kiox 300 + LED remote for intuitive control and monitoring of e-bike functions.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | aluminium, thru-axle M12 (1.75) x 148mm, disc brake Post Mount, Travel: 160mm |
| Fork | RockShox Yari RC, air, Travel: 160mm, Aluschaft 1 1/8 - 1 1/2'' tapered, 15 x 110mm thru-axle Boost |
| Rear Shock | RockShox Deluxe Select Plus, air |
| Headset | A-Head Tapered |
| Stem | Haibike Components TheStem ++, A-head, Bar bore: 31.8mm |
| Bars | Haibike Components TheBar +++ 780mm |
| Front Brake | Shimano MT420, aluminium, 203mm |
| Rear Brake | Shimano MT420, aluminium, 203mm |
| Brake Lever | Shimano MT401, aluminium |
| Rear Mech | Shimano SLX M7100, 12-speed |
| Shifters | Shimano Deore M6100, trigger switch |
| Speed | 12 |
| Rims | WTB ST i30 TCS, double-walled rim |
| Front Hub | Shimano MT400-B |
| Rear Hub | Shimano MT410-B |
| Spokes | Sapim Race, black |
| Front Tyre | Maxxis, Minion DHF II, 63-622, 29" x 2.5" |
| Rear Tyre | Maxxis, Minion DHF II, 63-622, 29" x 2.5" |
| Seat Post | Dropper-Post Remote, telescope, 34.9mm, aluminium |
| Saddle | Selle Royal Vivo |
| Chainset | steel, 36 |
| Bottom Bracket | Integrated |
| Chain | Shimano CN-M6100 |
| Cassette | Shimano M6100, 10-51 teeth |
| Pedals | Freeridepedal aluminium, mit Reflektor |
| Battery Size (WH) | Bosch, PowerTube, 750 Wh |
| Motor | Bosch, Performance CX Smart System, 250W, 85 Nm |
| User Interface | Bosch, Kiox 300 + LED Remote |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
