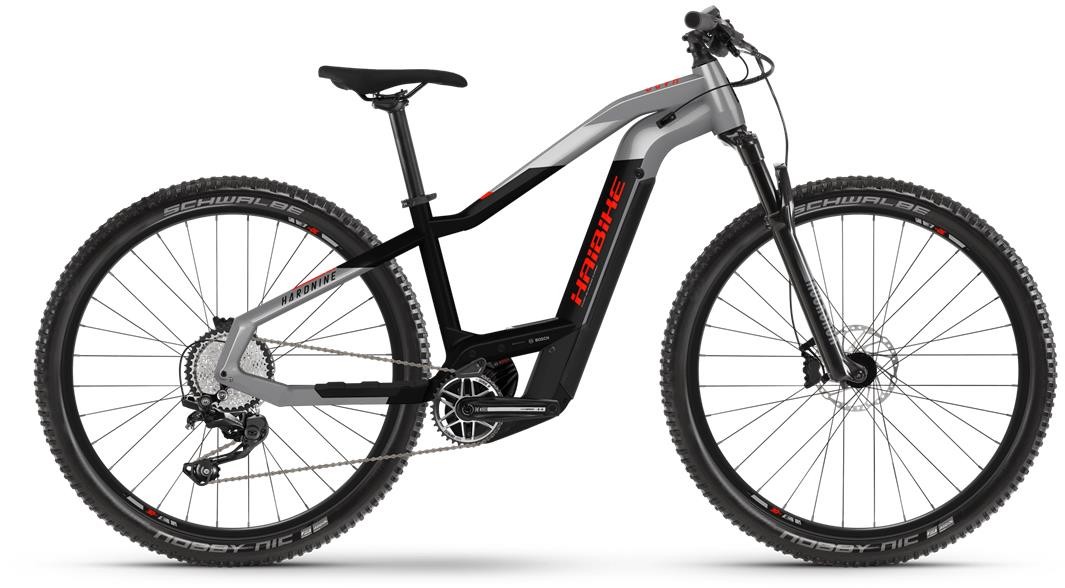

Haibike HardNine 9 2023 - Electric Mountain Bike
Long and sporty rides in easy terrain are exactly your thing? Then you should go on tour with the new HardNine 9! The new extremely powerful 4th generation Bosch Performance CX motor takes on every climb with ease. With the Range Extender you have the possibility to increase your range from 625Wh to a total of 1.125Wh capacity. So you alone decide when your tour is over. Thanks to the Modular Rail System, you can mount accessories such as a water bottle or a frame bag for longer tours. With this 29" hardtail you will definitely expand your horizons!
Key Features
- Frame material - Aluminium
- Drive unit - Bosch Performance CX GEN4, 85Nm, 25km/h
- Battery - Bosch PowerTube 625Wh
- Fork - RockShox 35 Silver, Travel: 120mm
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | aluminium 6061, Steckachse M12 (1.00) x 148mm, disc brake Post Mount, Travel: 120mm |
Fork | RockShox 35 Silver, steel spring, Travel: 120mm, Aluschaft 1 1/8 - 1 1/2'' tapered, 15 x 110mm thru-axle Boost |
Headset | A-Head Tapered |
Stem | Haibike Components TheStem ++, A-head, Bar bore: 31.8mm, 7˚ |
Bars | Haibike Components TheBar + Topflat 720mm |
Front Brake | Shimano MT420, aluminium, 203mm / Shimano MT420, aluminium, 180mm |
Rear Brake | Shimano MT420, aluminium, 203mm / Shimano MT420, aluminium, 180mm |
Brake Lever | Shimano MT401, aluminium |
Rear Mech | Shimano Deore M5100, 11-speed |
Shifters | Shimano Deore M5100, trigger switch |
Speed | 11 |
Rims | Rodi Tryp 30, eyed, double-walled rim, aluminium |
Front Hub | Shimano MT400-B |
Rear Hub | Shimano MT400-B |
Spokes | Sapim Leader, black |
Front Tyre | Schwalbe Nobby Nic Evo SnakeSkin, 65-622 |
Rear Tyre | Schwalbe Nobby Nic Evo SnakeSkin, 65-622 |
Seat Post | Haibike Components TheSeatpost ++, patent, 34.9mm, aluminium |
Saddle | XLC MTB |
Chainset | Haibike Components, The Crank ++, Aluminium, Steel, 38 teeth |
Bottom Bracket | Integrated in the motor |
Chain | KMC X11 |
Cassette | Shimano HG5100 (11-51T) |
Pedals | Freeridepedal aluminium, mit Reflektor |
Battery Size (WH) | Bosch PowerTube 625Wh |
Motor | Bosch Performance CX GEN4, 250W, 85Nm, 25km/h |
User Interface | Bosch Purion |
Haibike HardNine 2021 Size Chart
Size |
Height (cm) |
Height (Inches) |
S / 40cm |
150 – 160 |
4’11” – 5’3” |
M / 44cm, 45cm |
160 – 175 |
5’3” – 5’9” |
L / 48cm, 50cm |
175 – 185 |
5’9” – 6’1” |
XL / 52cm, 55cm |
185 - 195 |
6’1” – 6’5” |
What size frame do I need if I am between sizes? - read here
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Haibike HardNine 9 2023 - Electric Mountain Bike.
This product is no longer available.
