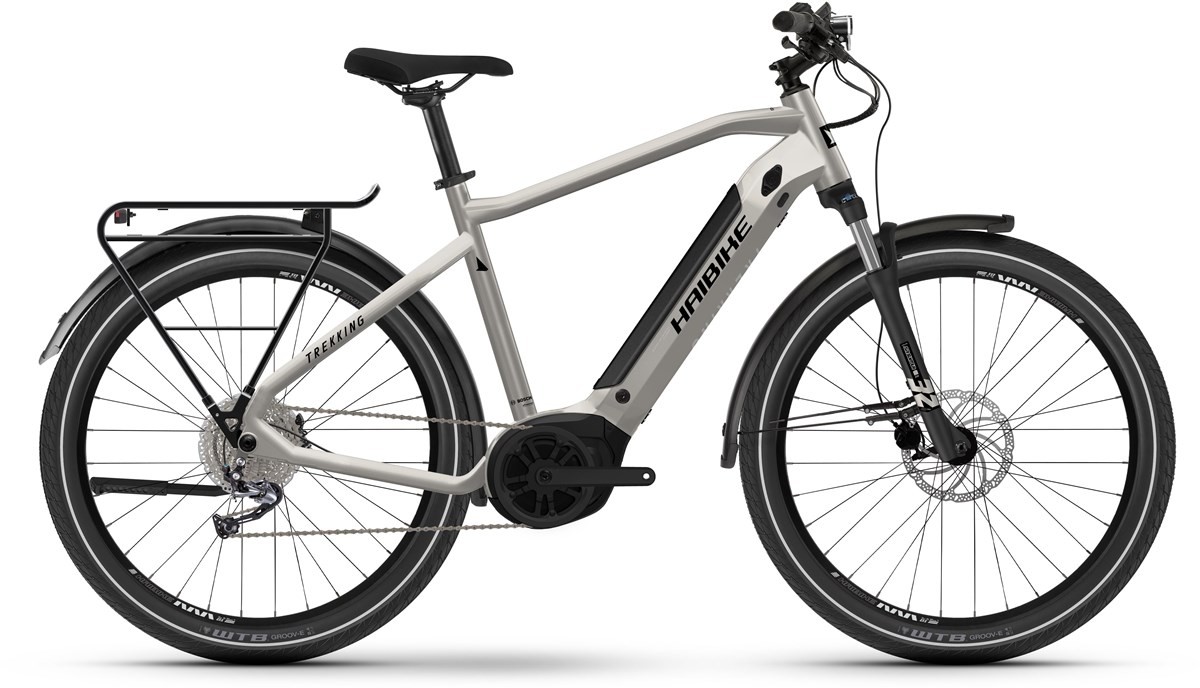

Haibike Trekking 3 High - Nearly New – L 2023 - Electric Hybrid Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | aluminium, Steckachse M12 (1.00) x 148mm, disc brake Post Mount |
| Fork | SR Suntour XCM ATB HLO, steel spring, Travel: 65mm, aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost |
| Headset | A-Head Tapered |
| Stem | XLC A-Head, A-head, Bar bore: 31.8mm |
| Bars | XLC 720mm |
| Front Brake | Alhonga HT474, aluminium, 180mm |
| Rear Brake | Alhonga HT474, aluminium, 180mm |
| Brake Lever | Alhonga HT474, aluminium |
| Rear Mech | Shimano Alivio M3100, 9-speed |
| Shifters | Shimano Alivio M3100, trigger switch |
| Speed | 9 |
| Rims | Schürmann Yak25, eyed, double-walled rim, aluminium |
| Front Hub | Haibike TheHub ++ |
| Rear Hub | Haibike TheHub ++ |
| Spokes | Sapim Leader, black |
| Front Tyre | WTB, Groov-E, 62-584, 27.5" x 2.4" |
| Rear Tyre | WTB, Groov-E, 62-584, 27.5" x 2.4" |
| Seat Post | XLC, patent, 31.6mm, aluminium |
| Saddle | Selle Royal Wave |
| Chainset | steel, 38 |
| Bottom Bracket | Integrated |
| Chain | KMC e9S |
| Cassette | Shimano HG200, 11-36 teeth |
| Pedals | VP E461 aluminium, mit Reflektor |
| Battery Size (WH) | Bosch, PowerTube, 500 Wh |
| Motor | Bosch Performance Line Smart System, 250W, 75Nm, 25km/h |
| User Interface | Intuvia 100 + LED Remote |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Haibike Trekking 3 High - Nearly New – L 2023 - Electric Hybrid Bike.
This product is no longer available.
