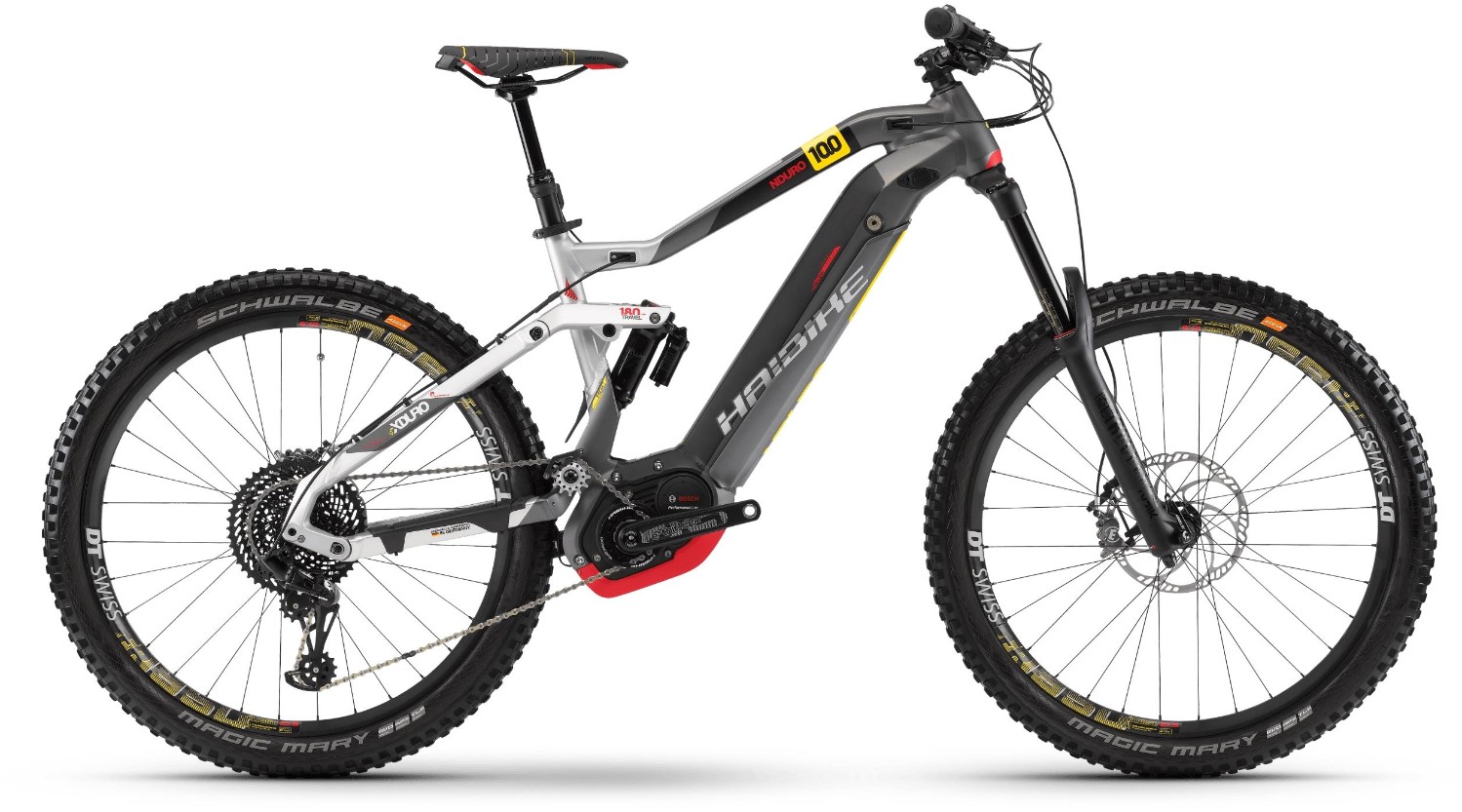

Hard charging eMTB performance. The Haibike xDuro nDuro 10.0 is a full suspension electric bike that is built for riding the most challenging enduro mountain bike trails and looping effortlessly back to the trailhead for the next run.
The XDURO Nduro series offers 180mm of travel combined with sporty geometry, and a build capable of handling the toughest terrain. The bikes come with the option of either a Yamaha PW-X or Bosch Performance CX system and a range of component specs.
The Haibike SkidPlate:
Especially eMTBs often suffer from impacts or stone chipping which damage the low-situated motor severely. Therefore, we were the first manufacturer to introduce the SkidPlate back in 2012, a protection element which protects the bottom side of the motor.
Bottom side protection
Here the concept of a 'sacrifice part' applies: Similar to a helmet, the SkidPlate absorbs impact forces by deformation or destruction which would otherwise damage the significantly more expensive motor.
Plastic as ideal raw material
This is why we also use a special, shock-resistant plastic. This material conducts the incoming forces very well but stays dimensionally stable even under severe deformation at the same time compared to other materials which do not switch back to their original shape after deformation. The production in the corresponding colour perfectly hide scratches and smaller damage. If required, the SkidPlate can simply and cheaply be exchanged.
The Haibike IntegratedMotor concept:
The motor is the technological heart and optically the basic feature of an eBike. Thanks to the GravityCasting Interface, we are able to slightly remodel the motor and as a result, get rid of the mounting plates. Thus, we reduce the construction space to a minimum and the optical volume to a fraction of its original size.
The SkidPlate is useable, not only from a technological perspective, it optically also surrounds the motor. Visually, this results in a better frame integration. This is the basis for a perfectly fitting motor which does not appear like a foreign component like in its standard version, but rather becomes the natural centre of the ePerformance bikes.
The Haibike SES system:
Bosch motors pose two challenges for engineers at once when developing an efficient chassis: its construction size and its relatively small sprocket. Usually, the chainstay bearing has to be installed close to the point of contact between chain and sprocket. Due to the small size, this would result in the bearing running directly through the motor which is, of course, impossible. Therefore, we created a simple but efficient concept: the Haibike Sprocket Equalizing System (S.E.S).
For a perfect chassis:
First of all, we move the chainstay bearing up. Thus, we achieve an optimized wheel lifting effect (the bike moves away from the obstacle) on the one hand, and on the other a short wheelbase (as the bearing point is not located between motor and rear wheel).
A pulley prevents influences on the drive unit
In order to avoid the inevitable influence of the chassis on the chain during suspension, we axially place the pulley directly on the chainstay. Additionally, we integrated a chain guiding on the pulley. Together with the chain guiding on the Haibike sprocket, a chain drop is almost impossible.
The Haibike Intube Battery Concept (IBC):
The new Bosch PowerTube battery enables a high integration, a beautiful shape and functionality. It is available in many of our models.
The Modular Rail System (MRS):
Our patent MRS allows the quick and simple mounting of different equipment on the bike.
A mounting rail is integrated in the upper part of the downtube. You can thus mount for instance bottle cages or bags freely on the bike. Hence, you have all items you need during a ride close at hand. We use a magnetic mounting system provided by FidLock which offers safe hold, easy handling and due to its minimalistic design, you can also use it in very small-framed bikes.
Perfect for long tours:
It only takes a few steps to mount an additional battery (TheRangeExtender) and thus you can reach a significantly higher distance.
The Haibike Gravity Casting interface:
It is the heart of the frame: the motor interface. Here, many crucial functions such as motor mount, rocker and damper mount, as well as the interlocking battery and lower connection. A robust frame is based on a sturdy interface.
Casting technique known from the motorcycle industry
Therefore, since 2010, we use a casting technique which is known from the motorcycle industry, the so-called Gravity-Casting technique. In this process, negative forms made of compressed sand are placed in big forms. These sand forms are then filled with an alloy of alu and zinc and afterwards rotate in precisely calculated axes. Due to gravity, the alloy spreads evenly and results in an even casting thickness.
Light, robust and precise
Thanks to this procedure, extremely robust components can be produced which are then exposed to an extensive X-ray control in order to achieve the casting seal of approval. A subsequent, computer-controlled postprocessing ensures stable precision.
Bosch Performance CX Drive Unit:
The Bosch Performance CX has been specially optimized for sporty use. The motor delivers a constant maximum torque of up to 75 Nm up even to a high speed range.
The motor offers an impressive maximum torque of 75 Nm. The “Direct Flow” technique also guarantees powerful support in the lower cadence levels. Trail Control offers a dynamic power management system, that allows the rider to choose the optimum support level (50-300%) for the terrain they are riding, their riding style, and the distance they are looking to cover. “Shift detection” protects your chain by cutting off the torque from the motor during shifting for smooth gear changes.
Bosch Purion Display:
The new compact display is a combination of remote control and display. Positioned on the left of the handlebars, the display provides key information through a small, easy to read display. Its compactness and location make it ideal for extreme ePerformance bikes whose riders seek a display that is reduced to the essentials and well-protected.
All the main functions can be directly controlled: support level (Off, Eco, Tour, eMTB/Sport, Turbo), switching on and off the eBike light, walk-assist, the current speed, the day trip and the total mileage of the bike, and the range, or how far the current charge level of the battery will last in mileage. A backlight in the display makes all information easy to read even in the dark.
All Tredz bikes are:
In the box with every Tredz bike is:
|Frame:||Aluminium 6061, InTube Battery Concept (IBC), thru-axle M12 (1.75) x 148mm, disc brake Post Mount, Travel: 180mm|
|Fork:||RockShox Lyrik RC, air, Travel: 180mm, aluminium steerer tube 1 1/8" - 1 1/2" tapered|
|Rear Shock:||RockShox Super Deluxe RC3, air|
|Headset:||A-Head Tapered, Cartridge, aluminium|
|Stem:||Haibike Components TheStem +++ Gravity, A-head, Bar bore: 35mm, 0°|
|Bars:||Haibike Components TheBar +++ Gravity 35 780mm|
|Front Brake:||Magura MT7, 203mm, hydraulic disc brakes|
|Rear Brake:||Magura MT7, 180mm, hydraulic disc brakes|
|Brake Lever:||Magura MT7 HC-lever, aluminium|
|Rear Mech:||Sram EX1|
|Shifters:||Sram EX1, trigger switch|
|Rims:||DT Swiss FR1950|
|Front Tyre:||Schwalbe Magic Mary, 65-584, foldable|
|Rear Tyre:||Schwalbe Magic Mary, 65-584, foldable|
|Seat Post:||Kind Shock LEV-DX, telescope, 31.6mm|
|Chainset:||Haibike CNC sprocket black, plus, 16, steel|
|Cassette:||Sram XG899, 11-48 teeth|
|Pedals:||Haibike Freeride-Pedal, aluminium|
Occasionally without notice, manufacturers sometimes change product specifications.
