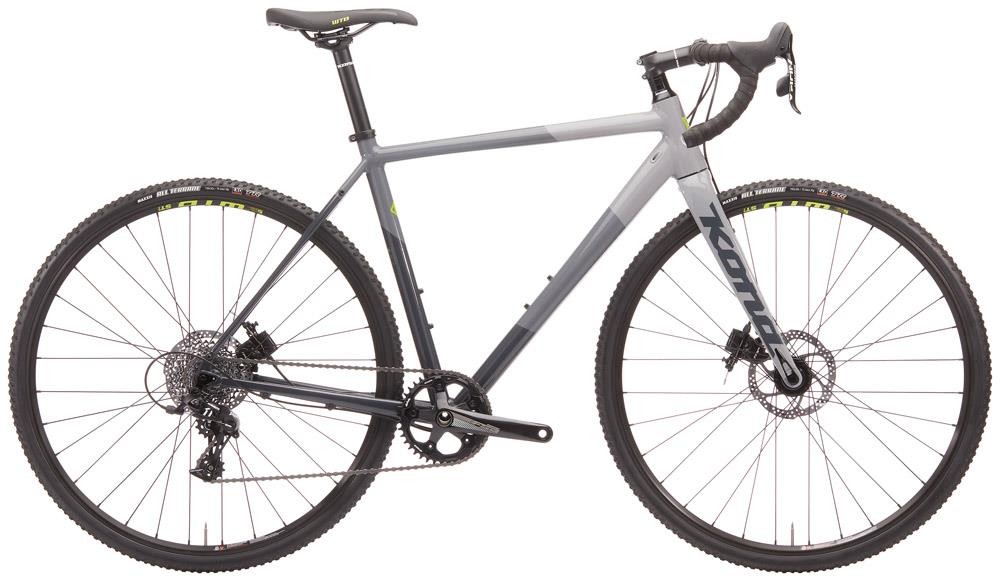

Kona Jake the Snake 2020 - Cyclocross Bike

Free Service Pack with this Bike. Use Code: FREEPACK
£1,699.00
Price Match
or £47.15 / month
Finance Options
Be the first to write a review
Sizing
Select a size
Colour
Add to Basket

Cycle to Work

Product Description

The working man’s privateer steed, the Jake the Snake is the go-to bike for Cyclocross racers and hard core commuters alike. The legendary Jake the Snake features aggressive racing geometry in a tough yet light aluminum frame and a full carbon flat mount disc fork, and is accompanied by tubeless ready wheels, a SRAM Apex 1x11 drivetrain, and TRP hydraulic disc brakes.

Key Features:

KONA RACE LIGHT 6061 ALUMINUM
Kona Race Light 7005 and 6061 are lighter, more performance-oriented fabrications of our 7005/6061 tubing. Designed to meet Kona’s discerning race specifications, Race Light 7005/6061 are custom butted to create thicker tubes at weld areas and important parts of the frame, providing incredible strength and torsional integrity to the feel of the ride. We remove wall thickness in other parts of the frameset to lighten up the bike, giving the perfect balance between quickness and stiffness.

TAPERED HEAD TUBE
More girth at the bottom of the head tube better distributes shock force, prolonging the bearing life of the headset itself and eliminating brake shudder, while providing confident steering performance. The inherent strength of its triangular design also means a stronger steering position and improved balance, giving the rider more control in rough terrain. A zero-stack, tapered head tube also puts strength where the load is going—into the lower headset cup—maximizing bearing durability where it’s needed.

TUBELESS COMPATIBLE RIMS
Tubeless rims allow for tires with more puncture resistance; the ability to run lower tire pressure, which provides better tire grip on the trail; lower rolling resistance; and weight savings over traditional tube and tire systems.

12x142mm AXLE
12x142mm, 12x148 and 12x157 rear axle standards provide two major advantages to the Kona rider: the 12mm diameter of the rear axle provides the rear hub and frame with a stiff interface, while the 142/148/157mm outer diameter of the hub allows the wheel to be quickly and properly positioned in the frame before the rear axle is inserted. For 2017, you’ll see the 12x148 Boost standard in the mix. Boost spacing provides more tire clearance at the chainstay yoke, while the rear wheel is stiffer and more durable relative to a 12x142 thru-axle.

Occasionally, without notice, manufacturers change product design and/or specifications.

Specification

Frame:Kona Race Light 6061 Aluminum Butted
Fork:Kona Carbon Cross
Headset:FSA No.57B
Stem:Kona Road
Bars:Kona Road
Front Brake:TRP 160mm
Rear Brake:TRP 160mm
Brake Lever:SRAM Apex
Rear Mech:SRAM Apex
Shifters:SRAM Apex
Speed:11
Rims:WTB ST i19 TCS
Front Hub:Formula 100x12mm
Rear Hub:Formula 142x12mm
Spokes:Stainless Black 14g
Front Tyre:Maxxis All Terrane EXO TR DUAL 700x33c
Rear Tyre:Maxxis All Terrane EXO TR DUAL 700x33c
Seat Post:Kona Thumb w/Offset 31.6mm
Saddle:WTB Volt Sport
Chainset:40t
Bottom Bracket:FSA 6200 68mm
Chain:SRAM PC1110
Cassette:SRAM PG1130 11-32t 11spd
Pedals:Not Included

There are currently no customer reviews

Write your own review

Jake The Snake Sizing

Jake The Snake Sizing

See the table below to find the right size Kona Jake The Snake.

Height / Inches

Height / Metric

Inseam / Inches

Inseam / Metric



Road/Rove

Libre

CX/Sutra

Dews

Coco

4’10” – 5’1”

147-155cm

24” – 27”

61 - 69 cm

46 – 48 cm

46cm

46 – 48 cm

46 – 48 cm

Small

5’0” – 5’3”

152 – 160cm

26” – 29”

66 - 74 cm

48 – 50 cm

46 – 49 cm

48 – 50 cm

46 – 49 cm

Small / Medium

5’2” – 5’7”

157- 170cm

27” – 30”

69 - 76 cm

48 – 52 cm

49 – 51 cm

48 – 52 cm

48 – 54 cm

Medium / Large

5’6” – 5’10”

168 – 178cm

29” – 31”

74 – 79 cm

52 – 54 cm

51 – 54 cm

52 – 54 cm

52 – 56 cm

Medium / Large

5’9” – 6’0”

175 – 183cm

30” – 33”

76 – 84 cm

52 – 56 cm

54 – 55 cm

52 – 56 cm

54 – 59 cm

Large / XL

5’11” – 6’2”

180 – 188cm

32” – 35”

81 – 89 cm

54 – 58 cm

54 – 58 cm

54 – 58 cm

58 – 61 cm

Large / XL

6’1” – 6’5”

185 – 196cm

33” – 36”

84 – 91 cm

56 – 58 cm

55 cm

56 – 58 cm

58 – 61 cm

XL

Read our bike size guide for more information on sizing.



Jake The Snake Geometry

Size

48

50

52

54

56

58

ST Length

480

500

520

540

560

580

TT Length

516

531

546

562

580

596

Reach

375

380

385

390

395

400

Stack

525

545

560

580

600

620

Standover

747

764

787

802

822

840

HT Angle

70

70

70.5

70.5

71

71

HT Length

100.6

121.8

137.9

159.1

180.2

201.4

ST Angle

75

74.5

74

73.5

73

72.5

CS Length

425

425

425

425

425

425

Bottom Bracket Drop

72

72

70

70

68

68

Bottom Bracket Height

280

280

282

282

284

284

Wheelbase

1007

1019

1026

1038

1047

1057

Front Center

592

604

610

622

630

641

Fork Length

395

395

395

395

395

395

Fork Offset (mm)

45

45

45

45

45

45

Please note, all size information is provided as a guide - if you're unsure or need any further assistance you can call us on 01792 799508 ... we're happy to help!

Cyclocross Bikes Guide

What is cyclocross?

Cyclocross is a multi-discipline cycling race on hills, flats and muddy terrain. There are sections where you'll need to get off your bike and scramble tricky terrain (with your bike on your shoulder).

Skillful bike handling is essential. Cyclocross runs from September to January, making it a great way to keep your fitness up during the off-season. Most cyclocross courses are between 1 – 2 miles mixing everything from tarmac to compact dirt, loose sand, hills and even steps. A versatile bike is key for performance.

How do cyclocross bikes differ from road bikes?

At a glance, cyclocross bikes look just like a road bike. Most cyclocross bikes combine the efficiency of road bikes with drop bars and lightweight frames matched to a carbon fork. Look a little closer and they do differ.

Key differences include:

- Wide 700 30-38c knobbly tyres for grip

- Wide fork and rear stay tyre clearance

- Powerful Disc brakes

- Longer wheel span for stability

- Shorter top tube for improved handling on variable terrain

- Higher bottom bracket for ground clearance

- Wide top tube to shoulder the bike easily

- Internal cable routing (or routing along top tube) to keep debris from damaging cables

These features combine to make a bike which is capable on a range of terrain and conditions.

What else is a cyclocross bike good for?

Commuting

The all-weather performance of these bikes, handling and low weight make them excellent commuter bikes. Disc brakes offer reliable performance whatever the conditions while a light frame helps you speed through the morning rush. Some cyclocross bikes also come with mudguard and rack mounts, further increasing their utility.

Fitness training

Push a cyclocross bike to the limit and you can go very fast. The lightweight road handling characteristics of these bikes are ideal for improving your fitness. Mud clearance, grippy tyres and powerful disc brakes mean you can train year round – even in the depths of winter.

Long distance riding

A slightly more relaxed geometry (riding position) compared to a road bike makes for more comfortable riding over long distances. If you want to go touring, a pliable steel (or ultra-luxury titanium) frame rather than a stiffer aluminium one is less fatiguing on long rides.

Off-road exploring

Leave the tarmac behind. Head into the wide with tyres you can run at much lower pressures (40psi or lower) for added grip. Mud clearance and disc brakes won’t hold you back in the dirt. A slightly more relaxed riding position is stable on variable terrain.
