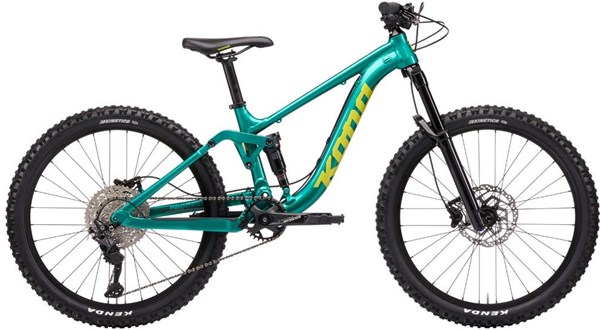

Kona Process 24w 2021 - Junior Bike
The kids are alright. Better than alright. In fact, they’re so incredibly talented that we had to make a bike to keep up with the insane progression the groms are throwing on the trails these days. The Process 24 pulls cues from the adult-sized bikes and is ready to rip the local singletrack or the bike park’s rowdiest lines. The Process 24 gets an updated fork with the Manitou Machete J Unit and 120mm travel, making it ready for hits big and small. A Shimano Deore 1x drivetrain and brakes make for excellent control up and down the hill.
Key Features:
- Kona 6061 Aluminum
Kona 7005 and 6061 Aluminum alloys are used extensively throughout our fleet of mountain and asphalt bicycles. A tough, durable, light alloy, both Kona 7005 and 6061 deliver fantastic, reliable performance that lasts for thousands of rides. Much of our 7005/6061 tubing is butted and/or formed, meaning the tubing’s wall thickness can be increased or decreased, as well as shaped, so we can fine-tune a particular frame’s strength and ride characteristics depending on its intended application.
- Internal Headset
Bearing cups are actually pressed into the frame and are easily removable. An internal headset also reduces stack height, so the height of the stem and bars are more adjustable, giving the rider the best fit possible.
- Tapered Head Tube
More girth at the bottom of the head tube better distributes shock force, prolonging the bearing life of the headset itself and eliminating brake shudder, while providing confident steering performance. The inherent strength of its triangular design also means a stronger steering position and improved balance, giving the rider more control in rough terrain. A zero-stack, tapered head tube also puts strength where the load is going—into the lower headset cup—maximizing bearing durability where it’s needed.
- 12x148mm Axle
12x142mm, 12x148 and 12x157 rear axle standards provide two major advantages to the Kona rider: the 12mm diameter of the rear axle provides the rear hub and frame with a stiff interface, while the 142/148/157mm outer diameter of the hub allows the wheel to be quickly and properly positioned in the frame before the rear axle is inserted. For 2017, you’ll see the 12x148 Boost standard in the mix. Boost spacing provides more tire clearance at the chainstay yoke, while the rear wheel is stiffer and more durable relative to a 12x142 thru-axle.
- Fuse Independent Suspension
The Fuse Independent Suspension is designed to be as lightweight and efficient as possible, oriented specifically for the demands of the modern XC trail rider. Like all of our suspension platforms, the Fuse IS is designed around a single pivot with a predictable leverage ratio for a responsive, snappy feel. Built for our Hei Hei platform, the frame features a seat stay that relies on small degrees of frame flex rather than a pivot at the seat and chainstay junction. The result is an efficient, laterally stiff suspension system that takes weight savings to a new level.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Kona 6061 DH Aluminum Butted 100mm travel |
Fork | Manitou Machete J-Unit Comp Air 120mm Tapered |
Rear Shock | RockShox Deluxe Select Solo Air |
Headset | FSA No.57B |
Stem | Kona OB |
Bars | Kona OB |
Front Brake | Shimano RT10 180mm (centerlock) |
Rear Brake | Shimano RT10 180mm (centerlock) |
Brake Lever | Shimano Deore |
Rear Mech | Shimano Deore |
Shifters | Shimano Deore |
Speed | 10 |
Rims | Alex DM24 |
Front Hub | Shimano 100x15mm (centerlock) |
Rear Hub | Shimano 148x12mm (centerlock) |
Spokes | Stainless Black 14g |
Front Tyre | Kenda Kinetics Rear 24x2.35" |
Rear Tyre | Kenda Kinetics Rear 24x2.35" |
Seat Post | Kona Thumb OB 31.6mm |
Saddle | Kona DJ |
Chainset | FSA Alpha Drive |
Bottom Bracket | FSA BB7420 |
Chain | KMC X10 |
Cassette | Shimano Deore 11-46t 10spd |
Pedals | Kona JS2 |
Kona Sizing
ROAD/CX/ASPHALT
HEIGHT - INCH |
HEIGHT - CM |
ROAD/ROVE |
LIBRE |
CX/SUTRA |
DEWS |
COCO |
4'10"-5'1" |
147-155 cm |
46-48 cm |
46 cm |
46-48 cm |
N/A |
XS |
5'0"-5'3" |
152-160 cm |
48-50 cm |
46-49 cm |
48-50 cm |
Small |
Small |
5'2"-5'7" |
157-170 cm |
48-52 cm |
49-51 cm |
48-52 cm |
Small, Medium |
Small, Medium |
5'6"-5'10" |
168-178 cm |
52-54 cm |
51-54 cm |
52-54 cm |
Medium |
Medium |
5'9"-6'0" |
175-183 cm |
52-56 cm |
54-55 cm |
52-56 cm |
Medium, Large |
Medium, Large |
5'11"-6'2" |
180-188 cm |
54-58 cm |
54-55 cm |
54-58 cm |
Large, XL |
Large |
6'1"-6'5" |
185-196 cm |
56-58 cm |
55 cm |
56-58 cm |
XL |
N/A |
MTB/ALL MOUNTAIN/GRAVITY
HEIGHT - INCH |
HEIGHT - CM |
SPLICE |
MTB/XC TRAIL/FAT |
ALL MOUNTAIN/ENDURO |
GRAVITY/DH |
4'10"-5'1" |
147-155 cm |
Small |
XS |
XS |
N/A |
5'0"-5'3" |
152-160 cm |
Small |
Small |
Small |
N/A |
5'2"-5'7" |
157-170 cm |
Small, Medium |
Small, Medium |
Small, Medium |
Medium |
5'6"-5'10" |
168-178 cm |
Medium |
Medium |
Medium |
Medium |
5'9"-6'0" |
175-183 cm |
Medium, Large |
Medium, Large |
Medium, Large |
Medium, Large |
5'11"-6'2" |
180-188 cm |
Large, XL |
Large, XL |
Large, XL |
Large, XL |
6'1"-6'5" |
185-196 cm |
Large, XL |
Large, XL |
Large, XL |
Large, XL |
