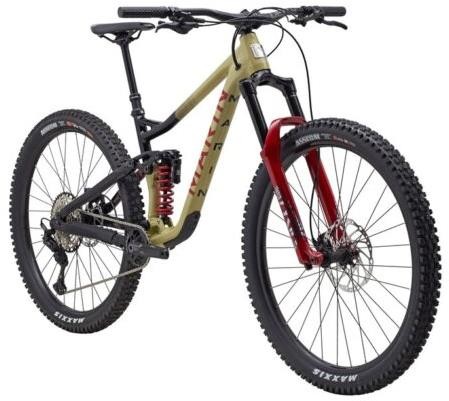

Marin Alpine Trail XR 29" Mountain Bike 2021 - Enduro Full Suspension MTB
BIG ALL-MOUNTAIN DAYS WHERE TRAVEL AND GEOMETRY MATTER MOST
BUILT FOR ABUSE AND ROWDY RIDING
ENDURO-STYLE RIDING AND RACING
BIG BIKE, BIG WHEELS, BIG FUN
The Alpine Trail is a 29” wheeled full suspension bike built for the all day enduro rider that earns their downhill fun.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Series 4 6061 Aluminum Frame, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs |
| Fork | RockShox Lyric Ultimate, 29”, 160mm of Travel, Air Sprung, Debonair, Charger 2.1, Fast Black Stanchions, 110x15mm Maxle Stealth, 42mm Offset |
| Rear Shock | Rock Shox Super Deluxe Coil Ultimate RCT, Coil Spring, Climb Switch, LS Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount (S/M = 300lb, L/XL = 400lb) |
| Headset | FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Stem | Deity Copperhead 35mm, Black Ano |
| Bars | Deity Ridgeline, Stealth Finish, 35mm Clamp, 800mm Width |
| Front Brake | Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor |
| Rear Brake | Shimano MT420, 4-Piston Hydraulic Disc Brake, 180mm Rotor |
| Brake Lever | Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible |
| Rear Mech | Shimano XT 12-Speed, SGS |
| Shifters | Shimano SLX 12-Speed, I-Spec EV |
| Speed | 12 |
| Rims | Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible |
| Front Hub | Shimano HF-MT410B, 110x15mm, Centerlock |
| Rear Hub | Shimano HB-MT510B, 148x12mm, Centerlock, Microspline Freehub Body |
| Spokes | 14g Black Stainless Steel |
| Front Tyre | Front: Maxxis Assegai 29x2.5”, MAXX TERRA, EXO+, Tubeless Compatible; Rear: Maxxis Assegai 29x2.5”, MAXX GRIP, DoubleDown, Tubeless Compatible |
| Rear Tyre | Front: Maxxis Assegai 29x2.5”, MAXX TERRA, EXO+, Tubeless Compatible; Rear: Maxxis Assegai 29x2.5”, MAXX GRIP, DoubleDown, Tubeless Compatible |
| Seat Post | X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm |
| Saddle | Marin Speed Concept |
| Chainset | FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing |
| Bottom Bracket | BB392 EVO, 73mm BSA Threaded |
| Chain | KMC X-12 Silver and Black |
| Cassette | Shimano SLX M7100 Cassette, 12-Speed, 10-51T |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Marin Alpine Trail XR 29" Mountain Bike 2021 - Enduro Full Suspension MTB.
This product is no longer available.
