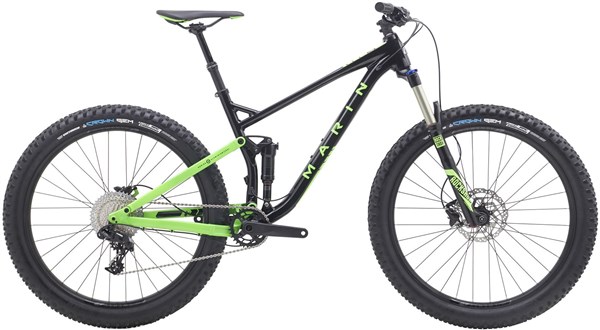

Marin B-17 1 27.5+ Mountain Bike 2019 - Trail Full Suspension MTB

Save an extra 10% off this Bike today. Use Code: CYCLE10
£1,800.00
Price Match Promise
or £62.26 / month
Finance Options
1 review
Sizing
Select a size
Colour
Add to Basket

Free insurance Includes 8 weeks Free Bike Insurance. Find out more.

Product Description

The MTB trails are calling you. The Marin B-17 1 is a full sus mountain bike that rolls on plus sized tyres for a smoother ride on rough terrain.

Marin’s Series 4 6061 aluminium frame is lightweight and features MultiTrac suspension for smooth riding on 27.5+ wheels. The RockShox Deluxe R shock controls the 120mm travel to take on rough trails. Boost spacing is found front and rear, with 15x110mm front and 12x148mm rear spacing. This helps add stiffness to the frame and fork, while also allowing for space for the tyres and keeping the chainstays short. Internal cable routing and 29” wheel compatibility finish off this trail bike frame.

RockShox delivers smooth performance with the Recon Gold RL fork. It has 130mm travel with rebound adjustments and a Solo Air Spring, so different riders’ weights can be accounted for without having to change the spring.

The SRAM 1x11 speed NX drivetrain gives plenty of gear range to conquer the mountains, while the Shimano M315 hydraulic disc brakes deliver powerful speed control in all weather conditions.

The wide 2.8” Vee Tyre Crown Gem tyres allow for a greater amount of float on the trails, helping out the suspension travel to create a softer and more controllable ride. A TranzX Dropper post helps to get the seat out the way on the fun stuff going down.

Have a blast in the mountains aboard the Marin B-17 1.

Key Features:

  • Series 4 6061 aluminium frame with MultiTrac Suspension offering 120mm travel from RockShox Deluxe R shock
  • RockShox Recon Gold RL fork offers 130mm travel to control the front end
  • SRAM NX 1x11 speed drivetrain gives wide gearing options
  • Shimano M315 hydraulic disc brakes give power in all weather conditions
  • Wide 2.8” Vee Tyre Crown Gem tyres deliver extra float and control on the trail
  • TranzX Dropper post to make the best of every trail section.
  • Sizes: 15”, 17”, 19”, 20”
  • Colours: Gloss Black
  • The Marin B-17 1 is available with 0% APR finance

The B-17 combines our acclaimed 120mm MultiTrac rear suspension system with 27.5+ tires for an all-day, all-conditions trail bike ready for the unknown. The large volume tires allow for extra low tire pressure and unheard of grip and control in most every condition for an instant confidence boost at speed, and uncanny climbing abilities to conquer the next ridge. At nearly the same outside diameter as 29” tires, 27.5+ tires offer similar roll over capabilities, but with added float and an even larger tire to ground contact patch to help tame the trail.

The B-17 is our most capable MultiTrac bike, built for the all-day trail rider looking for a playful bike with maximum traction. Plus-sized tires are an instant confidence boost and traction upgrade, sticking to most everything and making it possible to climb and descend sketchy parts of trail that may have required hoofing it before.

Highlights:

SERIES 3 ALUMINIUM FRAME

The B-17 has a Series 3 6061 butted and hydroformed aluminium frame with 120mm travel MultiTrac suspension technology and large volume 27.5+ wheels.

27.5+ WHEELS

27.5+ tires roll fast, grip anything, and their wide high volume low pressure setup brings a new experience to trail riding. The B-17 is compatible with 29” wheels up to 2.5” for two rides in one frame.

MULTITRAC SUSPENSION TECHNOLOGY

MultiTrac is an acclaimed suspension system, fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedalling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of a long travel system on large drops and rocks.

INTERNAL ROUTING

B-17 models come equipped with internally routed dropper posts, with internal rear derailleur routing for a clean look and snag free ride.

148X12MM THRU-AXLE

Boost front spacing is paired with a 148x12mm Boost rear thru-axle for frame and wheel strength, and future wheel upgrade compatibility.

    All Tredz bikes are:

    • Fully built & ready to ride
    • Fully checked & tested by Cytech qualified mechanics
    • Available with 0% APR finance (up to 48 months) on any basket over £99
    • UK price match guarantee
    • 365 day no hassle returns
    • Free delivery in the UK Mainland on a date that suits you

    In the box with every Tredz bike is:

    • Free Tredz 9 key trail tool
    • Free Tredz pedal spanner
    • Free basic pedals
    • Tredz drawstring kit bag
    • 16 point quality control check sheet
    • Basic bike setup instructions
    • Free Cycle Plan insurance voucher (8 weeks)

    Specification

    Frame:Series 3 6061 Aluminum Frame, 27.5+” Wheels, 120mm Travel MulitTrac Suspension Platform, Seatstay Mounted Post Mount Disc Brake, 148x12mm Thru-Axle **compatible with 29" wheels up to 2.5"
    Fork:RockShox Recon Gold RL 27.5+, 130mm Travel, Compression and Rebound Adjustment, Solo Air Spring, 110x15mm Maxle Stealth, 51mm Offset
    Rear Shock:RockShox Deluxe R Debonair, 210x50mm, Deboinar Air Sleeve, Rebound Adjustment
    Headset:FSA Orbit, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
    Stem:Marin 3D Forged Alloy
    Bars:Marin Mini-Riser, 6061 Double Butted Aluminum, 15mm rise, 780mm width, 4º up, 9º back
    Front Brake:Shimano BR-M315 Hydraulic Disc, 180mm Rotor
    Rear Brake:Shimano BR-M315 Hydraulic Disc, 180mm Rotor
    Rear Mech:SRAM NX 11-Speed
    Shifters:11 Speed SRAM NX
    Rims:Marin Aluminum Double Wall, 38mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
    Front Hub:Formula, 110x15mm, Centerlock Disc, 32H
    Rear Hub:Formula, 148x12mm, Quad Sealed Bearings, Centerlock Disc, 32H
    Spokes:14g Black Stainless Steel
    Front Tyre:Vee Tire, Crown Gem 27.5x2.8", Dual Control Compound, Folding Bead, Tubeless Ready Front
    Rear Tyre:Vee Tire, Crown Gem 27.5x2.8", Dual Control Compound, Folding Bead, Tubeless Ready Rear
    Seat Post:TranzX Dropper Post, YSP15 with 1x remote
    Chainset:FSA Comet, Modular 1x with 30T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
    Bottom Bracket:External Sealed Cartridge Bearings
    Chain:KMC X-11 Extra Light
    Cassette:Sunrace 11-Speed, 11-42T
    Pedals:Not Included

    Occasionally without notice, manufacturers sometimes change product specifications.

    Marin B-17 1 27.5+ Mountain Bike 2019 - Trail Full Suspension MTB Reviews

    Write your own review
    Overall Rating:
    5
    out of 5
    5.00
    Build Quality
    5.00
    Performance
    5
    Value For Money
    5.00

    Customer Reviews (1)

    5
    Mr Rideout

    Rode my mates b17 absolutely awesum on twisty trails felt like the bike was part of me. Smooth flowing great responsive love it.

    Rode my mates b17 absolutely awesum on twisty trails felt like the bike was part of me. Smooth flowing great responsive love it.

    Close review
    5 out of 5
    Build Quality: 5/5
    Performance: 5/5
    Value For Money: 5/5

    B-17 Sizing

    B-17 Sizing

    See the table below to find the right size Marin B-17.

    Height

    Size

    4’8” / 143cm

    XXS













    4’9” / 145cm

    XXS













    4’10” /  148cm



    XS











    4’11” / 150cm



    XS











    5’0” / 152cm



    XS











    5’1” / 155cm



    XS

    S









    5’2” / 158cm





    S









    5’3” / 160cm





    S









    5’4” / 163cm





    S









    5’5” / 165cm





    S

    M







    5’6” / 168cm







    M







    5’7” / 170cm







    M







    5’8” / 173cm







    M







    5’9” / 175cm







    M

    L





    5’10” / 178cm







    M

    L





    5’11” / 180cm









    L





    6’0” / 183cm









    L

    XL



    6’1” / 185cm









    L

    XL



    6’2” / 188cm











    XL



    6’3” / 191cm











    XL

    XXL

    6’4” / 193cm













    XXL

    6’5” / 196cm













    XXL

    6’6” / 198cm













    XXL

    Read our bike size guide for more information on sizing.



    B-17 Geometry

    Size

    S

    M

    L

    XL

    Stack (mm)

    613

    617

    622

    627

    Reach (mm)

    415

    435

    456

    485

    Head Tube Angle

    67

    67

    67

    67

    Head Tube Length (mm)

    100

    105

    110

    115

    Seat Tube Angle (Virtual)

    73.4

    73.4

    73.4

    73.4

    Seat Tube Angle (Actual)

    67

    67

    67

    67

    Seat Tube Length (mm)

    385

    420

    450

    480

    Top Tube Actual (mm)

    538

    558

    580

    614

    Top Tube Effective (mm)

    568.587

    613

    638

    672

    Bottom Bracket Height (mm)

    323.5

    323.5

    323.5

    323.5

    Bottom Bracket Drop (mm)

    35

    35

    35

    35

    Chain Stay (mm)

    435

    435

    435

    435

    Wheelbase (mm)

    1128

    1160

    1181

    1213

    Standover Height (mm)

    678

    707

    719

    745

    Fork Offset

    51

    51

    51

    51

    Seatpost Diameter

    30.9

    30.9

    30.9

    30.9

    Handlebar Width

    780

    780

    780

    780-

    Stem Length

    45

    45

    45

    45

    Crank Length

    170

    175

    175

    715

    Read our Mountain Bike Geometry Explained guide for more information on MTB geometry.

    Please note, all size information is provided as a guide - if you're unsure or need any further assistance you can call us on 01792 799508 ... we're happy to help!

    Full Sus MTB Guide



    Is a full-suspension mountain bike right for me?

    If you’re new to the world of cycling, we highly recommend taking a look at our bike buying guide overview or our mountain bike buying guide to help you decide what type of bike is right for your needs.

    When you’re choosing a full suspension mountain bike, there are a few things to look out for which can help you to work out the quality and performance you can expect from a particular model.


    Suspension travel & usage

    Depending on the type of mountain bike riding you’ll be doing, you may want to have longer or shorter suspension travel on your bike:

    Travel

    Usage

    Pros

    Cons

    Up to 120mm

    XC

    Lightweight & efficient pedalling for long-distance rides

    Short travel is less capable on rough & demanding trails with large jumps & drops

    120 – 150mm

    Trail

    Lightweight, balance of climb-friendly efficiency & rough-descent capability

    More weight than a shorter travel bike & less efficient climbing. Less capable on descents than a longer travel bike

    150-180mm

    Enduro

    Capable of covering difficult & technical downhill sections. Wide enough gear range for climbing

    Heavier & significantly less efficient at climbing compared to shorter travel bikes

    180mm +

    Downhill

    Designed for highly technical & high-speed descents, with big drops and large jumps

    Heavy, and inefficient at climbing. Limited gear range means most climbs will require pushing the bike


    Frame material

    Full-suspension MTB frames are mostly made from either aluminium or carbon fibre, with each material having its own benefits & drawbacks.

    Aluminium

    Aluminium is lightweight, stiff, strong, and easy to manufacture. Manufacturers often develop their own aluminium alloys, such as ALUXX by Giant. Aluminium is found on a wide range of bikes, from entry-level & enthusiast bikes, right the way up to top-spec racing bikes.

    Carbon

    Carbon fibre is lighter, stiffer, stronger, and more expensive than aluminium. The most affordable carbon bikes typically use medium strength carbon fibres, while the most expensive bikes use stronger ‘high modulus’ carbon. Carbon fibre frames are found on enthusiast-level bikes, right up to high-performance bikes designed for racing.


    Groupset & drivetrain

    A bike’s groupset, or drivetrain, is where the biggest difference in component quality is seen.
    A complete groupset comprises of the following parts:

    • Chainset (aka Crankset)
    • Bottom bracket
    • Brakes
    • Brake levers
    • Shifters
    • Front & rear derailleur
    • Chain
    • Cassette
    MTB Groupsets

    Mountain bike groupset components are typically supplied by either Shimano or SRAM, with additional manufacturers like Formula, Hope, Magura, Tektro and TRP supplying brake systems. Shimano & SRAM both produce a range of groupsets to suit different budgets. The hierarchy table here compares the different Shimano & SRAM groupsets to determine which bikes offer the best performance.


    Wheel size

    You’ve probably noticed that a lot of mountain bikes come in a choice of wheel size, mainly a 27.5 inch wheel (also known as a 650B wheel) or a 29inch wheel (known as a 29er). Although there are still bikes which use 26 inch wheels, these are gradually being phased out on all but the smallest bikes. The difference between these wheel sizes can have a dramatic effect on the way a bike feels and handles out on the trail.

    27.5in/650b Wheels

    27.5inch wheels are smaller and lighter than 29er wheels, which makes them more agile and gives the bike a more responsive & playful nature. On the other hand, the smaller wheel size rolls less efficiently than the larger size, making the bike more prone to losing speed over rough ground and making it a little slower when climbing.

    29er Wheels

    29er wheels have a bigger rolling radius which makes them naturally smoother over rough ground. For this reason, a 29er mountain bike often requires less suspension travel than smaller wheeled alternatives. The downsides are an increase in weight, and the larger diameter wheels generate stronger gyroscopic forces, making the bike more stable, but less agile and responsive whilst manoeuvring.

    26in Wheels

    26 inch wheels were once the go-to wheel size on adult mountain bikes. However, they are now typically only found on the smallest frame sizes, and on junior bikes. 26 inch wheels are lightweight and give the bike very agile handling. The downsides to 26 inch wheels are their poor rolling resistance on rough ground, and the reduced contact patch due to the smaller wheel circumference.


    Suspension components

    Mountain bike suspension components (i.e. the fork or rear shock absorber) are also a way to identify the quality of a bike. While Fox and RockShox are the most common manufacturers, there are a number of brands producing suspension components for mountain bikes.

    Entry level full suspension mountain bikes (up to approximately £1300) may come supplied with a fork & rear shock supplied by SR Suntour, X-Fusion or RockShox. These components will allow a limited amount of adjustment, including:

    • Coil spring preload / air spring pressure adjustment
    • Lockout switch
    • Rebound damping adjustment on models towards the top of the price range.

    Mid-range & enthusiast bikes (up to approximately £3500) use components from brands including Fox, RockShox and Manitou. At this level, suspension components have features like:

    • Preload adjustment / air spring pressure adjustment
    • Rebound damping adjustment
    • Lockout switch
    • Multi-position ‘mode’ switch
    • Components towards the top end of the enthusiast price range may also feature compression damping adjustment as well.

    Top of the range & competition spec bikes (over £3500) also use components from Fox, RockShox & Manitou, with a few select models using parts from Ohlins. At this price, suspension components have features including:

    • Coil spring preload adjustment / air spring pressure adjustment
    • High & low speed rebound damping adjustment
    • High & low speed compression damping adjustment
    • Lockout switch
    • Multi-position 'mode' switch
    • Advanced low-friction coatings (e.g. Fox’s golden-coloured Kashima coating)

    Finance

    How do I apply for finance?

    Spend £99 or more at Tredz and you can spread the cost. Pay monthly over 6-48 months, interest free (dependent on repayment terms and amount).

    1Fill your basket with everything you want from Tredz and go to the checkout.

    2During checkout, select the finance option you want as your method of payment.

    3You will be sent to our finance provider's secure server to complete your application.

    4Finance providers PayPal & V12 will use the information provided to make a decision and complete checkout if you are approved.

    Read more about buying on finance

    Buy now, pay 12 months later.
    Interest free credit with no deposit. Pay nothing for 3 or 6 months on orders over £850, or 12 months on orders over £1,500* *Not available through PayPal Credit

    Flexible finance options

    Choose your deposit.

    Choose your term.

    £1,800.00 Your basket + this product

    Lowest monthly cost

    £62.26 15.9% APR

    per month

    for 36 months

    Best £0 deposit / 0% interest

    £75.00 0% APR

    per month

    for 24 months

    Open Finance Calculator
    Representative example: If total purchase price is £1,399.00 with a deposit of £139.90 (10%) and your selected term is 36 months Classic Credit (15.9% APR fixed), you would pay £43.55 per month. Total charge for credit will be £308.70 and total amount repayable is £1567.80, subject to terms and status.

    Delivery & Guarantee

    UK Delivery Information

    We are committed to offering fast and free delivery, whether you're ordering bikes, accessories or clothing. Our standard delivery service is FREE to mainland UK, regardless of the size and on all orders over £20.

    Please note that bulky products and bikes shipped to outlying UK regions are excluded from free shipping.

    Please note that Pre-Order dates can sometimes change due to updated stock information.

    Click here for more UK and international delivery information.

    Returns & Warranty

    It's easy to return a product with our 365 day, hassle free returns.

    We will give you a full refund or exchange on any item that is returned to us unused/unfitted, in a resaleable condition and in its original packaging (where possible).

    Please note: For hygiene reasons, we cannot accept returns of facemasks, undershorts or underwear if the item has been removed/unsealed from its original packaging.

    If your item develops a fault or arrives damaged, please contact us first so we can resolve the issue for you as quickly as possible.

    For more information please visit our Returns & Warranty page.

    What's In The Box

    What's In The Box

    As cyclists ourselves, we know you will be keen to get out on your new bike as soon as possible. That's why we provide you with all the essential kit you need to get your shiny new bike rolling for the first time.

    Most bikes don't come with pedals as standard so we include a set of basic pedals, free of charge with every bike we send out. We will also provide you with a pedal spanner to fit them and a 9-key trail tool, along with full instructions for setting your bike up out of the box. Each bike is sent out with a 16 point, quality control check sheet so you can be confident that your bike has been fully checked by our qualified mechanics.

    What's in the box
    • Basic setup instructions
    • 16 point quality control checklist
    • Free tredz multitool
    • Free tred pedal spanner
    • Free basic pedals
    • Free drawstring kit bag
    • Free bike insurance voucher

    All these items are provided at no extra charge and are packed into a Tredz drawstring bag that doubles up as a handy backpack for carrying your ride essentials.

    • Basic bike setup instructions
    • Free ‘basic’ pedals
    • Free Tredz pedal spanner
    • Free Tredz 9-key trail tool
    • Free Tredz drawstring bag
    • Free 8 weeks insurance voucher
    • 16 point, quality control check sheet

    Tredz Service:

    Tredz bikes are fully built & set up to ride
    Read our bike setup guide.

    Free UK delivery, on a date that suits you
    We will ring to choose a suitable day. Find out more
    • Tredz bikes are fully checked & tested by Cytech qualified mechanics
    • 0% APR finance available on any basket over £99
    • Price match guarantee
    • 365 day 'no hassle' returns
    • Free UK delivery, on a date that suits you

    Show finance options for:

    Available finance options:

    Months / APR Per month

    Buy now, pay later over £850. Find out more Finance provider options available
