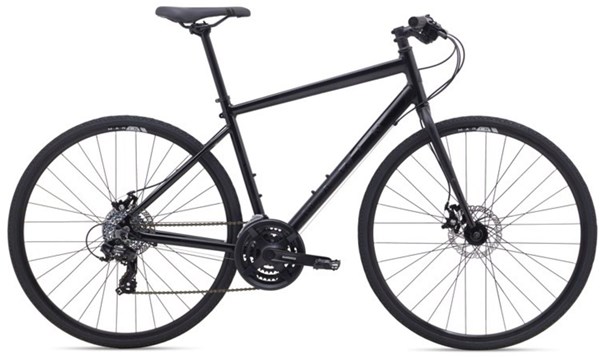

Marin Fairfax 1 2021 - Hybrid Sports Bike
The Fairfax and Terra Linda make up our Fitness line, built for the flat-bar fitness road rider with the accessory mounts and gear range for future upgrades
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Series 2 Speed + Commute, 6061 Aluminum, 700C Wheels, Disc Brake, Internal Cable Routing, Fender and Rack Mounts |
Fork | Cr-Mo Steel, Straight Blade, Disc Mount, Fender and Rack Eyelets |
Headset | FSA, Threadless |
Stem | Marin Alloy Threadless |
Bars | Marin Alloy, 30mm Rise |
Front Brake | Tektro Mechanical Disc Brake |
Rear Brake | Tektro Mechanical Disc Brake |
Brake Lever | Included With Shifters |
Front Mech | Shimano Tourney, 7-Speed |
Rear Mech | Shimano TY510 |
Shifters | Shimano EF41 Shifter/Brake Lever Combo, 3x7-Speed |
Speed | 21 |
Rims | Marin Aluminum Double Wall, Machined Sidewall |
Front Hub | Forged Aluminum Alloy, Disc, 32H |
Rear Hub | Forged Aluminum Alloy, Disc, 32H |
Spokes | 14G Stainless Steel |
Front Tyre | Marin Speed + Commute 700Cx35 |
Rear Tyre | Marin Speed + Commute 700Cx35 |
Seat Post | Marin Alloy |
Chainset | Shimano FC-TY301, 48/38/28T, Ring Guard |
Bottom Bracket | Sealed Cartridge Bearings, Square Taper |
Chain | KMC Z50 |
Cassette | SunRace 7-Speed, 11-34T |
Pedals | Commute Platform |
Marin Fairfax 2024 Size Chart
|
Height (cm) |
Height (in) |
XS |
152 - 163 |
4' 11" - 5' 1" |
S |
163 - 173 |
5' 1" - 5' 5" |
M |
173 - 180 |
5' 5" - 5' 9" |
L |
180 - 188 |
5' 9" - 6' 1" |
XL |
188 - 193 |
6' 1" - 6' 4" |
Marin Fairfax 2024 Geometry
Fairfax 1 Geometry |
XS | S | M | L | XL |
Stack | 557 | 571.3 | 590 | 609 | 637.3 |
Reach | 385 | 400 | 420 | 440 | 455 |
Headtube Angle | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
Headtube Length | 140 | 155 | 175 | 195 | 225 |
Seattube Angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
Seattube Length | 380 | 430 | 480 | 520 | 550 |
Toptube Effective | 550 | 569.2 | 594.8 | 620.4 | 643.8 |
Bb Height | 283.5 | 283.5 | 283.5 | 283.5 | 283.5 |
Bb Drop | 70 | 70 | 70 | 70 | 70 |
Chainstay | 445 | 445 | 445 | 445 | 445 |
Wheelbase | 1050.01 | 1070 | 1096.7 | 1123.4 | 1148.4 |
Standover Height | 660.74 | 705.38 | 745.2 | 780.34 | 809.68 |
Fork Offset | 50 | 50 | 50 | 50 | 50 |
Seatpost Diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
Handlebar Width | 640 | 640 | 680 | 680 | 680 |
Stem Length | 70 | 70 | 70 | 70 | 70 |
Crank Length | 170 | 170 | 175 | 175 | 175 |
