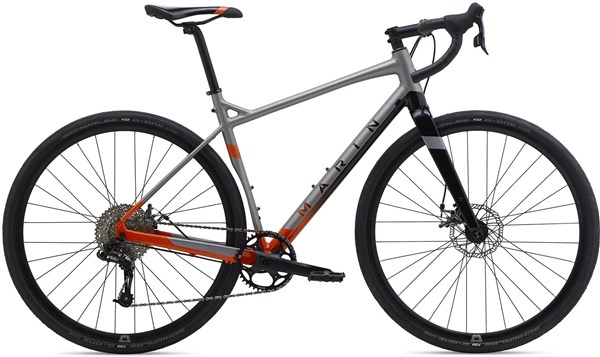

Marin Gestalt X10 2019 - Road Bike

Free Safety Lights With This Bike: Use Code: BESAFE
£1,200.00
Price Match Promise
or £41.50 / month
Finance Options
Be the first to write a review
Sizing
Select a size
Colour
This product is not guaranteed for Christmas Delivery
Pre-Order

Free insurance Includes 8 weeks Free Bike Insurance. Find out more.

Product Description

The mountain bikers drop bar bike. The Marin Gestalt X10 is a road bike that is also seriously capable when you take it off-road. The series three aluminium alloy frame features a low stand over height combined with geometry specially tuned for adventure. With its one by drivetrain this this is a bike that you can take on serious off road adventures and still ride efficiently on the smooth stuff.

Key Features:

  • Series 3 aluminium alloy frame with capable beyond road geometry
  • Full carbon fork with thru axle for improved steering control
  • SRAM APEX/GX 1x10 speed drivetrain for secure shifting and wide gear range
  • Tektro dual piston mechanical disc brakes for all-weather stopping power
  • Sizes: 50cm, 52cm, 54cm, 56cm, 58cm, 60cm
  • Colours: Orange
  • The Marin Gestalt X10 is available with 0% APR finance

The Gestalt X is the mountain biker’s dropbar bike with reliable and simple 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.

The Gestalt X is made to expand your horizons even further beyond roads. We extended the possibilities of the Gestalt by adding generous tire clearance, lowering the stand over, using solely one-by drivetrains, adding dropper post routing, and tuning the geometry for more adventurous riding. This is the dropbar bike for the rider looking for singletrack no matter what the occasion, the perfect bike to ride the road both to and from the trail and cut through unexplored places to find new routes.

Highlights:

SERIES 3 FRAME

The Gestalt X features a butted and formed Series 3 6061 aluminium frame with internal routing, post mount disc brakes, and rack and fender eyelets. Series 4 frames add 142x12mmthru-axles and flat mount disc brakes.

BEYOND ROAD GEOMETRY

The Gestalt X takes our Beyond Road Geometry to the next level of aggressive road and dirt exploration with a blend of endurance road handling and mountain bike sensibilities.

DISC BRAKES

The Gestalt X features the latest post mount disc brake standard for smooth, controlled stopping in all conditions with minimal maintenance.

TIRE CLEARANCE

The Gestalt X frame and fork has clearance for up to up to 700Cx42 or 650Bx47 Road Plus tires.

All Tredz bikes are:

  • Fully built & ready to ride
  • Fully checked & tested by Cytech qualified mechanics
  • Available with 0% APR finance (up to 48 months) on any basket over £99
  • UK price match guarantee
  • 365 day no hassle returns
  • Free delivery in the UK Mainland on a date that suits you

In the box with every Tredz bike is:

  • Free Tredz 9 key trail tool
  • Free Tredz pedal spanner
  • Free basic pedals
  • Tredz drawstring kit bag
  • 16 point quality control check sheet
  • Basic bike setup instructions
  • Free Cycle Plan insurance voucher (8 weeks)

Specification

Frame:Series 3 Beyond Road, 6061 Aluminum, 700C Wheels, Relieved Head Tube and BB, Internal Cable Routing, Post Mount Disc Specific Forged Dropouts
Fork:Marin Full Carbon w/ Taper Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Headset:FSA No.8B
Stem:Marin 3D Forged Alloy
Bars:Marin Butted Alloy, Compact 12º Flared Drop, Flat Top
Front Brake:Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor
Rear Brake:Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor
Brake Lever:SRAM Apex DoubleTap
Front Mech:SRAM GX 10-Speed
Shifters:SRAM Apex 1x10-Speed
Rims:Marin Aluminum Double Wall, 19mm Inner, 24mm Tall, Disc Specific, Tubeless Compatible
Front Hub:Forged Aluminum Alloy, 6-Bolt Disc, 32H
Rear Hub:Forged Aluminum Alloy, 6-Bolt Disc, 32H
Spokes:14g Black Stainless Steel
Front Tyre:Schwalbe G-ONE Performance, 700Cx35, Folding Bead, Kevlar Puncture Protection
Rear Tyre:Schwalbe G-ONE Performance, 700Cx35, Folding Bead, Kevlar Puncture Protection
Seat Post:Marin Alloy
Chainset:Forged Alloy 1x10, Hollow CrMo Spindle, Narrow-Wide 42T
Bottom Bracket:External Sealed Cartridge Bearings
Chain:KMC X10
Cassette:SunRace 10-Speed, 11-42T
Pedals:Commute Platform

Occasionally without notice, manufacturers sometimes change product specifications.

There are currently no customer reviews

Write your own review

Gestalt Sizing

Gestalt Sizing

See the table below to find the right size Marin Gestalt.

Size

50cm

52cm

54cm

56cm

58cm

60cm

Rider Height Range

5’0” – 5’3”

5’3” – 5’6”

5’6” – 5’9”

5’9” – 6’0”

6’0” – 6’2”

6’2” – 6’4”

Read our bike size guide for more information on sizing.



Gestalt Geometry

Size

50

52

54

56

58

60

Stack (mm)

542.5

560.4

574.7

593.7

612.7

633.8

Reach (mm)

396.6

-

374.8

389.1

397.7

406.2

Headtube Angle

71

72

72

72

72

72.5

Headtube Length (mm)

120

135

150

170

190

210

Seat Tube Angle Virtual

74.5

74

73.5

73.5

73

73

Seat Tube Angle Actual

74.5

74

73.5

73.5

73

73

Seat Tube Length (mm)

470

490

510

530

550

570

Top Tube Actual (mm)

503

517

527

546

565

580

Top Tube Effective (mm)

520

535

545

565

585

600

Bottom Bracket Height (mm)

271

271

271

271

271

271

Bottom Bracket Drop (mm)

72

72

72

72

72

72

Chainstay (mm)

415

415

415

415

415

415

Wheelbase (mm)

993.1

994.3

999.4

1019.9

1034.6

1044.5

Standover Height (mm)

713

732

751

774

793

813

Fork Offset (mm)

50

50

50

50

50

50

Seatpost Diameter (mm)

27.2

27.2

27.2

27.2

27.2

27.2

Handlebar Width (mm)

400

420

420

440

440

440

Stem Length (mm)

60

60

80

90

90

100

Crank Length (mm)

170

170

175

175

175

175

Read our Road Bike Geometry Explained guide for more information on Road geometry.

Please note, all size information is provided as a guide - if you're unsure or need any further assistance you can call us on 01792 799508 ... we're happy to help!

Road Bike Guide



Road Bike Guide

Is a Road Bike Right for Me?

If you’re new to the cycling world, we highly recommend taking a look at our bike buying guide overview or our road bike buying guide to help you decide what type of bike is right for your needs.

When you’re choosing a road bike, there are a few things to look out for which can help you work out the quality and performance you can expect from a particular model.


Usage

What road bike is right for you? There are a few different kinds of road bike, and they all have their specialities. We break down their strengths and usage in an easy to read table below.

Type of Road Bike

Usage

Pros

Cons

Sportive Road

Long distance, training, sportive and endurance riding, as well as rough roads.

Comfortable, relaxed geometry is more accessible for riders new to road cycling.

Not as aggressive or stiff, so serious racers may look for a road race bike.

Road Race

Racing and training.

Lightweight, aggressive geometry for most efficient riding position.

Range limited to tarmac roads and cycle paths.

Aero Race

Road and criterium racing.

Aero dynamically efficient and fast. Stiff frames and aggressive geometry.

Heavier than road race bikes.

Flat Bar Road

Training and commuting. Comfortable, fast city riding.

Upright riding position is great for training and city riding.

Limited options of bikes. MTB-like position not great for racing.

Type of Road Bike / Usage

Pros

Cons

Sportive Road

Long distance, training, sportive and endurance riding, as well as rough roads.

Comfortable, relaxed geometry is more accessible for riders new to road cycling.

Not as aggressive or stiff, so serious racers may look for a road race bike.

Road Race

Racing and training.

Lightweight, aggressive geometry for most efficient riding position.

Range limited to tarmac roads and cycle paths.

Aero Race

Road and criterium racing.

Aero dynamically efficient and fast. Stiff frames and aggressive geometry.

Heavier than road race bikes.

Flat Bar Road

Training and commuting. Comfortable, fast city riding.

Upright riding position is great for training and city riding.

Limited options of bikes. MTB-like position not great for racing.


Frame Material

The vast majority of road bikes are made from either aluminium alloy or carbon fibre. Alloy bikes can offer higher tier groupsets for a lower price, whereas carbon frames come at a significant premium, but are lighter and give that extra performance advantage.

Aluminium

Aluminium alloy frames
Alloy frames have come a long way recently, using hydroforming and butting to keep the weight low, while keeping stiffness high.

Carbon fibre

Carbon fibre composite frames
Carbon frames have a lighter weight and greater stiffness, while maintaining excellent comfort.


Fork

Road bike forks are made to be lightweight and stiff, giving accurate steering, as well as a comfortable ride. Budget road bikes will have alloy forks, whereas mid-range forks often have mix-material forks, with alloy steerer tubes and carbon fork blades. Carbon bladed forks deliver a more comfortable ride, absorbing road vibrations and flexing slightly in rough roads. Full carbon forks are found on high end road bikes. They are especially lightweight and offer even greater stiffness.


Groupset

A bike’s groupset, or drivetrain, is where the biggest difference in component quality is seen. A complete groupset comprises of the following parts:

  • Chainset (aka Crankset)
  • Bottom bracket
  • Brakes
  • Brake levers
  • Shifters
  • Front & rear derailleur
  • Chain
  • Cassette

Road groupsets are supplied by Shimano, SRAM or Campagnolo. Having reliable and fast shifting can make all the difference when pushing hard. The majority of road bikes have double chainring drivetrains, while triple chainring setups are usually only found on low end bikes and touring bikes. Road bikes will have 7-11 speeds in the rear, with higher gears meaning more options for smoother riding.

Road Groupsets

Brakes

Disc Brakes

Disc brakes
Disc brakes offer greater stopping power and modulation. They work as well in wet as dry weather, and don’t require the rims to be replaced periodically. They come at a weight penalty, however.

Calliper Rim Brakes

Calliper rim brakes
Rim brakes are lightweight and easy to maintain. They allow greater aerodynamics for aero road bikes and


Wheels & Tyres

Types of tyres

Road bikes tyres don’t vary as much as mountain bike or even hybrid, but they still make a huge difference to how the bike rides. For a detailed look into road bike tyres, see our guide.

Road tyres have long been offered as either clincher or tubular. Clincher tyres are the standard tyres that fit onto standard rims with a tube holding the air. Tubular tyres are glued to a special tubular rim and are fully encased, doing without a tube.

Tubeless tyres are now a feature of road bikes, delivering a compromise between tubular and clincher tyres. They look the same as clincher tyres, but pair up with special rims to offer a proper seal within the tyres, also doing away with tubes.

Tyre Size

Road tyres are traditionally quite narrow. Nowadays the accepted standard is 25c, but 23c and 28c tyres are very common too. The larger the size tyre, the more comfortable they will be, but they will also be heavier and potentially slower rolling. Sportive and flat bar road bikes will commonly have wider tyres, whereas race and aero road bike will tend towards narrower tyres.
