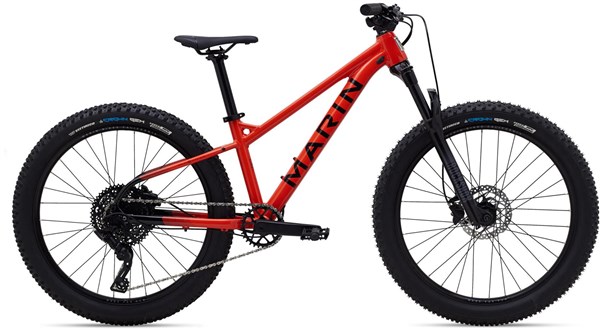

Marin San Quentin 24w 2021 - Junior Bike

£945.00
Price Match
or £26.22 / month
Finance Options
Ask a question
Sizing
Size
Colour
Add to Basket

Product Description

The San Quentin 24 and 20 is for the kid looking to explore everything an offroad bike can do from singletrack to park rides to just cruising the neighborhood in style.

Occasionally, without notice, manufacturers change product design and/or specifications.

Specification

Frame:Series 2 6061 Aluminum, 24” Wheels, Disc Specific, 135mm Dropouts
Fork:RockShox Judy Silver TK, 100mm Travel, Solo Air, 110x15mm Maxle Stealth
Headset:FSA No. 57E
Stem:Marin Alloy
Bars:Marin Riser, 31.8 clamp, 30mm Rise, 590mm Width
Front Brake:Shimano BR-MT201 Hydraulic, 160mm Rotor
Rear Brake:Shimano BR-MT201 Hydraulic, 160mm Rotor
Rear Mech:MicroSHIFT Advent 9-Speed
Shifters:MicroSHIFT Advent 9-Speed
Speed:9
Rims:Marin, Double Wall Alloy, 27mm Internal
Front Hub:Forged Aluminum, 32H, Disc Specific
Rear Hub:Forged Aluminum, 32H, Disc Specific
Spokes:14g Black Stainless Steel
Front Tyre:Vee Tire Crown Gem, 24”x2.6”, Wire Bead
Rear Tyre:Vee Tire Crown Gem, 24”x2.6”, Wire Bead
Seat Post:Marin Alloy, 30.9mm
Saddle:Marin Kids MTB
Chainset:Forged Alloy, Narrow Wide 30T, 152mm
Bottom Bracket:Sealed Cartridge Bearings, Square Taper
Chain:KMC X9
Cassette:MicroSHIFT 9-Speed, 11-46T
Pedals:Included

San Quentin Sizing

San Quentin Sizing

See the table below to find the right size Marin San Quentin.

Height

Size

4’8” / 143cm

XXS













4’9” / 145cm

XXS













4’10” /  148cm



XS











4’11” / 150cm



XS











5’0” / 152cm



XS











5’1” / 155cm



XS

S









5’2” / 158cm





S









5’3” / 160cm





S









5’4” / 163cm





S









5’5” / 165cm





S

M







5’6” / 168cm







M







5’7” / 170cm







M







5’8” / 173cm







M







5’9” / 175cm







M

L





5’10” / 178cm







M

L





5’11” / 180cm









L





6’0” / 183cm









L

XL



6’1” / 185cm









L

XL



6’2” / 188cm











XL



6’3” / 191cm











XL

XXL

6’4” / 193cm













XXL

6’5” / 196cm













XXL

6’6” / 198cm













XXL

Read our bike size guide for more information on sizing.



San Quentin Geometry

Size

S

M

L

XL

Stack

586.1

590.7

599.7

604.3

Reach



422

444

464

484

Head Tube Angle

65

65

65

65

Head Tube Length

105

110

120

125

Seat Tube Angle (Virtual)

75

75

75

75

Seat Tube Angle (Actual)

75

75

75

75

Seat Tube Length

385

420

475

515

Top Tube (Actual)

564

582

604

626

Top Tube (Effective)

579.1

602.3

624.7

645.9

Bottom Bracket Height

310

310

310

310

Bottom Bracket Drop

50

50

50

50

Chain Stay

425

425

425

425

Wheelbase

1144.8

1168.9

1193.1

1215.3

Standover Height

664

677

714

745

Fork Offset

46

46

46

46

Seatpost Diameter

30.9

30.9

30.9

30.9

Handlebar Width

780

780

780

780

Stem Length

45

45

45

45

Crank Length

170

175

175

175

Read our Mountain Bike Geometry Explained guide for more information on MTB geometry.

Please note, all size information is provided as a guide - if you're unsure or need any further assistance you can call us on 01792 799508 ... we're happy to help!

Junior Bike Guide



Junior Bike Guide

Who are junior bikes for?

Junior bikes bridge the gap between kids bikes and adult bikes. With 24” wheels junior bikes are ideal for children who are over 135cm (4’ 4”) tall, which is usually around the age of ten years. Junior bikes are much like scaled down adult bikes with a wide range of gears and powerful brakes. Like adult bikes, junior bikes are available in different styles. Hardtail mountain bikes are most popular, but you can also get full-on road bikes with drop handlebars, relaxed hybrids with baskets on the front and even mini full suspension MTBs.

Which is the best junior bike for my child?

The best junior bike for your child will depend on what type of cycling they like doing. Most kids at this age will not have settled on a specific cycling discipline, which is why hardtail junior mountain bikes are most popular as they offer all-round performance. Hardtail junior bikes, with flat handlebars, are a great choice for cycling around the local area on roads and cycle paths as well as off-road trails. These bikes are also ideal for Bike Ability cycle training as they are the easiest to ride.

If your child is a keen mountain biker or roadie then a junior road bike or higher spec MTB will be a better choice.

If your child is a keen mountain biker or roadie then a junior road bike or higher spec MTB will be a better choice.

What are the things to look for in a junior bike?


Frame and Fork

The best junior bike frames are built from aluminium alloy. This material is lightweight and robust, making it perfect for all types of junior cycles. Steel frames are just as strong as alloy, but are significantly heavier making them harder for youngsters to ride. Rigid forks are best for road cycling with aluminium alloy forks being lighter weight than steel ones.

Rigid forks are also good for light off-roading, but a suspension fork will give a smoother ride on rough surfaces. For proper off-road tracks a suspension fork is ideal.

For proper off-road tracks a suspension fork is ideal.

Wheels and Tyres

While all junior bikes have 24 inch wheels, the tyres vary quite a lot and this makes a big difference to how the bikes ride. Generally speaking the narrower a tyre is the faster it will roll, and the wider a tyre is the more grip it will offer. This means that wider tyres are better for off-roading while narrower tyres are better for tarmac cycling.

Wider MTB style tyres will have a knobbly tread pattern that offers grip on loose off-road surfaces. However the tread patterns are fairly shallow, so they still roll reasonably quickly on the road.

Common Junior Tyre Sizing Chart

Tyre Width

Best For

1.125”

Rapid road cycling

1.75”

General road cycling

1.95”

Road and off-road cycling

2.1” up

Off-road trails and gravel tracks

While all junior bikes have 24 inch wheels, the tyres vary quite a lot and this makes a big difference to how the bikes ride. Generally speaking the narrower a tyre is the faster it will roll, and the wider a tyre is the more grip it will offer. This means that wider tyres are better for off-roading while narrower tyres are better for tarmac cycling.

Wider MTB style tyres will have a knobbly tread pattern that offers grip on loose off-road surfaces. However the tread patterns are fairly shallow, so they still roll reasonably quickly on the road.

Common Junior Tyre Sizing Chart

Tyre Width

Best For

1.125”

Rapid road cycling

1.75”

General road cycling

1.95”

Road and off-road cycling

2.1” up

Off-road trails and gravel tracks






Gears

Most junior bikes feature derailleur gears to make cycling up and down hills easier. However more gears aren’t necessarily better. Bikes listed as having more than 10 gears usually feature double front chainrings, which many kids find difficult to manage. Single front chainrings with 6, 7, 8 or 9 speed cassettes are easier to use, especially on mountain and hybrid bikes, and still provide plenty of gear options for the climbs.

Road bike style junior bikes usually have double chainrings like their adult counterparts. These bikes are ideal for keen young road cyclists who want the performance of an adult bike.

Single front chainrings with 6, 7, 8 or 9 speed cassettes are easier to use.

Brakes

Like adult bikes, there are two types of brakes on junior bikes:

Rim brakes are the most affordable option and offer good stopping control, especially in dry weather conditions.

Disc brakes are becoming more popular and offer a big advantage over rim brakes as they work equally well in both wet and dry conditions. Hydraulic disc brakes are the most powerful and are easiest to use.

Rim brakes are the most affordable option and offer good stopping control.

Getting the Right Fit

Once you have chosen the correct size bike using the kids bike size tab information on the product page there are a couple of adjustments that you can make to get the perfect fit for your child.

Saddle Height

If your child is relatively unexperienced, then set the saddle height so that they can put both feet flat on the ground. This will give them the confidence to stop and start whenever they like and reduce the chances of them falling off. Once they are comfortable on the bike you can move the saddle up for a more efficient cycling position. See our saddle height-how to for step by step instructions.

If your child is relatively unexperienced, then set the saddle height so that they can put both feet flat on the ground.

Brake Reach

It is important that your child can reach the brakes easily without having to stretch their hands or unhook their thumb from the handle bars. It’s easy to adjust the reach of the brake levers and move them closer to the handlebars allowing them to brake more easily. Most brake levers have a small screw that moves the brake lever closer to the bars, all you need is a small screwdriver or allen key to do this. Some premium junior bikes even have a tool free reach adjustment nob. You may also need to adjust the brake cable tension with the barrel to get the brakes working optimally for your child.

It is important that your child can reach the brakes easily without having to stretch their hands.

Handlebar Height

While this is less important than saddle height, you can also adjust the handlebar height on junior bikes. This is easily done by repositioning the spacers (on a A-headset) or by loosening the expander bolt and repositioning the stem before retightening (on a quill stem). Start with the stem in its lowest position then move it higher it as they grow to maintain the ideal riding position.

Start with the stem in its lowest position then move it higher it as they grow to maintain the ideal riding position.

Bike Weight

After sizing, weight has the biggest impact on your child’s enjoyment while cycling. To understand why, remember that an adult bike can weigh around 20% of your body weight. Most kid's bikes can weigh up to a hefty 50% of their weight. Imagine strapping concrete blocks to your pedals and start riding, it wouldn’t be a nice experience. Generally speaking, the more you spend on a junior bike, the lighter it will be. This means the bike is easier to handle and manoeuvre, and that translates directly into fun and enjoyment.
