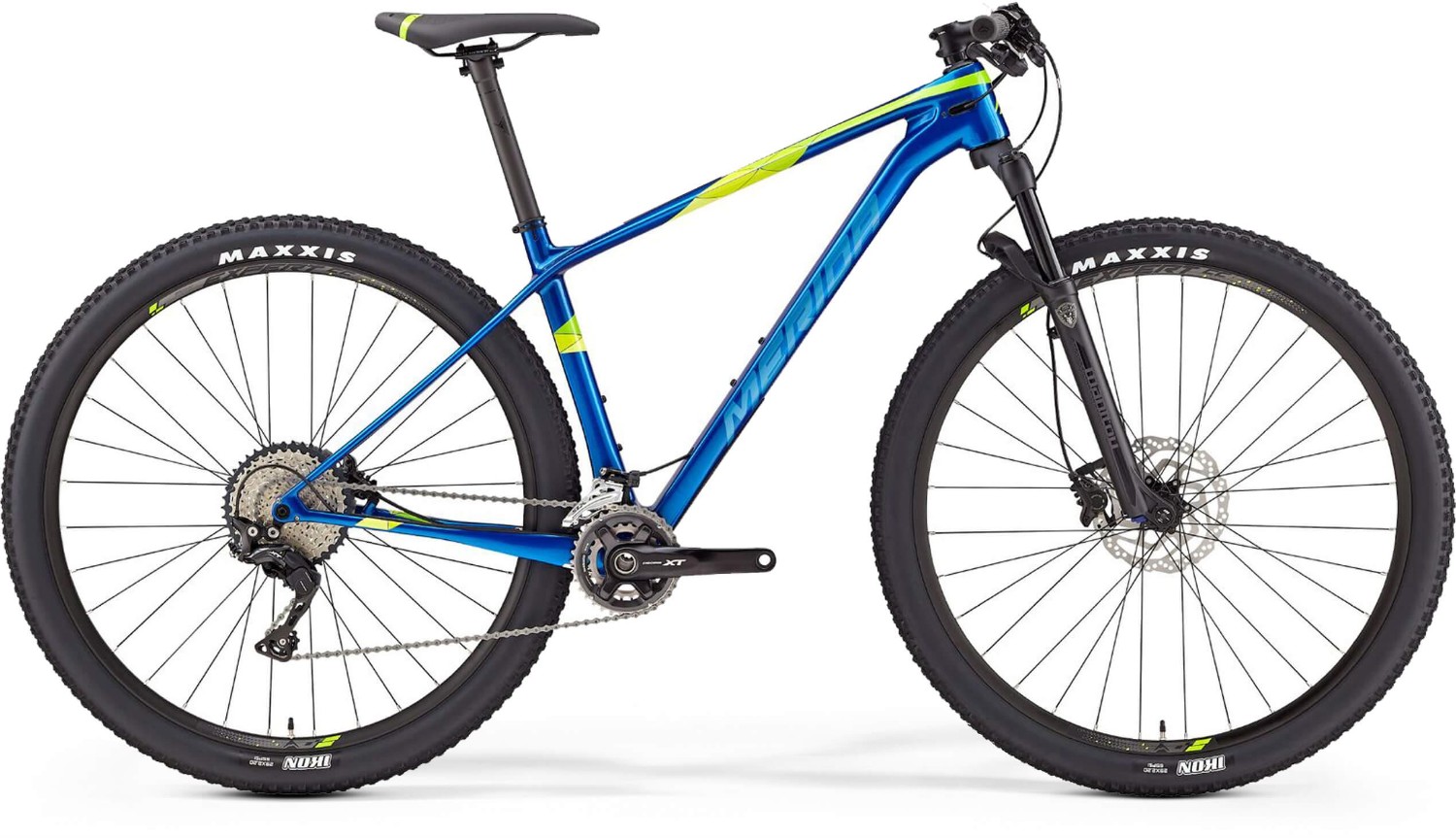

Merida Big Nine 5000 29" Mountain Bike 2019 - Hardtail MTB

- ShowProduct Information For 2019, carbon and premium aluminium frames are 29” wheel only, reflecting sales and the ethos “fo... read more
- Show Customer Reviews (0)
- Show Big Nine Sizing
- Show MTB Hardtail Guide
- Show Finance
- Show Delivery & Guarantee
- Show What's In The Box
Product Description
For 2019, carbon and premium aluminium frames are 29” wheel only, reflecting sales and the ethos “for speed you need big wheels and light weight”.
Geometry is competition focussed with a sharp, responsive ride. Key highlights; long reach, steep seat angle, slack head angle and low front end. A 30.9mm seat tube for internal cable dropper seat post allows for later upgrades.
The heart of the bike is the frame and this one has a less demanding carbon lay-up than the CF5. Aero profiled downtube, leaf spring profiled seat and chainstays for maximum comfort. Boost axles standard and tapered headtube for stiffness and steering precision. Smart Entry cable system for rattle free running. 1,290g – M +/- 3%
Occasionally, without notice, manufacturers change product design and/or specifications.
Specification
Frame: | CF3 – Less demanding carbon lay-up. Aero profiled downtube, profiled seat and chainstays for maximum comfort. Boost axles and tapered headtube for stiffness & steering precision. Smart Entry cabling for rattle free running. 1,290g – M +/- 3% |
Fork: | Manitou Markhor Comp; Air sprung; 100mm travel; Tapered steerer; Remote lockout |
Headset: | FSA NO.55E |
Stem: | Merida Expert CC; 31.8mm Oversize clamp; -6 degrees |
Bars: | Merida Expert CC; 720mm wide; flat |
Front Brake: | Shimano MT-500 hydraulic with Shimano RT10 180 / 160mm rotors |
Front Mech: | Shimano SLX |
Rear Mech: | Shimano XT Shadow+ |
Shifters: | Shimano SLX, 22 speed |
Speed: | 22 |
Rims: | Merida Expert CC; 22.8mm inner width |
Front Hub: | Shimano MT400-B; Boost standard 15mm bolt through front; Shimano MT400-B; Boost standard 12mm bolt through |
Rear Hub: | 32 spokes centre lock |
Spokes: | Double Butted Black stainless |
Front Tyre: | Maxxis Ikon; 29" x 2.2"; kevlar bead |
Rear Tyre: | Maxxis Ikon; 29" x 2.2"; kevlar bead |
Seat Post: | Merida Expert CC; 30.9mm diameter; in line; Carbon |
Saddle: | Merida Comp CC |
Chainset: | Shimano XT; 34-24 teeth |
Bottom Bracket: | Shimano MT800-PA pressfit |
Chain: | KMC X11-1 |
Cassette: | Shimano M7000; 11-42 teeth; 11 speed |
Pedals: | Not Included |
