(no reviews)Product ID: 264652

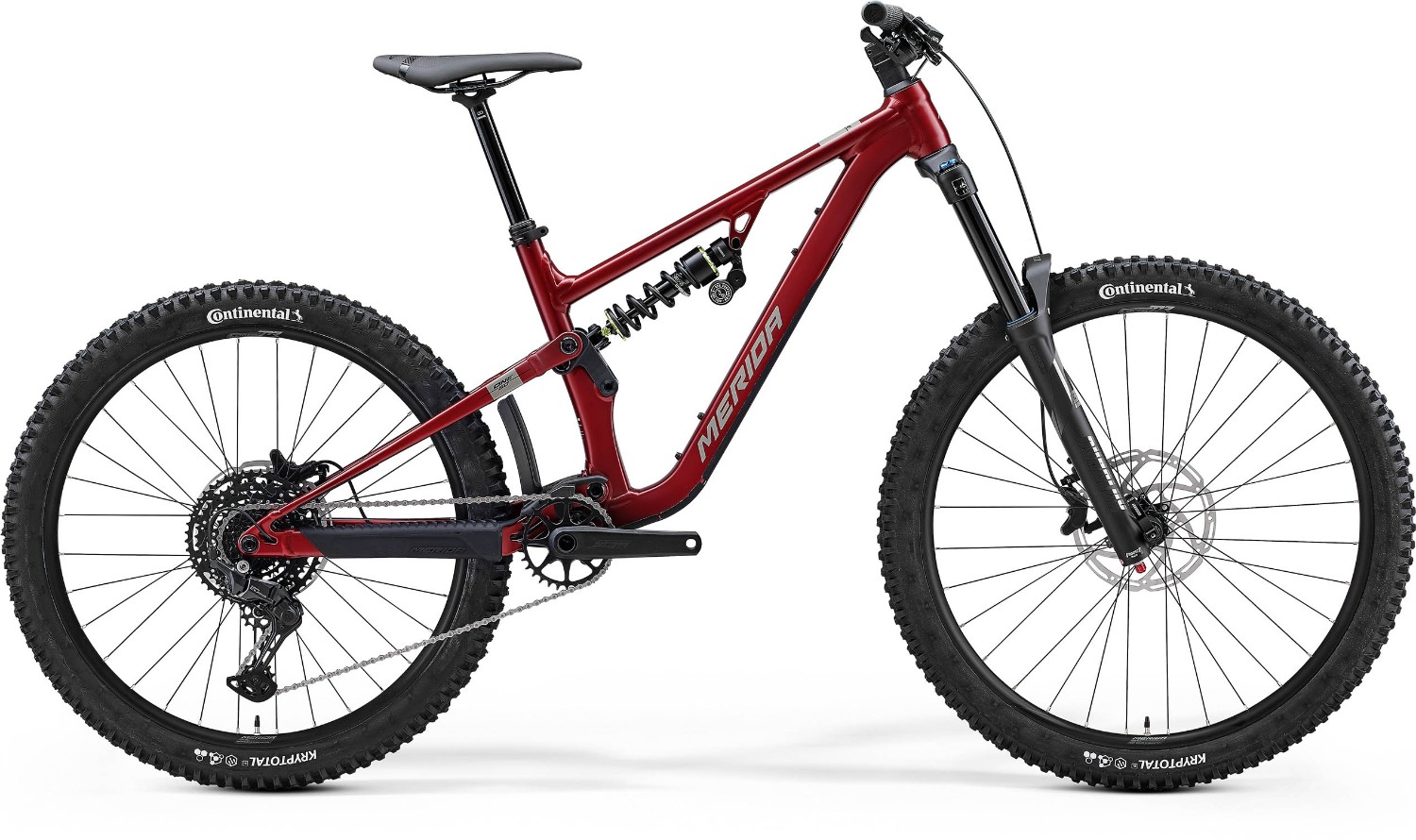

Merida One-Sixty FR 400 Mountain Bike 2025 - Enduro Full Suspension MTB
The Merida One-Sixty FR 400 is designed around a robust Lite aluminium frame with next-generation enduro geometry. Boasting a 180mm Sr Suntour Durolux fork and a coil-sprung DVO Jade X D3 rear shock, it's primed for conquering the toughest terrains with ease. The Agilometer sizing concept allows riders to customize their reach independently of height, ensuring a tailored fit for every adventure.
Merida One-Sixty FR Review
Key Features:
- Frame: Lite aluminium, enduro geometry, internal cable routing, boost axles, threaded BB, flip chip for mullet or 29er, max tyre size - 2.5"
- Front Suspension: Sr Suntour Durolux 38 RC, 180mm travel, tapered, 44mm fork offset, max tyre size: 29" x 2.6"
- Rear Suspension: DVO Jade X D3, coil
- Brakes: Tektro Gemini M535 4-piston hydraulic disc with 203mm rotors
- Wheels: Merida Comp TR II, front 29", rear 27.5", tubeless-ready, 28mm inner rim width
- Drivetrain: Shimano Deore 10-speed, Merida Expert TR chain guide
- Tyres: Continental Kryptotal-F (29") front, Kryptotal-R (27.5") rear, 2.4" width, Enduro casing
- Seat Post: Merida Expert TR II, adjustable travel (150mm - 200mm based on size)
- Agilometer Sizing: Customizable reach independent of height
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5" |
| Fork | SR Suntour Durolux 38 RC; Air; 180mm travel; Tapered; 44mm fork offset; Max tyre size: 29" x 2.6" |
| Rear Shock | DVO Jade X D3; coil |
| Headset | Acros ICR Merida external neck; Upper and lower IPS sealing |
| Stem | Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise. Stem length: 40mm all sizes |
| Bars | Merida Expert TR II; aluminium; 780mm wide; XS/S 18mm rise; M/L/XL 30mm rise |
| Front Brake | Tektro Gemini M535 4 piston hydraulic disc brake caliper with Tektro TR203-45 203mm rotor |
| Rear Brake | Tektro Gemini M535 4 piston hydraulic disc brake with Tektro TR203-45 203mm rotor |
| Brake Lever | Tektro Gemini M535 |
| Rear Mech | Shimano CUES U6000; GS |
| Speed | 10 |
| Rims | Merida Comp TR II; 110x15mm; 148x12mm; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5" |
| Front Hub | Shimano TC500-B; 110x15mm; 32 spokes; Centerlock |
| Rear Hub | Shimano TC500-HM-B; 148x12mm; 32 spokes; Centerlock with Merida Comp TR axle including removable 6mm allen key |
| Spokes | Double Butted Black stainless |
| Front Tyre | Continental Kryptotal-F; 29" x 2.4"; Kevlar bead, folding; TR; Enduro casing; Soft Compund |
| Rear Tyre | Continental Kryptotal-R; 27.5" x 2.4"; Kevlar bead, folding; TR; Enduro Casing; Soft Compound |
| Seat Post | Merida Expert TR II; 34.9mm diameter; 0mm lay back; XS/S: 150mm seat post travel - M: 170mm seat post travel - L/XL: 200mm seat post travel |
| Saddle | Merida Comp SL with V-mount |
| Chainset | Merida Expert TR; 32 tooth chainset; crank length 170mm all sizes with Merida Expert TR ISCG05 chainguide |
| Chain | Shimano LG500 |
| Cassette | Shimano LG300; 11-48 teeth; 10 speed |
| Pedals | Resin Platform |
Merida One-Sixty FR 2025 Size Chart
|
Frame Size |
Height cm |
Height Feet / Inches |
|
S |
< 173 cm |
<5’8” |
|
M |
167 - 183 cm |
5’6” – 6’0” |
|
L |
177 - 190 cm |
5’10” – 6’3” |
|
XL |
> 187 cm |
>6’2” |
What size frame do I need if I am between sizes? - read here
Merida One-Sixty FR 2025 Geometry Chart
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Stack | 615 | 615 | 615 | 625 | 638 |
| Reach | 415 | 442 | 470 | 498 | 525 |
| Head Tube Length | 95 | 95 | 95 | 105 | 120 |
| Head Tube Angle | 64 | 64 | 64 | 64 | 64 |
| Bottom Bracket Drop | 7 | 7 | 7 | 27.5 | 27.5 |
| Fork Length | 581 | 581 | 581 | 581 | 581 |
| Chainstay Length | 434 | 434 | 434 | 437.5 | 437.5 |
| Wheelbase | 1188 | 1215 | 1242 | 1275 | 1308 |
| Top Tube Length (horizontal) | 535 | 562 | 589 | 621 | 653 |
| Seat Tube Length | 400 | 410 | 425 | 445 | 470 |
| Seat Tube Angle | 79 | 79 | 79 | 79 | 79 |
| Tyre Size | 29/27.5" | 29/27.5" | 29/27.5" | 29" | 29" |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
