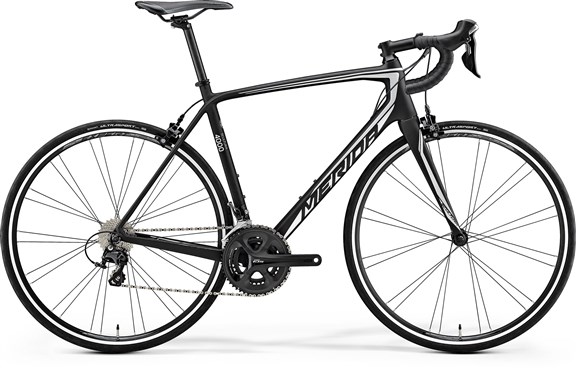

Merida Scultura 4000 2018 - Road Bike
Cutting edge road race design and performance. The Merida Scultura 4000 is a road bike that features a lightweight carbon fibre frame. The Scultura features aero tube shapes, to help you slice through the air faster, alongside slim seatstays, for a smoother ride. You get a tapered steerer tube on the full carbon fork for precise steering control.
Key Features:
- Lightweight CF2 carbon fibre composite frame features aero tube profiles to help you slice through the air
- Full carbon fibre composite fork, with tapered steerer for precise steering control
- Internal cable routing for cleaner lines
- Shimano 105 2x11 speed drivetrain for slick shifting with a good spread of gears
- Sizes: Small (47cm), Small (50cm), Small/Medium (52cm), Medium/Large (54cm), Large (56cm), X Large (59cm)
- Colour: Black/Dark Silver, Bahrain
- The Merida Scultura 4000 is available with 0% APR finance
Lightweight race pedigree – The Scultura is a lightweight racing bike that is at the cutting edge of design. Aluminium and CF2 carbon models offer a more comfortable ride. CF4 carbon geometry is more race focused.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on baskets over £99
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
Merida Scultura 2024 Sizing
| FRAME SIZE | HEIGHT (cm) | HEIGHT (ft) |
| XXS | 150 - 158 | 4'11" - 5'2" |
| XS | 159 - 165 | 5'3" - 5'5" |
| S | 166 - 173 | 5'5" - 5'8" |
| M | 174 - 182 | 5'9" - 5'11" |
| L | 183 - 189 | 6'0" - 6'2" |
| XL | 190 - 200 | 6'3" - 6'7" |
Merida Scultura 2024 Geometry
| FRAME SIZE | XS | S | M | L | XL |
| TYRE SIZES | 28" | 28" | 28" | 28" | 28" |
| SEAT TUBES (mm) | 458 | 481 | 501 | 521 | 550 |
| TOP TUBES (mm) | 535 | 545 | 560 | 575 | 590 |
| CHAIN STAYS (mm) | 408 | 408 | 408 | 408 | 408 |
| HEAD TUBE ANGLE [°] | 72 | 72.5 | 73.5 | 73.5 | 74 |
| SEAT TUBE ANGLE [°] | 74 | 74 | 73.5 | 73 | 73 |
| BOTTOM BRACKET DROPS (mm) | 70 | 66 | 66 | 66 | 66 |
| HEAD TUBE LENGTHS (mm) | 112 | 128 | 140 | 155 | 176 |
| FORK LENGTHS (mm) | 385 | 385 | 385 | 385 | 385 |
| REACH (mm) | 383 | 390 | 395 | 400 | 409 |
| STACKS (mm) | 529 | 542 | 557 | 571 | 593 |
| WHEEL BASE (mm) | 982 | 989 | 990 | 1000 | 1010 |
| STAND OVER HEIGHT (mm) | 745 | 765 | 782 | 800 | 823 |
What size frame do I need if I am between sizes? - read here
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Merida Scultura 4000 2018 - Road Bike.
This product is no longer available.
