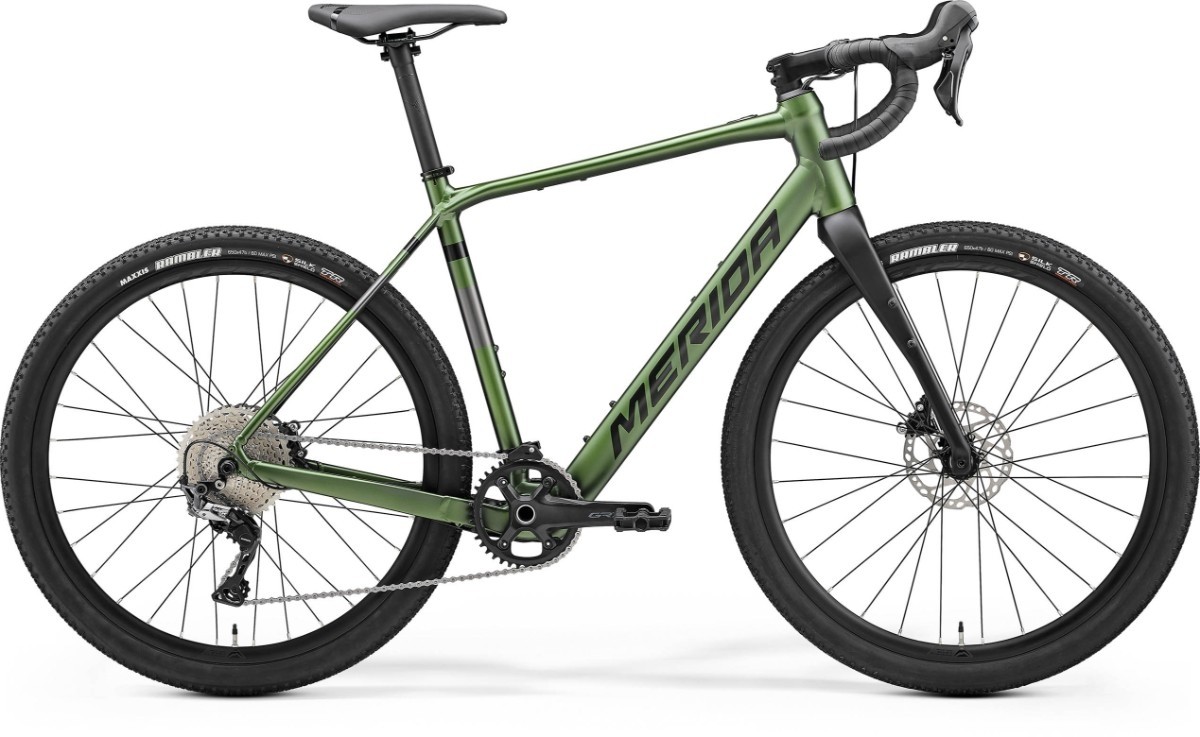

Merida eSilex 600+ - Nearly New - M 2024 - Electric Gravel Bike
Tackle limitless adventures with the Merida eSilex 600+. This bike is powered by MAHLE's ebikemotion system, featuring a 40Nm rear hub motor and an integrated 250Wh battery concealed within the downtube. The Lite ii hydroformed 6066 aluminum frame, coupled with a carbon fork, ensures a lively ride even without power assistance. Equipped with Shimano GRX components, hydraulic disc brakes, and Maxxis Rambler tires, it's ready for varied terrain and extended exploration.
- Frame: Lite ii hydroformed 6066 aluminum, integrated battery chamber, mudguard, rack, and kickstand mounts
- Fork: Merida Silex CF2, tapered carbon, versatile tire size compatibility
- Drivetrain: Shimano GRX600, 11-speed, 40-tooth chainring
- Brakes: Shimano GRX600 2-piston hydraulic disc brakes
- Wheels: Merida Expert CX, 19mm inner rim width, tubeless-ready
- Other Feature: Dual wheel compatibility (700c or 650b), hidden kickstand mount
- Finance Option: Available with 0% APR finance.
- Motor: MAHLE B1-D, 250Wh, MAHLE X35+ hub motor (40Nm)
- Battery: 250Wh capacity
- User Interface: Colour-coded iWoc power button for intuitive control.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite II - Hydroformed 6066 triple butted aluminium with integrated battery chamber, mounts for mudguards, rack and kickstand. 9mm QR axle standard, BSA BB standard. Max. tyre size 700 x 45c without mudguards, 700 x 42c with mudguards |
| Fork | Merida Silex CF2; Tapered; carbon, Max. tyre size: 700 x 42c without mudguards, 700 x 35c with Mudguards. Max 27.5" x 50c |
| Headset | Merida 8158 |
| Stem | Merida Expert IR II; aluminium; 31.8mm diameter; 5 degree rise; length: 80mm all sizes |
| Bars | Merida Expert GRII; aluminium; 400mm (XS/S), 420mm (M), 440mm (L/XL) |
| Front Brake | Shimano GRX600 2 piston hydraulic disc brake caliper with Shimano RT64 160mm rotor |
| Rear Brake | Shimano GRX600 2 piston hydraulic disc brake caliper with Shimano RT66 160 mm rotor |
| Brake Lever | Shimano GRX600 |
| Rear Mech | Shimano GRX812 |
| Speed | 11 |
| Rims | Merida Expert CX; 19mm inner rim width; 24mm rim depth; aluminium; Tubeless ready (tubeless tape and valves not included) |
| Front Hub | VP CLK170F; 100 x 12mm; 28 spokes; Centerlock with Merida Expert SL axle |
| Rear Hub | MAHLE X35+ Hub motor; 40Nm |
| Spokes | Black stainless |
| Front Tyre | Maxxis Rambler, 650B x 47C; ShieldWall / TLR |
| Rear Tyre | Maxxis Rambler, 650B x 47C; ShieldWall / TLR |
| Seat Post | Merida Expert CC; carbon; 30.9mm diameter; in-line |
| Saddle | Merida Comp CC; V-mount |
| Chainset | Shimano GRX600; 40 tooth chainring with 170mm-XS/S/SM/ML, 175 mm-L/XL crank with Mr. Control CH-CM1 chain device |
| Bottom Bracket | Shimano BSA |
| Chain | KMC E11S |
| Cassette | Shimano M5100; 11-42 teeth; 11 speed |
| Pedals | VP Components - VPE-891 |
| Battery Size (WH) | 250wh |
| Motor | MAHLE B1-D; 250Wh, MAHLE X35+ Hub motor; 40Nm |
| User Interface | Colour coded iWoc power button |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
