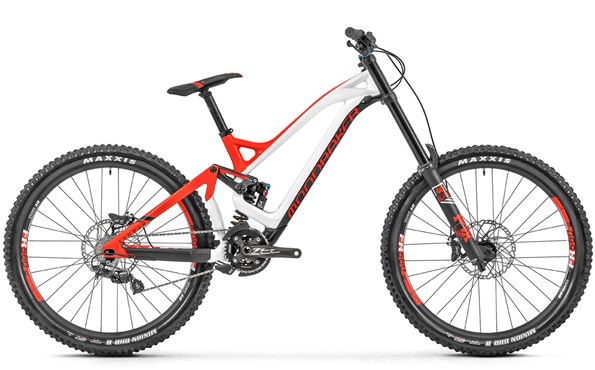

Mondraker Summum Carbon Pro 27.5" Mountain Bike 2019 - Downhill Full Suspension MTB

Buy Today and Save in our Big Bike Sale
Now £4,350.00
Save £1,449.00 RRP: £5,799.00
Price Match
or £90.63 / month
Finance Options
Be the first to write a review
Sizing
Select a size
Colour
Add to Basket

Cycle to Work

Product Description

World Championship winning DH performance. The Mondraker Summum Carbon Pro is a downhill bike that has an impressive race pedigree. With Mondraker’s Forward Geometry and Zero Suspension System this is a bike for pushing your limits on the most challenging mountain bike trails on the planet.

Key Features:

  • Full stealth carbon frame with Forward Geometry for a confident ride
  • Fox 40 Float Grip fork for confident front-end control
  • Fox DHX2 Performance Elite shock controls the 205mm of rear wheel travel
  • Shimano Zee groupset for rugged reliability
  • DT Swiss FR560 27.5” tubeless ready rims
  • Sizes: Small, Medium, Large, X Large
  • Colour: Red/White
  • The Mondraker Summum Carbon Pro is available with 0% APR finance

Mondraker's global flagship, the most recognised Mondraker Bike ever and the World Champion winning bike. In 2016 the Summum made history achieving, for the first time ever, gold, silver and bronze medals at the UCI Downhill World Championship at Val Di Sole. The Summum showcases Mondraker's benchmark Forward Geometry and Zero Suspension System technologies.

The 2019 Summum features Stealth full carbon frame, Fox 40 Performance Elite forks, Fox DHX2 Performance Elite rear shock, DT Swiss tubeless ready rims, Shimano 10 Speed drivetrain and Shimano Zee disc brakes.

All Tredz bikes are:

  • Fully built & ready to ride
  • Fully checked & tested by Cytech qualified mechanics
  • Available with 0% APR finance on baskets over £99
  • UK price match
  • 365 day no hassle returns
  • Free delivery in the UK Mainland on a date that suits you

In the box with every Tredz bike is:

  • Free Tredz 9 key trail tool
  • Free Tredz pedal spanner
  • Free basic pedals
  • Tredz drawstring kit bag
  • 16 point quality control check sheet
  • Basic bike setup instructions
  • Free Cycle Plan insurance voucher (8 weeks)

Occasionally, without notice, manufacturers change product design and/or specifications.

Specification

Frame:Summum 27.5" Stealth Full Carbon Zero Suspension System FG 205mm
Fork:Fox 40 27.5" Float GRIP LSC Performance Elite 20mm 1-1/8" 203mm
Rear Shock:Fox DHX2 Performance Elite 222x70mm
Headset:OnOff Mercurium 1.5 ZS Integrated Reduced
Stem:OnOff Stoic DH Integrated FG 20-30mm
Bars:Mondraker Custom Design 1.0 780mm
Front Brake:Shimano ZEE 203mm
Rear Brake:Shimano ZEE 203mm
Brake Lever:Shimano ZEE
Front Mech:Chainguide e*thirteen LG1+ ISCG05 with Bash
Rear Mech:Shimano ZEE RD-M640-SS 10s
Shifters:Shimano SL-M640 10s
Speed:10
Rims:DT Swiss FR560 27.5" TLR
Front Hub:MDK Disc Pro DH 20mm
Rear Hub:MDK Disc Pro DH 12x150mm
Spokes:CN Stainless Butted
Front Tyre:Maxxis Minion DHR II Super Tacky Compound Wire 27.5x2.4"
Rear Tyre:Maxxis Minion DHR II Super Tacky Compound Wire 27.5x2.4"
Seat Post:SDG I-Beam SP-751 31.6 300mm
Chainset:Shimano ZEE M645 165mm 36T
Bottom Bracket:Shimano 83mm
Chain:Shimano HG95 10s
Cassette:Shimano CS-HG500-10 11-25T
Pedals:Not Included

There are currently no customer reviews

Write your own review

Summum Sizing

Summum Sizing

See the table below to find the right size Mondraker Summum Sizing.

 Height

<165cm

165 – 170cm

170 – 175cm

175-180cm

180 – 185cm

185 -190cm

190 – 195cm

>195cm

Size

Small

Small/Medium

Medium

Medium/Large

Large

Large/X Large

X Large

X Large



Read our bike size guide for more information on sizing.



Summum Geometry

Frame Size

Small

Medium

Large

X Large

Seat Tube Length

400mm

400mm

400mm

400mm

Top Tube Length

575mm

600mm

622mm

647mm

Bottom Bracket Drop

0mm

0mm

0mm

0mm

Bottom Bracket Height

350mm

350mm

350mm

350mm

Chain Stay Length

445-460mm

445-460mm

445-460mm

445-460mm

Seat Tube Angle, Actual

65 Degrees

65 Degrees

65 Degrees

65 Degrees

Seat Tube Angle, Effective

73.5 Degrees

73.5 Degrees

73.5 Degrees

73.5 Degrees

Head Tube

65 Degrees

65 Degrees

65 Degrees

65 Degrees

Fork Offset

52mm

52mm

52mm

52mm

Wheelbase

1200mm

1225mm

1250mm

1280mm

Head Tube Length

112mm

112mm

122mm

122mm

Reach

397mm

422mm

442mm

468mm

Stack

597mm

597mm

606mm

606mm

Read our Mountain Bike Geometry Explained guide for more information on MTB geometry.

Please note, all size information is provided as a guide - if you're unsure or need any further assistance you can call us on 01792 799508 ... we're happy to help!

Full Sus MTB Guide



Is a full-suspension mountain bike right for me?

If you’re new to the world of cycling, we highly recommend taking a look at our bike buying guide overview or our mountain bike buying guide to help you decide what type of bike is right for your needs.

When you’re choosing a full suspension mountain bike, there are a few things to look out for which can help you to work out the quality and performance you can expect from a particular model.


Suspension travel & usage

Depending on the type of mountain bike riding you’ll be doing, you may want to have longer or shorter suspension travel on your bike:

Travel

Usage

Pros

Cons

Up to 120mm

XC

Lightweight & efficient pedalling for long-distance rides

Short travel is less capable on rough & demanding trails with large jumps & drops

120 – 150mm

Trail

Lightweight, balance of climb-friendly efficiency & rough-descent capability

More weight than a shorter travel bike & less efficient climbing. Less capable on descents than a longer travel bike

150-180mm

Enduro

Capable of covering difficult & technical downhill sections. Wide enough gear range for climbing

Heavier & significantly less efficient at climbing compared to shorter travel bikes

180mm +

Downhill

Designed for highly technical & high-speed descents, with big drops and large jumps

Heavy, and inefficient at climbing. Limited gear range means most climbs will require pushing the bike


Frame material

Full-suspension MTB frames are mostly made from either aluminium or carbon fibre, with each material having its own benefits & drawbacks.

Aluminium

Aluminium is lightweight, stiff, strong, and easy to manufacture. Manufacturers often develop their own aluminium alloys, such as ALUXX by Giant. Aluminium is found on a wide range of bikes, from entry-level & enthusiast bikes, right the way up to top-spec racing bikes.

Carbon

Carbon fibre is lighter, stiffer, stronger, and more expensive than aluminium. The most affordable carbon bikes typically use medium strength carbon fibres, while the most expensive bikes use stronger ‘high modulus’ carbon. Carbon fibre frames are found on enthusiast-level bikes, right up to high-performance bikes designed for racing.


Groupset & drivetrain

A bike’s groupset, or drivetrain, is where the biggest difference in component quality is seen.
A complete groupset comprises of the following parts:

  • Chainset (aka Crankset)
  • Bottom bracket
  • Brakes
  • Brake levers
  • Shifters
  • Front & rear derailleur
  • Chain
  • Cassette
MTB Groupsets

Mountain bike groupset components are typically supplied by either Shimano or SRAM, with additional manufacturers like Formula, Hope, Magura, Tektro and TRP supplying brake systems. Shimano & SRAM both produce a range of groupsets to suit different budgets. The hierarchy table here compares the different Shimano & SRAM groupsets to determine which bikes offer the best performance.


Wheel size

You’ve probably noticed that a lot of mountain bikes come in a choice of wheel size, mainly a 27.5 inch wheel (also known as a 650B wheel) or a 29inch wheel (known as a 29er). Although there are still bikes which use 26 inch wheels, these are gradually being phased out on all but the smallest bikes. The difference between these wheel sizes can have a dramatic effect on the way a bike feels and handles out on the trail.

27.5in/650b Wheels

27.5inch wheels are smaller and lighter than 29er wheels, which makes them more agile and gives the bike a more responsive & playful nature. On the other hand, the smaller wheel size rolls less efficiently than the larger size, making the bike more prone to losing speed over rough ground and making it a little slower when climbing.

29er Wheels

29er wheels have a bigger rolling radius which makes them naturally smoother over rough ground. For this reason, a 29er mountain bike often requires less suspension travel than smaller wheeled alternatives. The downsides are an increase in weight, and the larger diameter wheels generate stronger gyroscopic forces, making the bike more stable, but less agile and responsive whilst manoeuvring.

26in Wheels

26 inch wheels were once the go-to wheel size on adult mountain bikes. However, they are now typically only found on the smallest frame sizes, and on junior bikes. 26 inch wheels are lightweight and give the bike very agile handling. The downsides to 26 inch wheels are their poor rolling resistance on rough ground, and the reduced contact patch due to the smaller wheel circumference.


Suspension components

Mountain bike suspension components (i.e. the fork or rear shock absorber) are also a way to identify the quality of a bike. While Fox and RockShox are the most common manufacturers, there are a number of brands producing suspension components for mountain bikes.

Entry level full suspension mountain bikes (up to approximately £1300) may come supplied with a fork & rear shock supplied by SR Suntour, X-Fusion or RockShox. These components will allow a limited amount of adjustment, including:

  • Coil spring preload / air spring pressure adjustment
  • Lockout switch
  • Rebound damping adjustment on models towards the top of the price range.

Mid-range & enthusiast bikes (up to approximately £3500) use components from brands including Fox, RockShox and Manitou. At this level, suspension components have features like:

  • Preload adjustment / air spring pressure adjustment
  • Rebound damping adjustment
  • Lockout switch
  • Multi-position ‘mode’ switch
  • Components towards the top end of the enthusiast price range may also feature compression damping adjustment as well.

Top of the range & competition spec bikes (over £3500) also use components from Fox, RockShox & Manitou, with a few select models using parts from Ohlins. At this price, suspension components have features including:

  • Coil spring preload adjustment / air spring pressure adjustment
  • High & low speed rebound damping adjustment
  • High & low speed compression damping adjustment
  • Lockout switch
  • Multi-position 'mode' switch
  • Advanced low-friction coatings (e.g. Fox’s golden-coloured Kashima coating)
