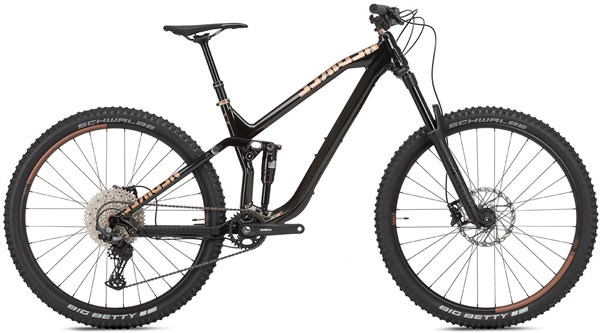

NS Bikes Define AL 150 2 29" Mountain Bike 2021 - Trail Full Suspension MTB
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | NS Define AL w/ 150mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes, |
Fork | RockShox 35 Gold RL 160mm travel, 110x15mm Boost, 1.5T, 44mm offset |
Rear Shock | X-Fusion O2 RLX Trunnion 205x62.5mm |
Headset | integrated tapered IS42/IS52, sealed bearings |
Stem | NS Tone 35, 45mm |
Bars | NS Bar 35, 800mm, 20mm rise |
Front Brake | Formula Cura, 200mm |
Rear Brake | Formula Cura, 180mm |
Brake Lever | Formula |
Rear Mech | Shimano Deore M6100, 12spd |
Shifters | Shimano Deore M6100, 12spd |
Speed | 12 |
Rims | Octane One Solar 29”, tubeless compatible |
Front Hub | NS 110x15mm Boost (sealed bearings) |
Rear Hub | NS 148x12mm Boost (sealed bearings) |
Spokes | Spokes w/14mm nipples |
Front Tyre | Schwalbe Big Betty BikePark 29x2.4" |
Rear Tyre | Schwalbe Big Betty BikePark 29x2.4" |
Seat Post | X-Fusion Manic internal S:125mm, M:150mm, L:170mm |
Saddle | Octane One Rocket2, CrMo hollow rails |
Chainset | Praxis Cadet HD 170mm 32t |
Bottom Bracket | Shimano BSA 73mm |
Chain | Shimano, 12 spd |
Cassette | Sunrace CSMZ800, 12spd 11-51T |
Pedals | Resin Platform |
Weight | 15.1 KG |
Mountain Bike Size Chart
Height
|
Bike Size
|
Mountain Bike Size
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
