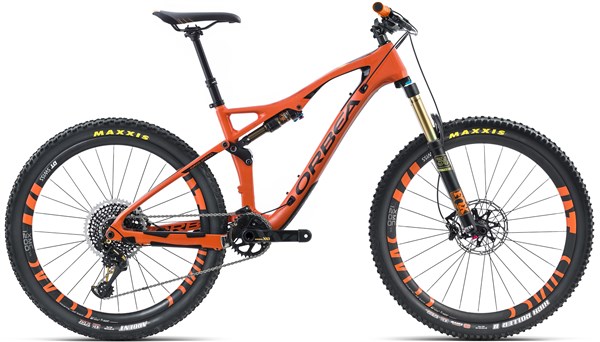

Orbea Occam AM M-LTD 27.5" Mountain Bike 2017 - Full Suspension MTB
Out of Stock Sorry, you missed it. But you still have options...
New Product There's a newer version of this product now available...
Recommended alternatives We've found some more items that may interest you...
- Show Recommended Products You may also like...
- Show Top Rated Our top rated products...
- Show Best Deals Great products, low prices...
- Show New in Full sus short travel MTB See the latest products
New in Full sus short travel MTB
Archive Product Details Comparing? Here's the info from the out of stock item
- ShowProduct Information Singletrack filled with rocks and roots. Loose climbs that take finesse to finish without walking. S... read more
- Show Customer Reviews (0)
- Trail Geometry - The TR/AM Trail Geometry concept divides the Occam family into Occam TR and Occam AM models. Shorter travel TR models take advantage of fast-rolling 29" wheels while the AM varieties pack more bump-eating suspension into a manageable size using 27.5" wheels. Our consistent and proportional stack and reach measurements guarantee that every rider experiences flawless handling in a svelte, fun and fast bike regardless of frame size or wheel size.
- Monocoque Carbon - We use the most technologically advanced carbon construction available to make the most sophisticated frame possible - A complex and painstaking process with results you will appreciate on the trail.
- Advanced Dynamics - Advanced Dynamics is not a design, but a development process. Our unique method transforms virtual models into real, highly-refined machines. Bikes for demanding riders that are faster, more fun to ride and far beyond ordinary. The leverage ratio curve of the Occam is perfect for efficient trail riding.
- UFO - We've done away with the pivot point at the rear axle. The flexible seat stay design creates an ultralight bike that requires little maintenance and offers stiffness and acceleration like you've never felt in a full suspension bike. UFO saves over 140g and results in a faster Occam.
- Boost - Occam is precise and responsive with 425/435mm chainstays and the excellent rigidity of a 12mm through-axle system. The Boost 148 standard widens rear axle spacing to 148mm which moves the chainline outboard by 3mm and increases the space available at the bottom bracket.
The Orbea Occam AM M-LTD 650b 2017 Features are:
Frame: Orbea Monocoque Race Carbon. Advanced Dynamics 140mm suspension with UFO technology. 27,5" wheels. Boost 12x148 rear axle. Trail III geometry. Internal cable routing. PF92 Press fit
Rear Shock: Fox Float DPS Factory 3-Position Adjust LV EVOL Kashima custom tune 200x51mm
Fork: Fox 34 Float Factory 140 FIT4 3-Pos-Adj QR15x110 Kashima
Headset: FSA 1-1/8 - 1-1/2" Integrated
Bars: Race Face Next SL 35mm Riser 760mm
Stem: Race Face Turbine 35mm interface
Rear Mech: SRAM XX1 Eagle Gold
Shifters SRAM XX1 Eagle
Chainset: SRAM XX1 Eagle Bosst 34t Gold
Cassette: SRAM X01 XG-1295 Eagle 11-50t 12-Speed
Chain: SRAM XX1 Eagle 12-Speed
Front Brake: Avid Ultimate Carbon Hydraulic Disc
Rear Brake: Avid Ultimate Carbon Hydraulic Disc
Rims: DT Spline XMC-1200 TLR 15/110mm CL
Tyres: Maxxis Ardent 2,25" TLR 60 Tpi Exo Dual Front,
Maxxis Ardent 2,25" TLR 60 Tpi Exo Dual Rear
Seatpost: Race Face Turbine Dropper 31.6x375/125mm
Pedals: Not Included
Note: Occasionally, without notice, manufacturers change product design and/or specifications.
