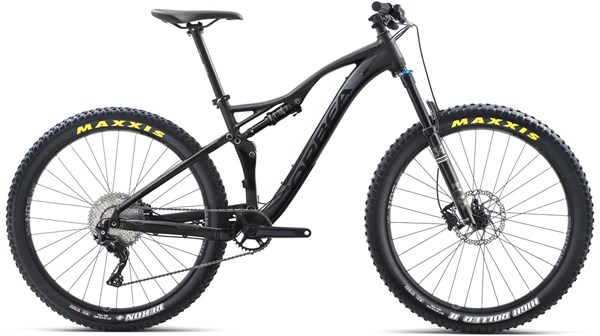

Orbea Occam TR H20-Plus 27.5" Mountain Bike 2018 - Trail Full Suspension MTB

or £72.20 / month
Finance Options
Be the first to write a review
Select a size
Select a colour
Add to Basket

Free insurance Includes 8 weeks Free Bike Insurance. Find out more.

  • Product Information
  • Reviews (0)
  • Occam Sizing
  • Full Sus MTB Guide
  • 0% APR Finance
  • Delivery & Guarantee
  • What's In The Box
  • Product Description

    Traction in spades. The Orbea Occam TR H20 trail bike features 27.5-plus wheels, which allows the full sus frame to grip in even the worst conditions. This is an MTB to conquer climbs and descents with ease.

    The Occam TR is built around 29er and 27.5-plus wheels, being easily converted between the two. The frame features hydroformed tubing that’s been triple butted to reduce material in places where it’s not needed, while maintaining the strength to take abuse on the trails. The frame features Boost 12x148mm spacing to keep the rear nice and short for nimble handling and greater tyre clearance. It has 120mm travel, plenty for tackling near any trail. It is controlled by a Fox Float DPS Performance rear shock with 3-position compression settings.

    To match the rear, a Fox 34 Float Performance fork comes with 130mm travel and is superb at taming the trail with its 3-position compression settings and Boot 15x110mm spacing.

    Shimano takes care of the drivetrain duties with a combination of SLX & XT parts making up the 2x11 speed setup, giving plenty of gearing options for any scenario. Giving you plenty of stopping power, a pair of Shimano MT500 disc brakes reliable and consistent braking.

    The Sun Ringle Duroc 27.5 Tr40 fir the 3.00” and 2.8” Maxxis tyres easily, giving excellent support for these plus-sized tyres.

    Point it up or down, the Orbea Occam TR H20-Plus will get you grinning.

     Key Features:

    • Occam TR Hydro Triple Butted alloy frame with 120mm travel and Boost 12x148mm spacing
    • Fox Float DPS Performance 3-Position Evol rear shock controls the rear suspension
    • Fox 34 Float Performance with 130mm of supple travel and Boost 15x110mm spacing
    • Shimano XT/SLX 1x11 speed drivetrain offers precise shifting and wide gearing
    • Shimano MT500 hydraulic disc brakes offer reliable, consistent stopping power
    • Sun Ringle Duroc 27.5 Tr40 wheels for large, 3.00” tyres
    • Orbea Lifetime Warranty
    • Sizes: Small, Medium, Large, X Large
    • Colours: Orange/Black, Black
    • The Orbea Occam TR H20 is available with 0% APR finance

     All Tredz bikes are:

    • Fully built & ready to ride
    • Fully checked & tested by Cytech qualified mechanics
    • Available with 0% APR finance (up to 48 months) on any basket over £99
    • UK price match guarantee
    • 365 day no hassle returns
    • Free delivery in the UK Mainland on a date that suits you

    In the box with every Tredz bike is:

    • Free Tredz 9 key trail tool
    • Free Tredz pedal spanner
    • Free basic pedals
    • Tredz drawstring kit bag
    • 16 point quality control check sheet
    • Basic bike setup instructions
    • Free Cycle Plan insurance voucher (8 weeks)


    Frame: Orbea Occam TR 2018 Hydro Triple Butted 120mm travel 29/27.5+ C-Boost 12x148 PF
    Fork: Fox 34 Float Performace 130 3-Position QR15x110
    Rear Shock: Fox Float DPS Performance 3-Position Evol custom tune 184x44mm
    Headset: FSA 1-1/8 - 1-1/2" Integrated
    Stem: Race Face Aeffect R 35mm interface
    Bars: Race Face Aeffect 35 10mm Rise 760mm
    Front Brake: Shimano MT500 Hydraulic Disc
    Rear Brake: Shimano MT500 Hydraulic Disc
    Rear Mech: Shimano XT M8000 GS Shadow Plus Direct Mount
    Shifters: Shimano SLX M7000 I-Spec II
    Speed: 11
    Rims: Sun Ringle Duroc 27.5 Tr40 Tlr + Modus Sealed Boost Hubs
    Front Hub: Sun Ringle Duroc 27.5 Tr40 Tlr + Modus Sealed Boost Hubs
    Rear Hub: Sun Ringle Duroc 27.5 Tr40 Tlr + Modus Sealed Boost Hubs
    Front Tyre: Maxxis High Roller II 3.00" 60 TPI Exo TLR
    Rear Tyre: Maxxis Rekon+ 2.80" 60 TPI Exo TLR
    Seat Post: Race Face Aeffect Dropper 31.6x385/125mm
    Chainset: Race Face Aeffect Cinch 32t
    Chain: Shimano HG601-11
    Cassette: Sun Race 11-46t 11-Speed
    Pedals: Not Included

    Occasionally without notice, manufacturers sometimes change product specifications.
