Product Description

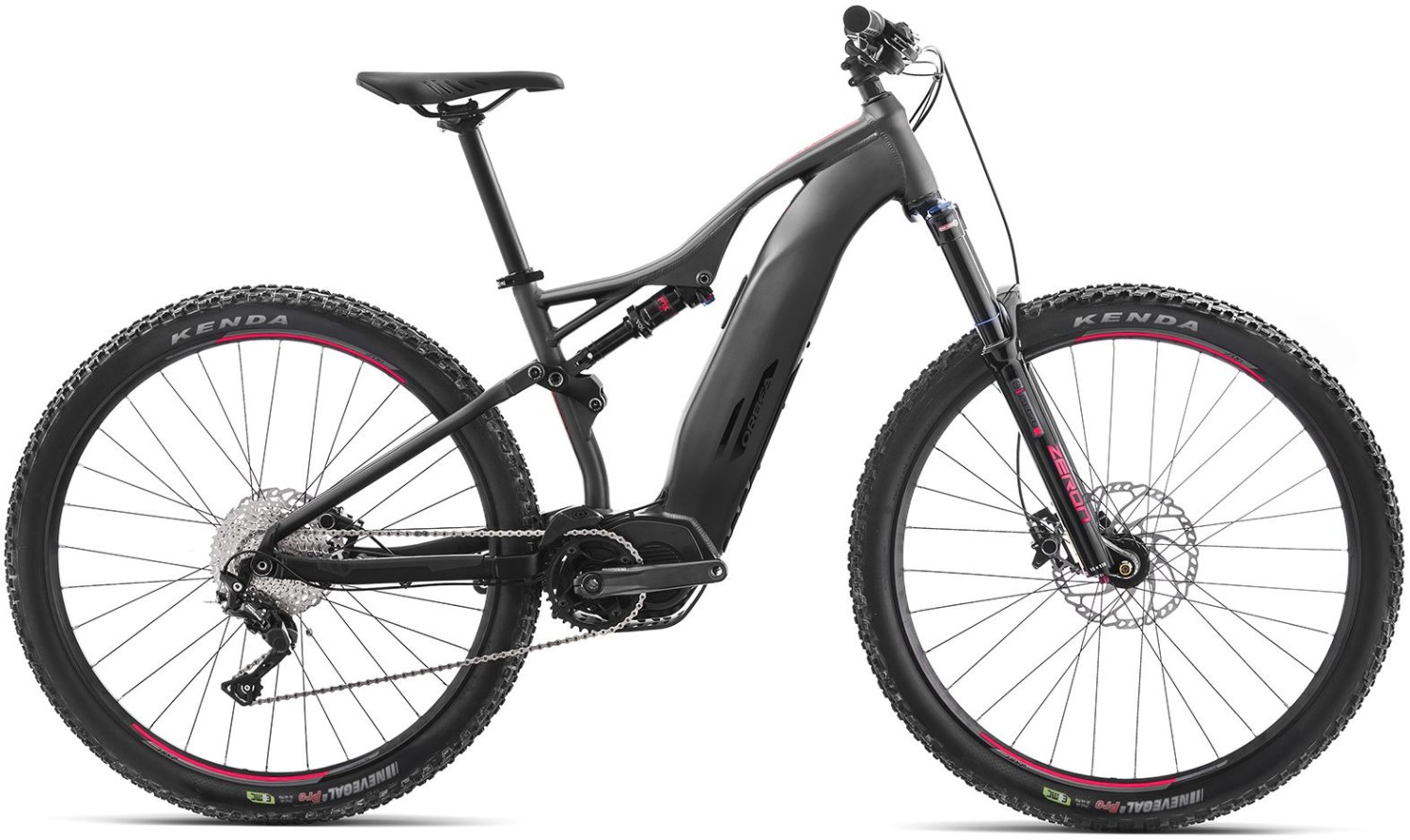

Get the most out of your ride aboard the Orbea Wild FS 40 29er electric mountain bike. The alloy frame is lightweight and features a fully integrated battery compartment and bottom bracket mounted motor, keeping the weight perfectly centred. The 140mm travel front and rear is balanced and controlled by a Suntour front fork and Fox rear shock, giving you excellent trail manners. The Shimano Steps E8000 system gives you that extra boost to conquer any climb, while enjoying the descents. The 29er wheels are super stable, giving easier rolling over bigger trail features.

Key Features:

  • Hydroformed Alloy frame has integrated downtube battery for sleek profile
  • Fox Float DPS Performance rear shock controls the 140mm travel
  • SR Suntour ZERON-35 LO-R Coil fork has 140mm travel to take on tough trails
  • Shimano Deore 1x10 speed drivetrain shifts smooth
  • Shimano hydraulic disc brakes are powerful stoppers
  • Orbea Tryp 35c Disc Tubeless ready 29er wheels
  • Sizes: Small, Medium, Large, X Large
  • Colours: Grey/Red, Black/Green
  • The Orbea Wild FS 40 29er is available with 0% APR finance

Drive Information:

  • Motor: Shimano Motor DU-E8000
  • Battery: Shimano Steps E8010 500Wh
  • User interface/remote: Shimano Steps SC-E8010 and Di2 shifter remote
  • Connectivity: Bluetooth and ANT+ compatible

It’s time to get moving. Load up your pack for an afternoon ride and start pedalling. Whatever obstacles exist between you and the trails and your Special Places, it’s time to run over them. Reclaim access and discover new adventures the way you like – aboard a fun and capable machine that enhances your skills while it extends your range. Conquer steep climbs and push the limits of traction and good judgment on the way back down. Enjoy clever design and sophisticated suspension kinematics, or simply focus on the trail. Wild FS revitalizes your riding and helps you chart new destinations. Take back control – Take back your Wild.

Hideout Technology - Pay attention to the battery used by the ebike you choose. Opt for the least bulky one with the same capacity (500 Wh). Besides being easy to remove, replace and transport, look for a battery with proven reliability that is not set to be replaced by a new generation in the near future.

  • Integrated battery fits smoothly with the frame shapes for great protection and a sleek appearance
  • Tool-less battery access for convenience with a highly protected, rubber shielded charging port
  • External access to battery on/off button and battery status
  • Compact display fits easily with other controls on the handlebar
  • Colour display is Bluetooth/ANT+ compatible
  • Orbea’s design process optimizes suspension characteristics and kinematics for the widest range of riding conditions
  • 140mm front and rear travel
  • High quality sealed cartridge pivot bearings for durability and sensitivity
  • Shimano E8000 is the lightest and most compact motor on the market
  • Uses a standard chainring
  • Speed sensor integrated with rear dropout
  • The form of the E8000 motor allows for more desirable geometry and kinematics
  • Hydroformed AL7000 frame is light and strong with sophisticated shaping that places material where it’s needed
  • Boost 148 Spacing
  • Metal armour skid plate protects the motor for long life
  • 35mm stems and wide handlebars
  • Suspension is optimized for eMTB use
  • Stronger wheels and larger brake rotors
  • Tires with reinforced eMTB casing
  • More comfortable saddles
  • eMTB geometry with short chainstays and an upright trail bike position

All Tredz bikes are:

  • Fully built & ready to ride
  • Fully checked & tested by Cytech qualified mechanics
  • Available with 0% APR finance on baskets over £99
  • UK price match guarantee
  • 365 day no hassle returns
  • Free delivery in the UK Mainland on a date that suits you

In the box with every Tredz bike is:

  • Free Tredz 9 key trail tool
  • Free Tredz pedal spanner
  • Free basic pedals
  • Tredz drawstring kit bag
  • 16 point quality control check sheet
  • Basic bike setup instructions
  • Free Cycle Plan insurance voucher (8 weeks)


Frame:Orbea Wild
Fork:SR Suntour ZERON-35 LO-R Coil 140mm Q15x110 Boost
Headset:FSA 1-1/8 - 1-1/2" Integrated
Stem:Orbea 35mm interface
Bars:Orbea 35mm Riser 780mm
Front Brake:Shimano M365 Hydraulic Disc
Rear Brake:Shimano M365 Hydraulic Disc
Rear Mech:Shimano Deore M6000 GS Shadow Plus Direct Mount
Shifters:Shimano Deore M6000
Rims:Orbea Tryp 35c Disc Tubeless ready
Front Hub:Orbea Tryp 35c Disc Tubeless ready
Rear Hub:Orbea Tryp 35c Disc Tubeless ready
Front Tyre:Kenda 1184A Havok 27,5x2,8" 120TPI FB TLR (E-MTB specific)
Rear Tyre:Kenda 1184A Havok 27,5x2,8" 120TPI FB TLR (E-MTB specific)
Seat Post:Orbea OC-I 31.6x400mm
Chainset:Shimano E80 34t
Chain:KMC X10eT
Cassette:Sun Race 11-42t 10-Speed
Pedals:VPE-537 Black

Occasionally without notice, manufacturers sometimes change product specifications.
