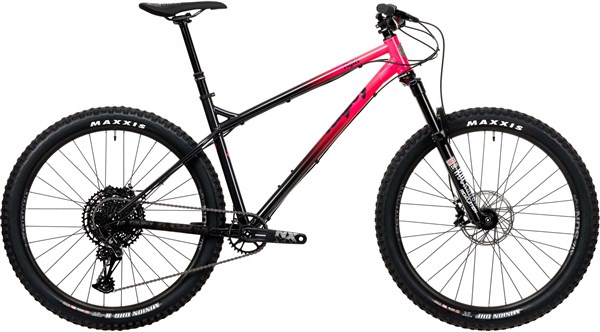

Ragley Piglet 27.5" Mountain Bike 2020 - Hardtail MTB
The Piglet is our original ‘trail’ bike. Designed as our Blue Pig’s little sibling; created for exploration, adventure and play. It is for people that ride with their saddle up as much as their saddle down. At home on any terrain; anywhere from playing on local trails, lapping round trail centres or epic backcountry adventures in the middle of nowhere; it will take you places and win races with a smile on your face.
For our latest generation, we have refined the geometry with subtle tweaks and stiffened up the rear triangle with a 148x12mm boost axle. We have also changed tubing cross-sections on the rear triangle to give a little more comfort on those long rides but at the same time retain stiffness for power transfer to the rear wheel.
The Piglet frameset features ISCG 05 tabs, a 44mm head tube, internal dropper seatpost compatibility and a stiff bolt through 148x12mm Boost rear end. Our steel frames are engineered from custom triple-butted 4130 Chromoly tubing resulting in a frame that is lightweight and supple enough to provide comfort on longer trail rides.
Key Features:
- 5 Year Warranty and lifetime crash replacement
- 4130 Chro-mo steel
- ISCG 05 Tabs
- ISO 4210 Certified
- Head Angle: 65.5˚Static
- Effective Seat Angle: 73˚
- Chainstay length: 425mm
- Seat post: 31.6mm
- Rear Axle: Ragley 12mm x 148mm Thru-Axle
- Seat Collar: 34.9mm
- BB Shell: 73mm BSA
- Headset: ZS44/28.6 | EX44/40
- Wheel Size: 27.5”
- Max Tyre Size: 2.6”
- BB Drop: -45mm
- Size Options: S – 15”, M – 16.5”, L – 18”, XL – 19”
Occasionally, without notice, manufacturers change product design and/or specifications.
Mountain Bike Size Chart
Height
|
Bike Size
|
Mountain Bike Size
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
