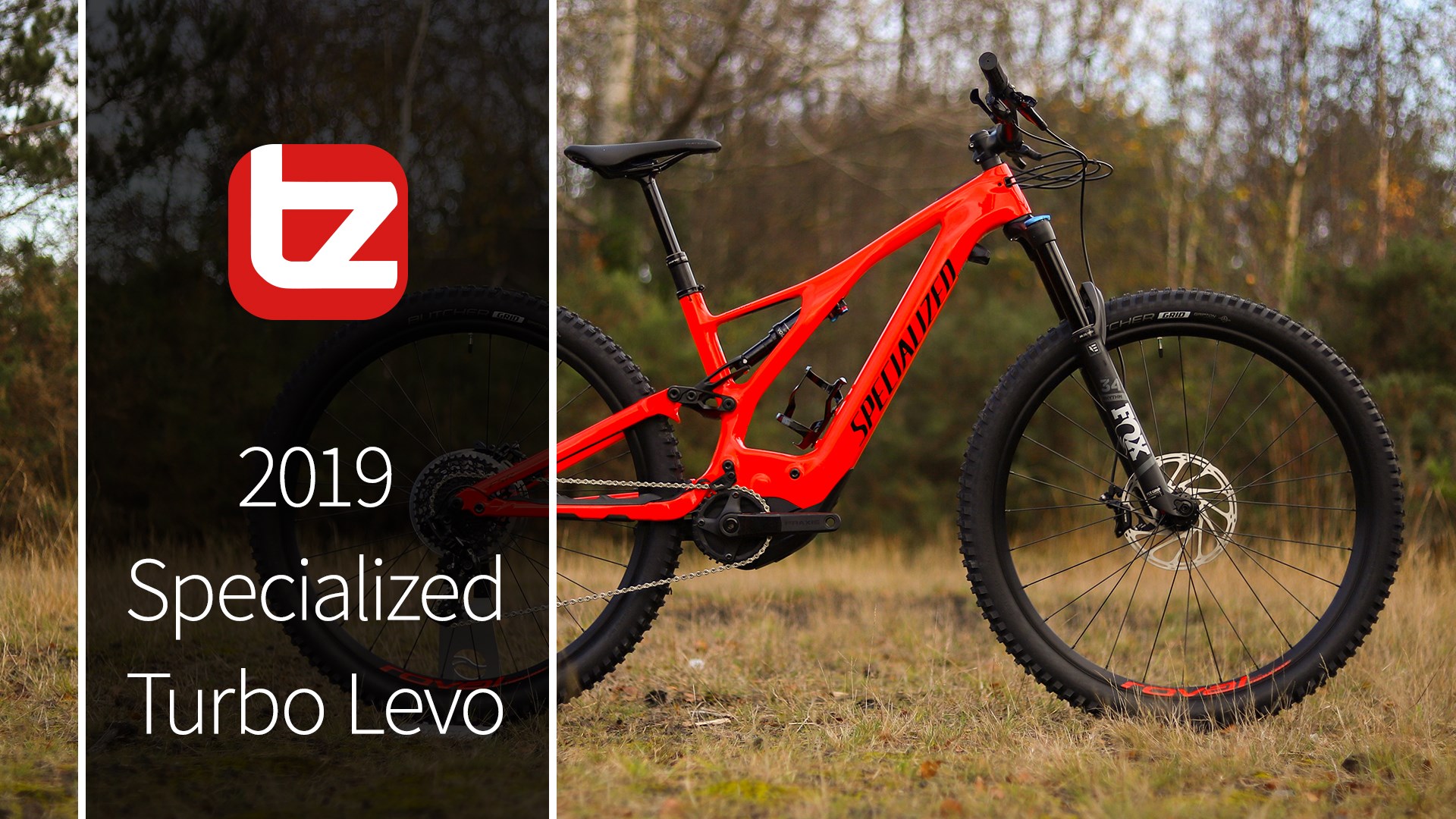

Specialized Levo Expert Carbon 29" Mountain Bike 2020 - Electric Mountain

£7,249.00
Price Match
or £151.03 / month
Finance Options
1 review
Sizing
Select a size
Select a colour
Select your option for Christmas Delivery availability
Add to Basket

Cycle to Work

Product Description

Here’s where the gloves come off—the Turbo Levo Expert Carbon sheds serious weight with its advanced carbon front triangle and brings a high level of technical capability with a FOX 36 fork and DPS shock.

ROWDY DESCENTS. STEEP CLIMBS? HELL. YES.

The Turbo Levo is a fully-fledged progressive trail bike. We’ve lengthened the reach, kept the chainstays nice and short, and maintained a low center of gravity. Next, we slackened the head angle for more confident descents and steepened the seat angle to improve climbing efficiency. It’s dialed.

MORE POWER, MORE RANGE

The Levo’s Specialized 2.1 motor amplifies your pedaling input by a mind blowing 410%. Our M2 batteries provides you with plenty of range. What’s more, our Mission Control App can handle battery management automatically, ensuring your battery will last as long as you need it to. More power. More miles per ride. More awesome.

Key Features:

  • Carbon/M5 alloy Sidearm frame shed weight and adds control.
  • Smoothest, most powerful motor on the market.
  • Fox 36 Perfomance fork and Float DPS shock with 150mm of travel.

How do we deliver the best possible bang for your buck? We shed serious weight by going with a carbon front triangle and kept costs down with the addition of an M5 premium aluminum alloy rear-end, making the Levo Expert not only lightweight but also stiff and responsive. We designed this bike to shred and that meant giving the Levo a low bottom bracket, lengthy top tube, and short chainstays. We also tweaked the kinematics of the frame to make the suspension more supple on small hits and yet perfectly capable of taking the big hits without bottoming out.

  • The FOX FLOAT DPS Performance offers up 150mm of stiction-free performance as well as a 3-position compression-damping aduster.
  • FOX's 36 Performance fork brings the flex-free handling and supple stroke that the 36 is famous for, as well as on-the-fly tuning courtesy of its 3-position, micro-adjust compression damper.
  • The custom Specialized 2.1 motor represents the pinnacle of e-bike motor technology. The new motor is more efficient, 15% smaller, and 11% lighter than its predecessor. It has many other features that no other e-bike can touch, like instant engagement, fantastic heat management, a double freewheel design that disengages the gear box when you hit top speed, and silent, smooth, and consistent output—even at max power.
  • The Levo’s Turbo Connect Unit (or “TCU”) is more than an “On-Off” button—it’s the brains of the bike. The TCU shows your battery level and power-assist mode. It also communicates, via ANT+/Bluetooth®, with our optional handlebar display to display even more information about your day’s ride.
  • This Turbo’s new Specialized M2-series battery features a 700Wh capacity, which increases your range by a staggering 40%. We integrated that battery seamlessly iinside the frame and made it easy to remove with a single hex wrench.

Occasionally, without notice, manufacturers change product design and/or specifications.

Specification

Frame:FACT 9m Carbon w/ M5 alloy rear triangle, 29 Trail Geometry, Integrated down tube battery, enclosed internal cable, Command Post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel
Fork:Fox 36 Performance, 150mm travel, Grip damper with 3 position micro adjust, 51mm offset
Rear Shock:FOX FLOAT DPS Performance, 3-position adjustment, 52.5x210mm, Rx Trail Tune
Stem:Specialized Trail, forged alloy, 4-bolt, 5mm rise, 40mm
Bars:Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 780mm, 31.8mm clamp
Front Brake:SRAM Code R, 4-piston caliper, hydraulic disc, 200mm
Rear Brake:SRAM Code R, 4-piston caliper, hydraulic disc, 200mm
Rear Mech:SRAM X1, 11-speed
Shifters:SRAM S700, single-click lever
Speed:11
Rims:Roval Traverse 29, hookless alloy, 30mm width, hand-built, 2Bliss Ready
Front Hub:Specialized, sealed cartridge bearings, 15x110mm spacing, 28h
Rear Hub:DT Swiss 360, 3-pawl design, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Spokes:DT Swiss Competition Race
Front Tyre:Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 29x2.6"
Rear Tyre:Eliminator, BLCK DMND Casing, 2Bliss Ready, 29x2.3"
Seat Post:Command Post IRcc, 16-position micro-height adjustable, two-bolt head, bottom mount cable routing, remote SRL lever, 34.9mm, S: 130mm, M/L/XL: 160mm of travel
Saddle:Bridge 155 S2, Bridge 143 S3/S4/S5, Hollow cr-mo rails
Chainset:Praxis, 2D cold-forged alloy, custom offset, 165mm
Chain:KMC X11ET, 11-speed w/ Missing Link™
Cassette:SRAM XG-1175, 11-speed, 10-42t
Pedals:Specialized Dirt

Specialized Levo Expert Carbon 29" Mountain Bike 2020 - Electric Mountain Reviews

Write your own review
Overall Rating:
4.8
out of 5
4.83
Build Quality
5.00
Performance
4.50
Value For Money
5.00

Customer Reviews (1)

5
Model information.

21.45 Kg At € 8,199 the Specialized Turbo Levo Expert Carbon is the second most expen- sive Levo model available and weighs in at 21.45 Kg. You get is a lightweight carbon front triangle combined with an aluminium rear end. The new frame has been

21.45 Kg At € 8,199 the Specialized Turbo Levo Expert Carbon is the second most expen- sive Levo model available and weighs in at 21.45 Kg. You get is a lightweight carbon front triangle combined with an aluminium rear end. The new frame has been

Close review
4.8 out of 5
Build Quality: 5/5
Performance: 4.5/5
Value For Money: 5/5

Electric Bike Size Guide

Electric Bike Bike Sizing Chart

Frame Size

XXS - 13"

4'8"



5'1"

XS - 15"

5'1"



5'4"

S - 16"

5'4"



5'7"

M - 18"

5'7"



5'10"

L - 19"

5'10"



6'0"

XL - 20"

6'0"



6'3"

XXL - 21"

6'3"



6'5"

XXXL - 22"

6'5"



6'9"

Electric Bike Sizing Chart



Height

Bike size (cm)

bike size (Inch)

4’8” – 5’1”

143 – 155 cm

44 – XXS

13” – XXS

5’1” – 5’4”

155 – 163 cm

48 – XS

15” – XS

5’4” – 5’7”

163 – 170 cm

51 – S

16” – S

5’7” – 5’10”

170 – 178 cm

54 – M

18” – M

5’10” – 6’0”

178 – 183 cm

56 – L

19” – L

6’0” – 6’3”

183 – 191 cm

58 – XL

20” – XL

6’3” – 6’5”

191 – 196 cm

60 – XXL

21” – XXL

6’5” – 6’9”

196 – 205 cm

62 - XXXL

22” – XXXL



Please note, all size information is provided as a guide - if you're unsure or need any further assistance you can call us on 01792 799508 ... we're happy to help!

Electric MTB Guide



Electric Mountain Bike Guide

Is an Electric Mountain Bike Right for Me?

If you’re new to the cycling world, we highly recommend taking a look at our bike buying guide overview or our electric bike buying guide to help you decide what type of e bike is right for you.

When you’re choosing an electric mountain bike, there are a few things to look out for, which can help you to work out the quality and performance to expect from a particular model.


Usage & Suspension travel

Just like a regular full suspension or hardtail mountain bike, the amount of available suspension travel on an eMTB varies with the intended use. Depending on the type of mountain bike riding you’ll be doing, you’ll want a bike with longer or shorter suspension travel as well as components suited to more or less technical terrain.

Type

Travel

Usage

Pros

Cons

Hardtail

Up to 130mm travel fork

Cross-country and trail

Nimble handling more affordable than a full suspension eMTB

Hardtails are less capable on rough and demanding trails with large jumps and drops

Full Suspension – short travel

120mm – 150mm

Trail and cross-country

Well balanced for both climbing and descending

Less capable on challenging descents than a longer travel bike

Full Suspension – long travel

150mm +

Enduro, trail and downhill

More capable on rough, steep and technical descents, including DH and enduro tracks

Heavier and less manoeuvrable on tight trails. More cumbersome on the climbs

Type / Travel / Usage

Pros

Cons

Hardtail

Up to 130mm travel fork

Cross-country and trail

Nimble handling more affordable than a full suspension eMTB

Hardtails are less capable on rough and demanding trails with large jumps and drops

Full Suspension – short travel

120mm – 150mm

Trail and cross-country

Well balanced for both climbing and descending

Less capable on challenging descents than a longer travel bike

Full Suspension – long travel

150mm +

Enduro, trail and downhill

More capable on rough, steep and technical descents, including DH and enduro tracks

Heavier and less manoeuvrable on tight trails. More cumbersome on the climbs


Frame Material

Most electric mountain bike frames are made from aluminium alloy, although some are made from carbon fibre composite.

Aluminium

Aluminium alloy is lightweight, stiff, strong. Manufacturers often develop their own aluminium alloys, such as ALUXX by Giant. Aluminium is found on a wide range of e bikes, from entry-level and enthusiast bikes, right the way up to top-spec eMTBs.

Carbon Fibre

Carbon fibre is lighter, stiffer, stronger, and more expensive than aluminium. The main benefit for electric mountain bikes is that carbon frames are stiffer for improved handling.


Drive Tech

Designed to enable you to have more fun on the trails, all of our electric mountain bikes feature powerful crank drive motors with long lasting lithium-ion battery packs and easily accessible control units.

Motor

Crank drive motors boost your natural pedalling power. The cranks are connected to the motor and the motor is connected to the chainring which then powers the bike forward. The bike senses the pressure that you put though the pedals and then adds an appropriate level of power to make pedalling easier. This additional power is delivered seamlessly, and you will feel like your legs have just become much more powerful. Motors all have a nominal 250w output and are usually provided by big component manufacturers like Bosch, Shimano, Yamaha and Brose.

Illustration showing a electric motor on a electric bike

Battery

Easily charged either on or off the bike the lithium-ion battery pack will offer you long lasting assistance. Where and how you ride will make a big difference to the range that you can expect to achieve from a single charge, but most e bikers find the capacity of these batteries to be more than sufficient. Some brands offer innovative ways to integrate the battery within the frame. 400Wh or 500Wh batteries are most common.

Illustration showing a battery mounted to a ebike frame

Control Units

All electric mountain bikes allow you to adjust the amount of power the motor delivers. This helps to help you manage the battery capacity. Control units have some kind of display that, at the very least, shows remaining battery capacity and the current power mode. Some control units feature a handlebar mounted display unit that displays additional information like estimated range and satellite navigation prompts. Many eMTBs offer Bluetooth and ANT+ connectivity with smartphone apps for fine tuning the motor output and accessing more advanced features.

Illustration showing a heads up display mounted to the handlebars

Groupset

An electric mountain bike’s groupset, is where the biggest difference in component quality is seen. A complete groupset comprises of the following parts:

  • Chainset (aka Crankset)
  • Bottom bracket
  • Brakes
  • Brake levers
  • Shifter
  • Derailleur
  • Chain
  • Cassette

Electric mountain bike groupset components are typically supplied by either Shimano or SRAM, sometimes with additional manufacturers like Magura, Tektro and TRP supplying brake systems. You will mostly find one-by drivetrains with a single front chainring and a wide range rear cassette.

Shimano and SRAM both produce a range of groupsets to suit different budgets. The hierarchy table here compares the different Shimano and SRAM groupsets to determine which bikes offer the best performance.

Groupset comparison - Shimano & SRAM

Wheel Size

Just like regular mountain bikes, e MTBs are available with different wheel sizes. 27.5” (650b) and 29” wheels are both available but the most common e MTB size is 27.5”+ (6fattie) that bridges the gap between the two.

MTB wheel sizes

27.5” (650b) wheels strike the ideal balance between fast rolling and nimble handling. They are lighter than 29” wheels so are faster to accelerate. On the other hand, the smaller wheel size rolls less efficiently than the larger size, making the bike more prone to losing speed over rough ground.

29” wheels roll fastest but are less nimble. These wheels are naturally smoother over rough ground but are heavier and slower to accelerate. Larger riders may find a better fit on a 29er, but smaller riders may find 29” wheels a little cumbersome.

27.5+ (6fattie) wheels feature wider 2.8” – 3.0” tyres and offer more cushioning (float) as well as more grip. With the extra size of the high-volume tyres, the overall wheel diameter is similar to a 29er, so these wheels carry speed very well on rough ground. Plus sized wheels are ideal for electric mountain bikes as they deal best with the extra weight of the motor and battery, and are great for riding more challenging terrain.


Suspension components

Electric mountain bike suspension components (i.e. the fork or rear shock absorber) are also a way to identify the quality of a bike. While Fox and RockShox are the most common manufacturers, there are a number of brands producing suspension components for mountain bikes.

Entry Level eMTBs

Entry level electric mountain bikes (up to approximately £2,500) may come supplied with a fork and rear shock supplied by SR Suntour, X-Fusion or RockShox. These components will allow a limited amount of adjustment, including:

  • Coil spring preload / air spring pressure adjustment.
  • Lockout switch.
  • Rebound damping adjustment on models towards the top of the price range.
Mid-range and enthusiast eMTBs

Mid-range and enthusiast eMTBs (up to approximately £5,000) use components from brands including Fox, RockShox and Manitou. At this level, suspension components have features like:

  • Preload adjustment / air spring pressure adjustment
  • Rebound damping adjustment
  • Lockout switch
  • Multi-position ‘mode’ switch
  • Compression damping adjustment
Top of the range eMTBs

Top of the range electric bikes (over £5,000) also use components from Fox, RockShox and Manitou, with a few select models using parts from high-end suspension brands like Ohlins. At this price, suspension components have features including:

  • Coil spring preload adjustment / air spring pressure adjustment
  • High and low speed rebound damping adjustment
  • High and low speed compression damping adjustment
  • Lockout switch
  • Multi-position ‘mode’ switch
  • Advanced low-friction coatings (e.g. Fox’s golden-coloured Kashima coating)
