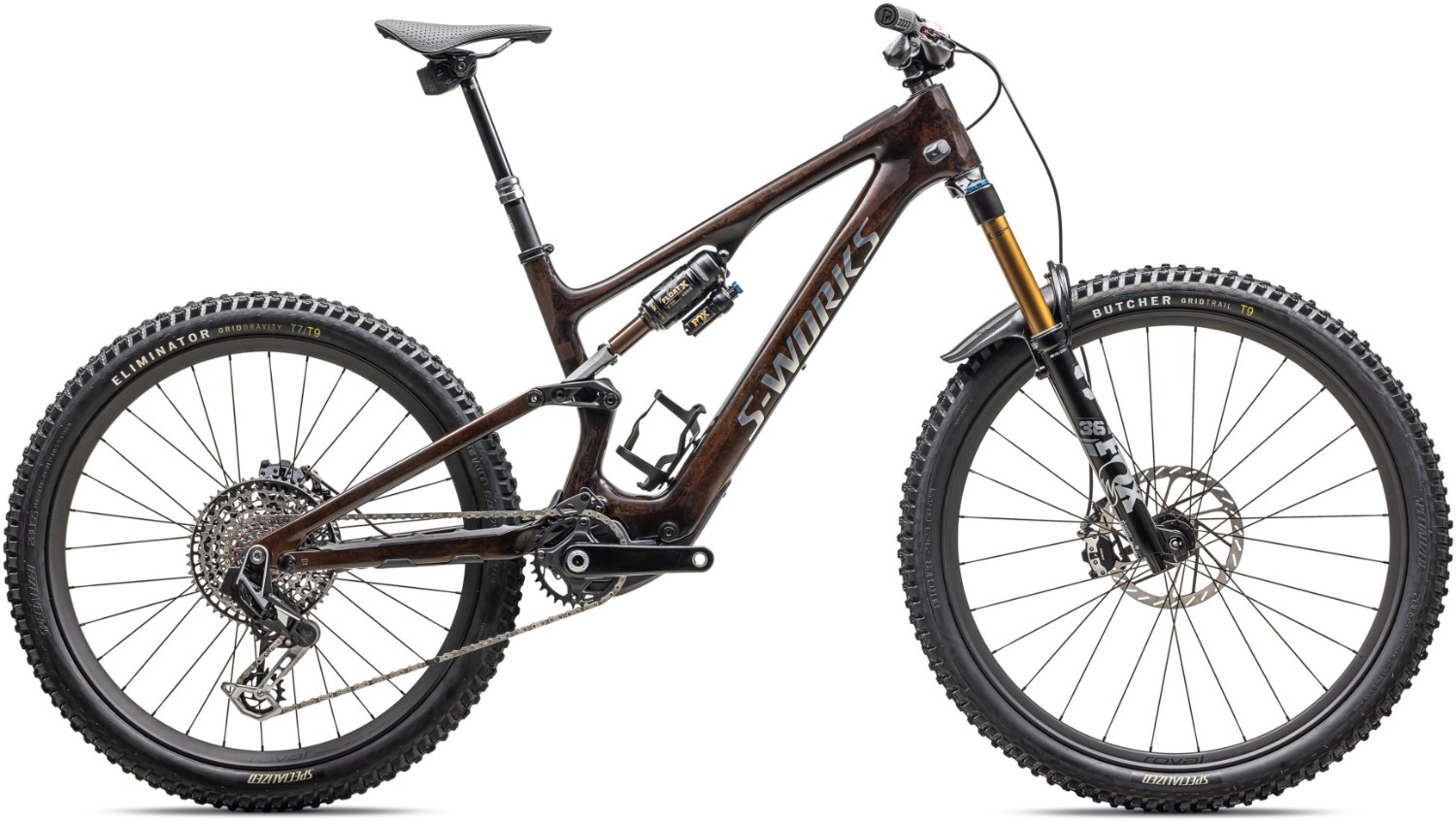

Specialized S-Works Turbo Levo SL 2025 - Electric Mountain Bike
The Turbo Levo SL combines carbon frame construction and powerful pedal-assist, delivering nimble handling and responsive power that’s ideal for ambitious trail riders. Designed to amplify your efforts without overwhelming, it’s all about riding more trails with less strain, letting you enjoy every line.
Key Features:
- Fact 11m carbon frame, 150mm travel, adjustable geometry
- Fox 36 Factory Fork, 150-160mm travel, Grip X2 damper, Kashima coating
- FOX FLOAT Factory GENIE rear shock, 150mm travel, Kashima coating
- SRAM XX Eagle wireless 12-speed drivetrain for quick, smooth shifting
- SRAM Maven Ultimate brakes with HS2 200mm rotors for dependable stopping power
- 29” Traverse HD carbon wheels, Butcher and Eliminator tyres, 2.3” width
- RockShox Reverb AXS wireless dropper post
- Available with 0% APR finance options
Drive Information:
- Motor: Specialized 1.2 SL Custom Rx, 50Nm torque
- Battery: Fully integrated 320Wh battery
- User Interface: MasterMind TCU display, 120 customisable displays, Bluetooth/ANT+ remote
The Levo SL offers riders a lightweight e-MTB experience with “2X You” amplification for effortless power that flows as naturally as your pedalling. Designed for technical descents and endless trails, it boasts a responsive Fox suspension and carbon frame, keeping weight low while delivering stability and smooth handling. With the SRAM XX Eagle wireless drivetrain, shifting is precise and intuitive, while the RockShox Reverb AXS dropper post provides personalised adjustments on the go. The MasterMind TCU interface connects seamlessly, allowing you to fine-tune power assist and access real-time data, all at your fingertips.
The Turbo Levo SL gives you more trail time, making every ride about fun, flow, and maximising your day on the mountain.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Levo SL carbon Frame, Fact 11m carbon, alloy shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels. |
| Fork | Fox 36 Factory series, 29", Grip X2 damper, Kashima, S1: 150mm, S2-S6: 160mm |
| Rear Shock | FOX FLOAT Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, S1:210x52.5mm, S2-S6:210x55mm |
| Stem | Industry 9 A35 stem, 40mm length, 35mm clamp diameter |
| Bars | Raceface Era Carbon, S3-S6: 40mm rise, S1/S2: 20mm rise |
| Front Brake | SRAM Maven Ultimate w/Hs2 rotor, 200mm |
| Rear Brake | SRAM Maven Ultimate w/Hs2 rotor, 200mm |
| Brake Lever | SRAM Maven Ultimate |
| Rear Mech | SRAM XX Eagle Transmission Derailleur |
| Shifters | SRAM AXS POD Ultimate Controller |
| Speed | 12 |
| Rims | Traverse HD 350 |
| Front Hub | Traverse HD 350, 29" |
| Rear Hub | Traverse HD 350, 27.5", XD freehub body |
| Front Tyre | Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
| Rear Tyre | Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7 compound, 27.5x2.3" |
| Seat Post | RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm) |
| Saddle | Specialized Power Pro Mirror, hollow Ti rail |
| Chainset | SRAM Eagle Crankset, 32T ring, Integrated Guard, 55mm Chainline, S1-S3:165mm, S4-S6: 170mm |
| Chain | SRAM X0 Eagle Transmission Flattop Chain |
| Cassette | SRAM XX Eagle Transmission Cassette, 12spd, 10-52t |
| Pedals | Resin Platform |
| Weight | 18.15 kg |
| Battery Size (WH) | Specialized SL1-320, fully integrated, 320Wh |
| Motor | Specialized 1.2 SL Custom Rx Trail Tuned Motor |
| User Interface | Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote |
Specialized Levo SL 2025 Size Chart
|
Size |
Height (Cm) |
Height (feet) |
|
S1 (XS) |
150 - 160 |
4’11” – 5’3” |
|
S2 (S) |
157 – 173 |
5’2” – 5’8” |
|
S3 (M) |
165 – 5’11 |
5’5” – 5’11” |
|
S4 (L) |
173 – 188 |
5’8” – 6’2” |
|
S5 (XL) |
178 – 193 |
5’10” – 6’4” |
|
S6 (XXL) |
188 - 203 |
6’2” – 6’8” |
Find your S Size
Determining your S-Size is easy. If you rode a Medium before, then S-3 will be your equivalent size. But if you want a more nimble ride, you should drop down to an S2. Want a bike that’s more stable at speed? Bump up to an S4. Following are examples of three riders, all 5’8” (1.73m), who chose three different sizes.
Specialized Turbo Levo SL 2025 Geometry Chart
| Frame Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Stack | 609 | 617 | 626 | 635 | 645 | 654 |
| Reach | 405 | 425 | 445 | 470 | 495 | 525 |
| Head Tube Length | 95 | 100 | 110 | 120 | 130 | 140 |
| Head Tube Angle (°) | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
| Bottom Bracket Height | 343 | 348 | 348 | 348 | 348 | 348 |
| Bottom Bracket Drop | -34 | -29 | -29 | -29 | -29 | -29 |
| Trail | 132 | 132 | 132 | 132 | 132 | 132 |
| Fork Length | 560 | 570 | 570 | 570 | 570 | 570 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 | 44 |
| Front Centre | 726 | 752 | 776 | 806 | 835 | 869 |
| Chainstay Length | 433 | 432 | 432 | 432 | 432 | 432 |
| Wheelbase | 726 | 752 | 776 | 806 | 835 | 869 |
| Top Tube Length (horizontal) | 560 | 582 | 604 | 631 | 659 | 691 |
| Standover Height | 727 | 763 | 766 | 767 | 773 | 778 |
| Seat Tube Length | 385 | 385 | 405 | 425 | 445 | 465 |
| Seat Tube Angle (°) | 75.8 | 75.8 | 75.8 | 75.8 | 75.8 | 75.8 |
| Crank Length | 165 | 165 | 170 | 170 | 170 | 175 |
| Handlebar Width | 155 | 143 | 143 | 143 | 143 | 143 |
| Seatpost Max Insertion | 180 | 180 | 200 | 220 | 240 | 260 |
| Seatpost Min Insertion | 80 | 80 | 80 | 80 | 80 | 80 |
| Fork Travel | 144 | 150 | 150 | 150 | 150 | 150 |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped. Other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
