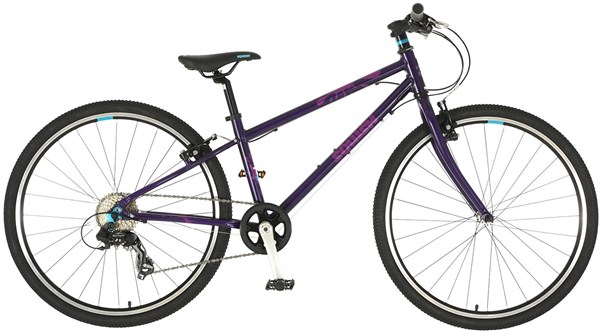

Squish Junior 26" Mountain Bike 2020 - Junior







- ShowProduct Information The world is now your oyster, our 26 inch Squish has been designed to look a little more subtle; aft... read more
- Show Reviews & Q&As
- Show MTB Sizing
- Show MTB Hardtail Guide
- Show Finance
- Show Delivery & Guarantee
- Show What's In The Box
Product Description
The world is now your oyster, our 26 inch Squish has been designed to look a little more subtle; afterall, 9 year olds are far from babies! / 24 inch Wheels with 11 inch Frame, ideal for children 9 years and above / Shortened crank arms and stem to fit young children much better / Shimano 8 speed gears / CNC braking surface on rims for added power and durability / Complete weight just 9.88kgOccasionally, without notice, manufacturers change product design and/or specifications.
Specification
Frame: | Lightweight Triple butted aluminium |
Fork: | Alloy Ahead |
Headset: | 1.1/8” threadless Ahead |
Stem: | Alloy junior specific with 50mm extension |
Bars: | Alloy 580mm wide |
Front Brake: | Tektro Alloy v-brake |
Brake Lever: | Tektro Junior reach alloy lever |
Rear Mech: | Shimano Tourney RD-TX805 |
Shifters: | Shimano SL-M310 Rapidfire |
Speed: | 8 |
Rims: | Double wall alloy |
Front Hub: | 28H QR alloy |
Rear Hub: | 28H QR alloy |
Spokes: | 14G |
Front Tyre: | 26”x1.5” junior hybrid |
Rear Tyre: | 26”x1.5” junior hybrid |
Seat Post: | 27.2mmx300mm micro adjust alloy |
Chainset: | 152mm alloy crank/32T chainring |
Bottom Bracket: | Sealed cartridge Bearings |
Chain: | KMC Z-72 |
Cassette: | Shimano Cassette 8 spd 11-32T |
Pedals: | 9/16 |
Weight: | 9.88 KG |
MTB Sizing
Mountain Bike Size Chart
Height
|
Bike Size
|
Mountain Bike Size
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
Please note, all size information is provided as a guide - if you're unsure or need any further assistance you can call us on 01792 799508 ... we're happy to help!
MTB Hardtail Guide
Hardtail Mountain Bike Guide
Is a Hardtail mountain bike right for me?
If you’re new to the cycling world, we highly recommend taking a look at our bike buying guide overview or our mountain bike buying guide to help you decide what type of bike is right for your needs.
When you’re choosing a hardtail mountain bike, there are a few things to look out for which can help you to work out the quality and performance you can expect from a particular model.
Usage and suspension travel
Depending on the type of mountain bike riding you’ll be doing, you will want a bike with a longer travel or shorter travel suspension fork as well as components suited to more or less technical terrain.
Usage |
Travel |
Price Bracket |
Pros |
Cons |
---|---|---|---|---|
Recreational - riding on gravel tracks and rough roads |
80 - 100mm |
£200 - £500 |
Affordable. Low profile tyres roll quickly on smooth surfaces |
Not very lightweight. Not capable on technical terrain. Components are less durable. |
Cross-country / XC - more adventurous off-road riding and XC racing |
100mm |
£500 - £9,000 |
Lightweight, especially high-end carbon models. Fast climbing and accelerating. Efficient on long rides |
Less capable on technical terrain than a trail hardtail |
Trail - riding technical trails and trail centre loops |
120mm – 150mm |
£800 - £4,000 |
More capable on technical terrain, especially fun downhill sections |
Heavier than an XC hardtail. Less efficient when climbing |
Jump - Dirt jumping and skatepark riding |
100mm |
£500 - £1,500 |
Robust frames and components. Ideal for learning airborne skills |
Not good for general mountain bike riding |
Usage |
Travel |
Pros |
---|---|---|
Recreational - riding on gravel tracks and rough roads |
80 - 100mm £200 - £500 |
Affordable. Low profile tyres roll quickly on smooth surfaces Not very lightweight. Not capable on technical terrain. Components are less durable |
Cross-country / XC - more adventurous off-road riding and XC racing |
100mm £500 - £9,000 |
Lightweight, especially high-end carbon models. Fast climbing and accelerating. Efficient on long rides Less capable on technical terrain than a trail hardtail |
Trail - riding technical trails and trail centre loops |
120mm – 150mm £800 - £4,000 |
More capable on technical terrain, especially fun downhill sections Heavier than an XC hardtail. Less efficient when climbing |
Jump - Dirt jumping and skatepark riding |
100mm £500 - £1,500 |
Robust frames and components. Ideal for learning airborne skills Not good for general mountain bike riding |
Frame Material
Hardtail MTB frames are mostly made from aluminium alloy. High-end cross-country race bikes will have carbon fibre frames while trail hardtails and jump bikes sometimes feature steel frames.

Aluminium alloy frames are strong and lightweight. More expensive alloy hardtail MTBs tend to have ‘butted’ and/or formed frames which are lighter but just as strong.

Steel frames are heavier but offer a more comfortable ride, especially on higher end models, thanks to the more compliant nature of steel.

Carbon fibre composite frames offer the best of both worlds as they are strong, lightweight and comfortable. They are more expensive however and carbon hardtails start at around £1,300
Groupset and Drivetrain
A bike’s groupset, or drivetrain, is where the biggest difference in component quality is seen. A complete groupset comprises of the following parts:
- Chainset (aka Crankset)
- Bottom bracket
- Brakes
- Brake levers
- Shifters
- Front & rear derailleur
- Chain
- Cassette
Mountain bike groupset components are typically supplied by either Shimano or SRAM, with additional manufacturers like Formula, Hope, Magura, Tektro and TRP supplying brake systems.
Shimano & SRAM both produce a range of groupsets to suit different budgets. The hierarchy table here compares the different Shimano & SRAM groupsets to determine which bikes offer the best performance.
What gearing options are there?
Most hardtails offer a wide range of gears for taking on a variety of terrain. It’s not all about the number of gears though as fewer gears on the front, combined with a wide range rear cassette are much easier to use, but still give you the same wide range of gears. As you go up the price points shifting gets easier with more cogs on the rear cassette and fewer front chainrings.
![]() | ![]() | |
---|---|---|
Professional |
11
![]() |
12
![]() AXS Eagle 12
![]() AXS Eagle |
12
![]() |
11
![]() 11
![]() |
|
11
![]() |
||
Enthusiast |
12
![]() |
|
11
![]() |
10
![]() |
|
10
![]() |
11
![]() |
|
Entry |
9
![]() |
12
![]() Eagle |
9
![]() |
9-10
![]() |
|
9
![]() |
9-10
![]() |
|
7
![]() |
7-10
![]() |
Entry-level hardtails will have a triple chainset with a seven (3x7) or eight (3x8) speed cassette
Mid-level hardtails tend to have a double chainset with a nine (2x9) or ten (1x10) speed cassette
High-end hardtails get a single front chain ring with a eleven (1x11) or even twelve (1x12) speed cassette
Which are the best brakes?
There are three types of brakes found on most hardtail mountain bikes:

Rim brakes are powerful in the dry but are significantly less powerful in the wet.

Mechanical disc brakes are powerful in all weather conditions

Hydraulic disc brakes are the most powerful in all weather conditions, and also offer the best braking precision.
Wheel Size
You’ve probably noticed that mountain bikes come in a choice of wheel size, mainly a 27.5 inch wheel (also known as a 650B wheel) or a 29inch wheel (known as a 29er). Another option is 27.5+ or 6Fattie wheels which bridge the gap between 27.5” and 29” wheels. The traditional MTB wheel size is 26”, but are now only found on some small sized MTBs as well as jump bikes. The difference between these wheel sizes can have a dramatic effect on the way a bike feels and handles out on the trail.

27.5” (650b) wheels strike the ideal balance between fast rolling and nimble handling. They are lighter than 29” wheels so are faster to accelerate. On the other hand, the smaller wheel size rolls less efficiently than the larger size, making the bike more prone to losing speed over rough ground.
29” wheels roll fastest but are less nimble. These wheels are naturally smoother over rough ground but are heavier and slower to accelerate. Larger riders may find a better fit on a 29er, but smaller riders may find 29” wheels a little cumbersome.
27.5+ (6fattie) wheels feature wider 2.8” – 3.0” tyres and offer more cushioning (float) as well as more grip. With the extra size of the high-volume tyres, the overall wheel diameter is similar to a 29er so these wheels carry speed very well on rough ground. Plus sized wheels are ideal for riding more challenging terrain.
26” wheels are the nimblest and are great for smaller riders as well as jump bikes. While quick to accelerate these wheels are the slowest over rough ground.
Does tyre width make a difference?
Tyre width effects both speed as well as grip. Narrower tyres are faster rolling while wider ones offer more grip as well as more cushioning (float).

1.95” - 2.0” tyres roll quickly and are good for recreational riding and light off-roading.

2.2” - 2.6” tyres are a little slower on smooth surfaces but offer much better grip in the corners and are ideal for MTB trail riding

Plus size (6fattie) 2.8” – 3.0” tyres increase the overall diameter of the wheel so still roll quite quickly while offering a lot more grip and float. These are best for rougher terrain
Suspension Fork
The performance of suspension forks varies a lot. Forks on higher end bikes tend to offer more control and are more adjustable. Look for Fox, RockShox or Manitou forks with adjustable rebound and compression damping for the best performance on technical trails. The performance level you require will depend on what type of riding you want to do.
For recreational riding on roads and gravel tracks, you won’t need a high-performance fork. A lockout feature can be useful for more efficient climbing on roads and smoother tracks. Air sprung forks are lighter than coil sprung forks.
For cross cross-country mountain biking lightweight air sprung forks are best. Adjustable rebound damping is essential for serious off-roading and a remote lockout switch will allow you to quickly firm up the suspension when climbing.
Trail hardtails feature longer travel suspension forks for riding on rougher terrain. Adjustable rebound damping is essential for control on challenging trails. Lockout is less important on these bikes as they are catering for riders who like the downs more than the ups. Adjustable compression damping is useful as it can help you achieve optimum performance levels. Thru-axles and tapered steerer tubes improve steering control.

Finance
How do I apply for finance?
Spend £99 or more at Tredz and you can spread the cost. Pay monthly over 6-48 months, interest free (dependent on repayment terms and amount).
1Fill your basket with everything you want from Tredz and go to the checkout.
2During checkout, select the finance option you want as your method of payment.
3You will be sent to our finance provider's secure server to complete your application.
4Finance providers PayPal & V12 will use the information provided to make a decision and complete checkout if you are approved.
Read more about buying on financeFlexible finance options
Choose your deposit.
Choose your term.
Lowest monthly cost
per month
for 12 months
Delivery & Guarantee
UK Delivery Information
International Deliveries – Temporarily Suspended 11/11/20
Note: We are still offering deliveries to the Isle of Man, Scottish Highlands, Scottish Islands, Channel Islands, Isle of Wight, Jersey and Guernsey. We are no longer delivering to Northern Ireland.
Courier Delivery update: Due to the COVID19 situation, we are currently experiencing some delays with deliveries. Our couriers are working around the clock to get your order to you as soon as possible but there is a potential delay of up to 48 hours . Please check your tracking on track your order here.
Please download the TNT Track and Trace App for iOS here and Android here so you can keep an eye on your delivery and any further updates.
Please note on the TNT tracking app it may show your delivery status as ‘Collecting’ (as per image below). This means your delivery has left our warehouse and is currently held at TNT main depot and there could be up to a 48 hour delay.
Please keep checking the TNT tracking for further updates. On behalf of TNT we apologise for any delay and inconvenience this may cause.
We are committed to offering fast and free delivery, whether you're ordering bikes, accessories or clothing. Our standard delivery service is FREE in the UK, regardless of the size and on all orders over £20.
Please note that bulky products and bikes shipped to outlying UK regions are excluded from free shipping.
Please note that Pre-Order dates can sometimes change due to updated stock information.
Click here for more UK and international delivery information.
Returns & Warranty
It's easy to return a product with our 365 day, hassle free returns.
We will give you a full refund or exchange on any item that is returned to us unused/unfitted, in a resaleable condition and in its original packaging (where possible).
Please note: For hygiene reasons, we cannot accept returns of facemasks, undershorts or underwear if the item has been removed/unsealed from its original packaging.
If your item develops a fault or arrives damaged, please contact us first so we can resolve the issue for you as quickly as possible.
For more information please visit our Returns & Warranty page.
What's In The Box
What's In The Box
As cyclists ourselves, we know you will be keen to get out on your new bike as soon as possible. That's why we provide you with all the essential kit you need to get your shiny new bike rolling for the first time.
Most bikes don't come with pedals as standard so we include a set of basic pedals, free of charge with every bike we send out. We will also provide you with a pedal spanner to fit them and a 9-key trail tool, along with full instructions for setting your bike up out of the box. Each bike is sent out with a 16 point, quality control check sheet so you can be confident that your bike has been fully checked by our qualified mechanics.

- Basic setup instructions
- 16 point quality control checklist
- Free tredz multitool
- Free tred pedal spanner
- Free basic pedals
- Free drawstring kit bag
- Free bike insurance voucher
All these items are provided at no extra charge and are packed into a Tredz drawstring bag that doubles up as a handy backpack for carrying your ride essentials.
- Basic bike setup instructions
- Free ‘basic’ pedals
- Free Tredz pedal spanner
- Free Tredz 9-key trail tool
- Free Tredz drawstring bag
- Free 8 weeks insurance voucher
- 16 point, quality control check sheet
Tredz Service:
- Tredz bikes are fully checked & tested by Cytech qualified mechanics
- 0% APR finance available on any basket over £99
- 365 day 'no hassle' returns
- Free UK delivery, on a date that suits you
