Off-road touring can be a zesty enterprise, but it’s not without its perils. Bicycles are simple machines that are extremely efficient, but all simple machines carry along with them the chance of breaking down. This efficiency can get you in trouble if your bike decides to break down far away from the comforts of your parent’s basement. If you’re going to ride your bicycles where no one can see, you better take gear that’s up to the task. Troll is up to the task.

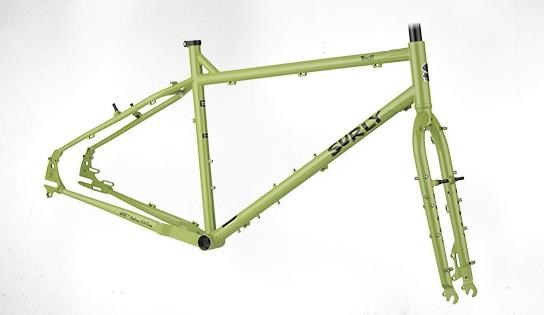

Our Troll was once a simple mountain bike frame with a few extras that made it nice for touring. The Troll has evolved into a frame that has been pushed deeper into the category of off-road touring. Its geometry is no longer suspension corrected, which gives it more room for a larger frame bag. We’ve also adorned this frame with our Gnot-Boost spacing, allowing you to use any mountain bike hub whether it be 135mm QR, 12 x 142mm thru-axle, or 12 x 148mm Boost hub. The chainstay yoke has been redesigned to be fully compatible with 26+ tyres and comes with the always-comfy Jones Loop bar. The dropouts still allow you to run disc brakes, fenders, a Rohloff hub, and racks simultaneously. It also comes with more braze-ons than you thought possible – there are four triple bottle mounts on the fork alone (don’t get excited, you can only run one Anything Cage per fork leg), as well as two more triple bottle mounts on the down tube.

Troll is a bike that has one purpose – and that purpose is to carry you as far away from society as possible. Man has known for eons the call of the indifferent forest. The inexorable march of time, and dumb shit like cell phones, have dulled our senses and made us afraid. Reclaim your animalistic tendencies atop Man’s greatest invention.

Frame Highlights

Rear Dropouts- Horizontal slotted with derailleur hanger, 145mm Gnot-Boost O.L.D. Features Rohloff torque arm slot and threaded eyelets for fenders, racks and Surly trailer mounts (10-12mm 135 adapters included)
Brake Compatibility- Disc and rim brake compatible. Disc mounts are 51mm IS Rim brake pivots are removable. Note: rear disc brake is limited to 160mm maximum rotor diameter and requires the use of Surly caliper adapter (included with frames and bikes)
Braze-ons/extras- Full-length Surly Trip Guide housing line guides for derailleurs and brakes; two sets of bottle cage mounts; removable post cantilever pivots; upper seatstay threaded barrels, 4 sets of triple bottle mounts, mid-and low-blade fully threaded through-blade fork eyelets; threaded holes for racks, fenders and trailer mounting nuts; Rohloff OEM2 axle plate mounting slot
Seatpost diameter- 27.2mm
Seatpost clamp- 30mm (Surly stainless included)
Headtube- 1-1/8? threadless
Front Derailleur Clamp- 6mm, top-pull or Shimano high direct mount (adaptor included)
Bottom bracket- 73mm shell width, threaded standard English (1.37? x 24t)
Chainring Clearance- 24/36/48t
Tyre Clearance- 26 x 3"
Fork- TIG-welded tapered & butted 4130 CroMoly, non-suspension corrected, tapered straight blade. Low- and mid-blade fully threaded through-blade rack eyelets; fender mount eyelets at dropout; 1-1/8? x 260mm threadless steer tube, 51mm disc mount (180mm max. rotor diameter), removable cantilever pivots, two sets of triple bottle mounts on each fork blade. Note: you can’t always mount bottles on the fork with every rack
Thru Axle- Surly 12x142/148 Rear Thru Axle (not included)

Occasionally, without notice, manufacturers change product design and/or specifications.
