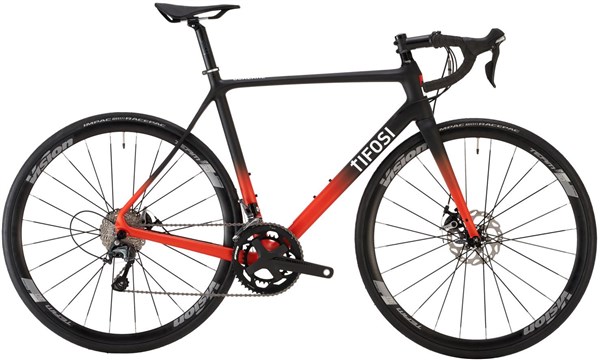

Tifosi Scalare Disc Tiagra Mechanical 2021 - Road Bike
Scalare Disc Tiagra Mechanical
The Scalare is an entry level carbon fibre road bike but with the feel and benefits normally only associated with much higher end models. Whether you are an all-day sportive rider or entering your first amateur race, the Scalare will be your perfect partner.
The frame is produced from Toray T500 and T700 carbon fibre, these two different grades of carbon are used in key areas to give the perfect balance between strength, stiffness, weight and responsiveness.
200g lighter than the original Scalare model and now fully compatible with mechanical and electronic groupsets, the frame and fork are designed with clearance for up to 28mm tyres.
Disc brake mounts are the new flat mount standard for hydraulic or mechanical calipers. Thru-axles keep everything stiff and secure.
Tifosi's R&D department has also focused on improving ride comfort with updated rear stays to dampen shock and road buzz without compromising it's excellent road feel.
Mudguards can be mounted using the hidden mudguard eyelets in the frame and fork.
Designed and assembled in the UK.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | UD Toray T500 and T700 Carbon |
Fork | Carbon UD 1-1/8" to 1-1/2" |
Stem | Tifosi Alloy |
Bars | Tifosi Alloy |
Front Brake | Tektro Mechanical (MD-C510) Flat Mount Disc |
Rear Brake | Tektro Mechanical (MD-C510) Flat Mount Disc |
Front Mech | Shimano Tiagra 2x |
Rear Mech | Shimano Tiagra 10x |
Shifters | Shimano Tiagra 10x2 |
Speed | 20 |
Rims | Vision Team 30 TLR Disc |
Front Hub | 12x100mm |
Rear Hub | 12x142mm |
Front Tyre | IMPAC RacePac 700x28c |
Rear Tyre | IMPAC RacePac 700x28c |
Seat Post | Tifosi Alloy |
Saddle | Selle Italia Model X |
Bottom Bracket | 86.5x41mm |
Chain | KMC 10x |
Cassette | Shimano Tiagra 10x 11/34T |
See the table below to find the right size.
Road Bike Sizing
XXS (44)
4'8"
5'1"
XS (48)
5'1"
5'4"
S (51)
5'4"
5'7"
M (54)
5'7"
5'10"
L (56)
5'10"
6'0"
XL (58)
6'0"
6'3"
XXL (60)
6'3"
6'5"
XXXL (62)
6'5"
6'9"
Read our bike size guide for more information on sizing.
Height |
Size |
|||||||
4’8” / 143cm |
44 (XXS) |
|
|
|
|
|
|
|
4’9” / 145cm |
44 (XXS) |
|
|
|
|
|
|
|
4’10” / 148cm |
44 (XXS) |
|
|
|
|
|
|
|
4’11” / 150cm |
44 (XXS) |
|
|
|
|
|
|
|
5’0” / 152cm |
44 (XXS) |
|
|
|
|
|
|
|
5’1” / 155cm |
44 (XXS) |
48 (XS) |
|
|
|
|
|
|
5’2” / 158cm |
|
48 (XS) |
|
|
|
|
|
|
5’3” / 160cm |
|
48 (XS) |
|
|
|
|
|
|
5’4” / 163cm |
|
48 (XS) |
51 (S) |
|
|
|
|
|
5’5” / 165cm |
|
|
51 (S) |
|
|
|
|
|
5’6” / 168cm |
|
|
51 (S) |
|
|
|
|
|
5’7” / 170cm |
|
|
51 (S) |
54 (M) |
|
|
|
|
5’8” / 173cm |
|
|
|
54 (M) |
|
|
|
|
5’9” / 175cm |
|
|
|
54 (M) |
|
|
|
|
5’10” / 178cm |
|
|
|
54 (M) |
56 (L) |
|
|
|
5’11” / 180cm |
|
|
|
|
56 (L) |
|
|
|
6’0” / 183cm |
|
|
|
|
56 (L) |
58 (XL) |
|
|
6’1” / 185cm |
|
|
|
|
|
58 (XL) |
|
|
6’2” / 188cm |
|
|
|
|
|
58 (XL) |
|
|
6’3” / 191cm |
|
|
|
|
|
58 (XL) |
60 (XXL) |
|
6’4” / 193cm |
|
|
|
|
|
|
60 (XXL) |
|
6’5” / 196cm |
|
|
|
|
|
|
60 (XXL) |
62 (XXXL) |
6’6” / 198cm |
|
|
|
|
|
|
|
62 (XXXL) |
6’7” / 201cm |
|
|
|
|
|
|
|
62 (XXXL) |
6’8” / 203cm |
|
|
|
|
|
|
|
62 (XXXL) |
6’9” / 205cm |
|
|
|
|
|
|
|
62 (XXXL) |
Read our bike size guide for more information on sizing.
