Wheels Manufacturing 6003, 6803, and 6903 Sealed Bearing Extractor - (17mm)

The correct size extractor will fit snugly into the inner diameter (I.D.) of the sealed bearing you wish to extract

Place extractor into I.D. of sealed bearing until it seats flush with the shoulder of the extractor

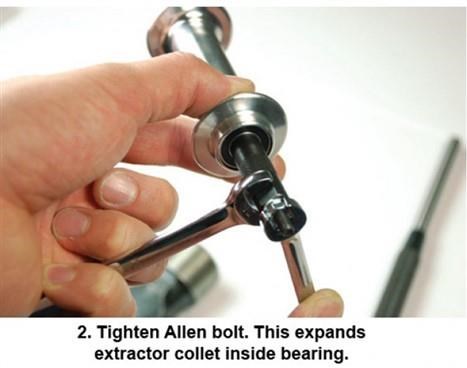

Tighten nut with wrench while securing extractor with other wrench. Tighten nut until the extractor is firmly in place within the I. D. of the sealed bearing

Once the extractor is secured, align a punch with back side of the extractor

Gently tap on the punch until bearing is removed along with the extractor

The bearing is now removed. Install new sealed bearings with a Wheels Mfg PRESS-1 (rear hub & bbs) or PRESS-2 (front hub)
