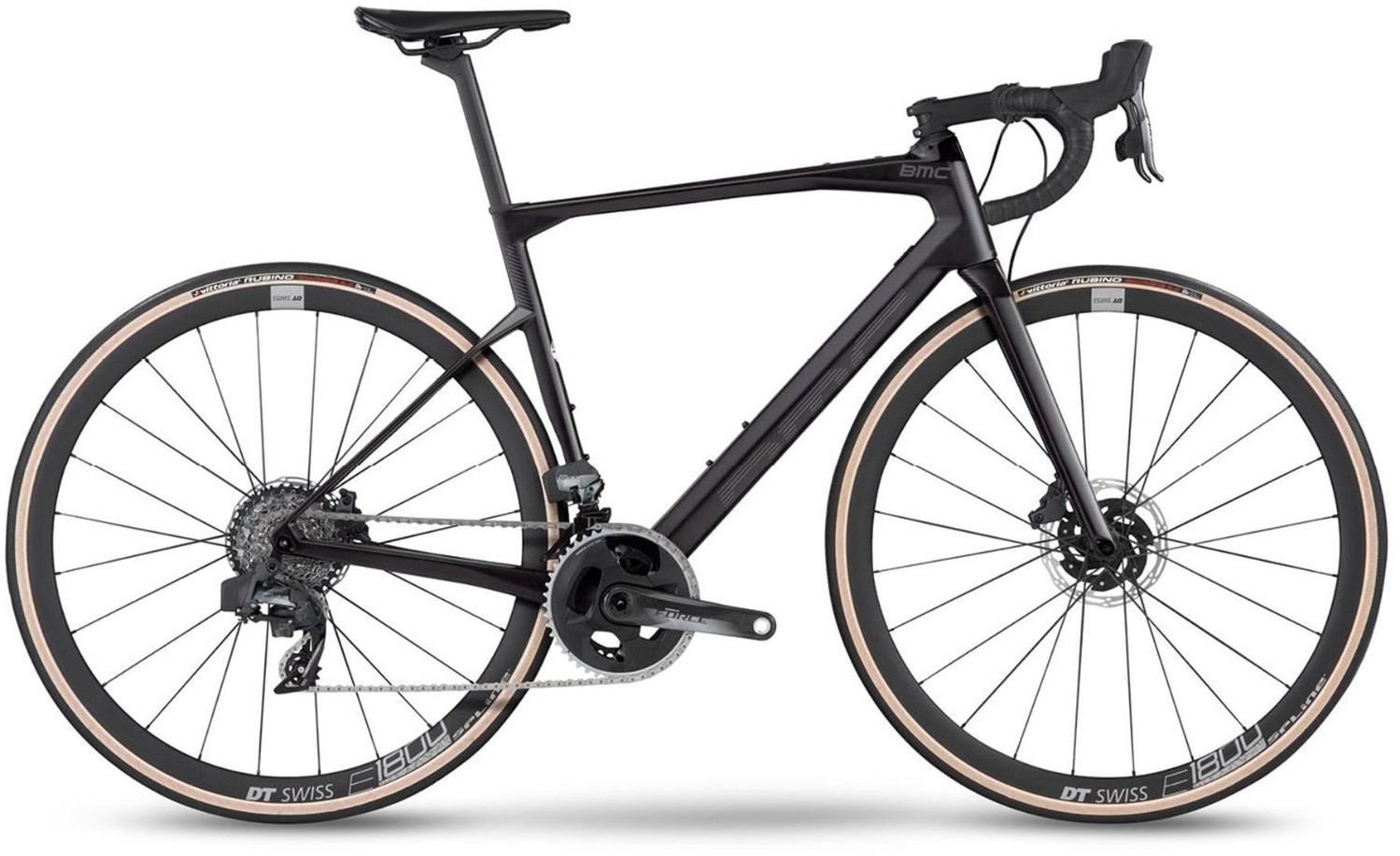

BMC Roadmachine TWO Force AXS HRD 2023 - Road Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Roadmachine Premium Carbon with Tuned Compliance Concept Endurance. Internal Cable Routing. PF86 Bottom Bracket. Flat Mount Disc. 12x142mm Thru-Axle |
Fork | Roadmachine Premium Carbon with Tuned Compliance Concept Endurance. Internal Cable Routing. Flat Mount Disc. 12x100mm Thru-Axle |
Stem | BMC RSM01 |
Bars | BMC RAB 02 - Ergo Top Shape - Compact Bend |
Front Brake | SRAM FORCE eTap AXS HRD - Centerline X Rotors 160mm |
Rear Brake | SRAM FORCE eTap AXS HRD - Centerline X Rotors 160mm |
Brake Lever | SRAM FORCE eTap AXS HRD |
Front Mech | SRAM Force eTap AXS |
Rear Mech | SRAM Force eTap AXS |
Shifters | SRAM FORCE eTap AXS HRD |
Speed | 2x12 |
Rims | DT SWISS E 1800 SPLINE Disc - 32mm |
Front Hub | DT Swiss 370 Spline Disc |
Rear Hub | DT Swiss 370 Spline Disc |
Front Tyre | VITTORIA RUBINO - 28mm |
Rear Tyre | VITTORIA RUBINO - 28mm |
Seat Post | Roadmachine Premium Carbon D-Shaped Seatpost |
Saddle | Fizik Taiga |
Chainset | SRAM FORCE AXS 46-33T |
Bottom Bracket | PF86 |
Chain | SRAM FORCE 12 SPEED |
Cassette | SRAM FORCE XG-1270 10-36T |
Pedals | Resin Platform |
BMC Roadmachine 2023 Size Chart
Size | Height (cm) | Height (Inches) |
47 | < 166 | < 5'5 |
51 | 166 - 174 | 5'5 - 5'8 |
54 | 172 - 180 | 5'8 - 5'11 |
56 | 178 - 186 | 5'10 - 6'1 |
58 | 184 - 192 | 6'0 - 6'3 |
61 | >190 | > 6'3 |
BMC Roadmachine 2023 Geometry
SIZE | 47 | 51 | 54 | 56 | 58 | 61 |
Top Tube MM (tt) | 522 | 532 | 546 | 556 | 568 | 583 |
Wheelbase MM (wb) | 982 | 999 | 997 | 1008 | 1020 | 1035 |
Seat Angle (sa) | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
Seatpost Length MM | 330 | 380 | 380 | 380 | 380 | 430 |
Stack MM | 516 | 541 | 562 | 586 | 610 | 644 |
Trail MM (trail) | 63 | 63 | 63 | 63 | 63 | 63 |
Rear Center MM (rc) | 410 | 410 | 410 | 410 | 410 | 410 |
Reach MM (reach) | 374 | 382 | 386 | 390 | 394 | 398 |
Head Tube MM (ht) | 112 | 139 | 156 | 181 | 206 | 242 |
Head Angle (ha) | 71.2 | 71.2 | 72 | 72 | 72 | 72 |
BB Drop MM (drop) | 71 | 71 | 71 | 71 | 71 | 71 |
Stem Length MM | 90 | 90 | 100 | 110 | 110 | 120 |
Seat Tube MM (st) | 420 | 457 | 500 | 522 | 539 | 573 |
Stem Angle | ±8 | ±8 | ±8 | ±8 | ±8 | ±8 |
Post Offset MM | 15 | 15 | 15 | 15 | 15 | 15 |
Crank Length MM | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
Fork Rake MM (fr) | 50 | 50 | 45 | 45 | 45 | 45 |
Front Center MM (fc) | 583 | 599 | 597 | 609 | 621 | 635 |
Fork Length MM (fl) | 375 | 375 | 375 | 375 | 375 | 375 |
Bar Width MM | 400 | 420 | 420 | 420 | 420 | 440 |
Bar Reach MM | 70 | 70 | 70 | 70 | 70 | 70 |
Bar Drop MM | 125 | 125 | 125 | 125 | 125 | 125 |
What size frame do I need if I am between sizes? - read here
