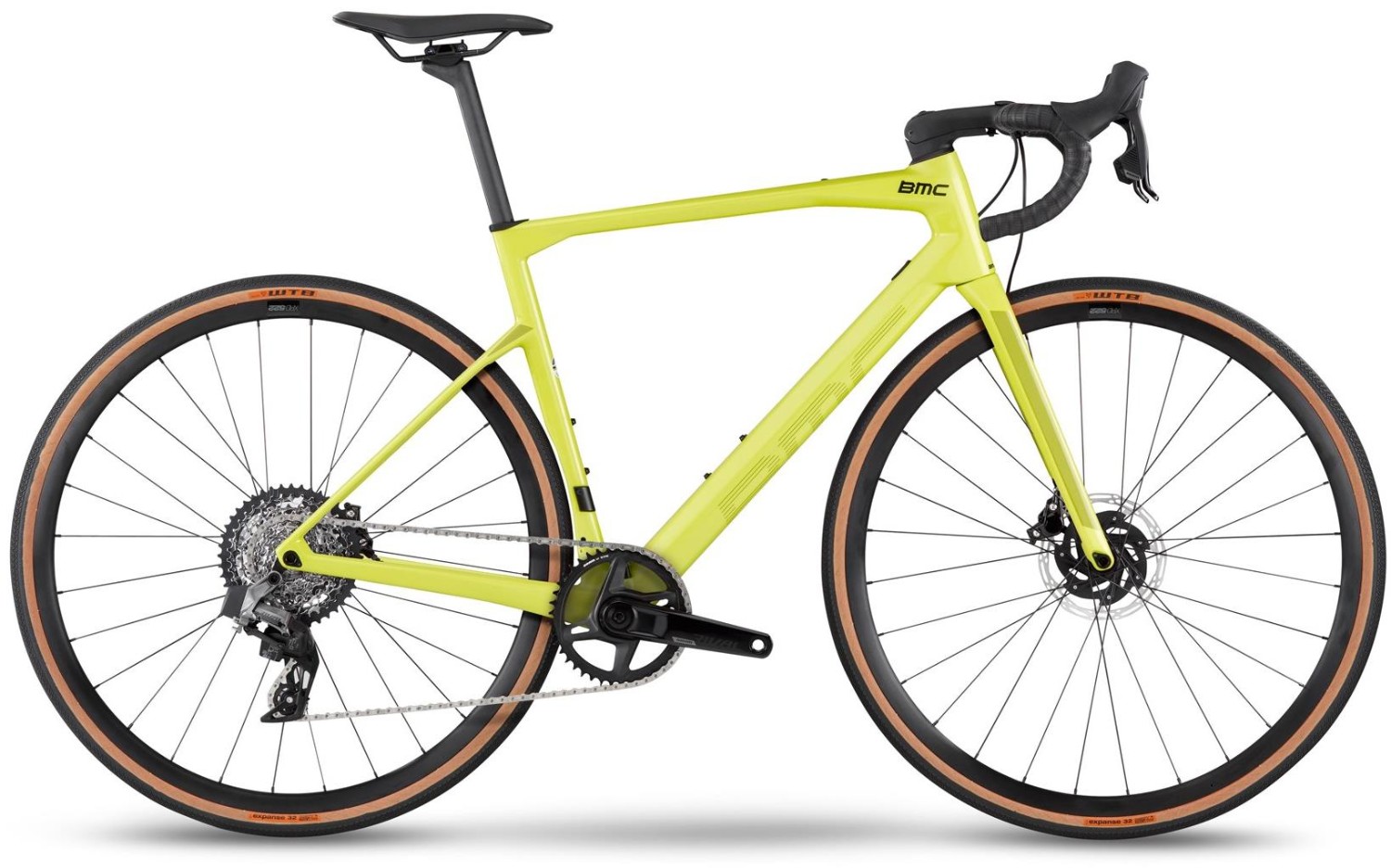

BMC Roadmachine X TWO Rival AXS XPLR 2023 - Road Bike
The BMC Roadmachine X TWO extends the Roadmachine’s reach well beyond paved roads, opening up countless new ways of getting from A to B, via C, D and E. Its Premium Carbon frame and fork are designed using TCC Endurance technology, with internal cable routing, a Premium Carbon D-Shape seatpost and advanced ICS stem with Micro Travel technology for comfort over the rough stuff. Featuring a 1x SRAM Rival eTap AXS 12-speed wireless groupset, 25mm XRD-522 tubeless-ready wheels and 32mm WTB tires, the Roadmachine X TWO all-road bike is ready to roam.
Key features:
- Roadmachine X Premium Carbon with Tuned Compliance Concept Endurance frame
- Roadmachine X Premium Carbon with Tuned Compliance Concept Endurance Internal Cable Routing fork
- SRAM Rival eTap AXS gears give smooth and consistent shifting
- SRAM Rival eTap AXS HRD brakes gives the stopping power no matter the weather
- Colours: Lime Yellow / Black
- Sizes: 47cm , 51cm , 54cm , 56cm , 58cm , 61cm
- The BMC Roadmachine X TWO is available with 0% APR finance
Tuned compliance concept (TCC) endurance
The most capable version of our TCC technology: take the edge off the roughest roads to push harder and ride further. The ultimate balance between comfort and performance for a ride that is both forgiving and fast.
ICS MTT x Redshift suspension stem
Utilizing durable cartridge bearings for rotation with suspension provide by two elastomers positioned inside the stem body. Each elastomer is easily exchangeable, allowing for ride customization, depending on weight, riding style and terrain, with an addition elastomer preventing hard top outs. Fully compatible with integrated cockpit technology framesets, for clean aesthetics and extended durability.
Versatile geometry
The long front-end improves control on any terrain, while the short chainstays reward you with rapid accelerations.
Premium carbon fork and flat mount brakes
Agile handing and terrain-smoothing compliance are benefits of our premium carbon fork. Flat-moun brakes blend in with the clean, minimalist design in true Swiss style.
Improved cable routing
Improved durability and a clean, understated look.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Roadmachine X Premium Carbon with Tuned Compliance Concept Endurance. Internal Cable Routing. PF86 Bottom Bracket. Flat Mount Disc. 12x142mm Thru-Axle |
| Fork | Roadmachine X Premium Carbon with Tuned Compliance Concept Endurance. Internal Cable Routing. Flat Mount Disc. 12x100mm Thru-Axle |
| Stem | ICS MTT x Redshift Suspension Stem - Integrated Cockpit Design |
| Bars | BMC RAB 02 - Ergo Top Shape - Compact Bend |
| Front Brake | SRAM Rival eTap AXS HRD - Paceline Rotors 160mm |
| Rear Brake | SRAM Rival eTap AXS HRD - Paceline Rotors 160mm |
| Brake Lever | SRAM Rival eTap AXS HRD |
| Rear Mech | SRAM Rival XPLR eTap AXS |
| Shifters | SRAM Rival eTap AXS |
| Speed | 1x12 |
| Rims | XRD-522 - Tubeless Ready - 25 mm |
| Front Hub | XRD-522 |
| Rear Hub | XRD-522 |
| Front Tyre | WTB Expanse - 32mm |
| Rear Tyre | WTB Expanse - 32mm |
| Seat Post | Roadmachine X Premium Carbon D-Shaped Seatpost |
| Saddle | Fizik Terra Argo X3 |
| Chainset | SRAM RIVAL AXS 1 44T |
| Bottom Bracket | PF86 |
| Chain | SRAM Rival 12 Speed |
| Cassette | SRAM RIVAL AXS XPLR XG-1251. 10-44T |
| Pedals | Resin Platform |
Roadmachine X Sizing
|
Size |
47 |
51 |
54 |
56 |
58 |
61 |
|
Rider height (cm) |
<166 |
166-174 |
172-180 |
178-186 |
184-192 |
>190 |
|
Stack (mm) |
525 |
550 |
571 |
585 |
604 |
628 |
|
Reach (mm) |
376 |
376 |
385 |
391 |
400 |
408 |
|
Seat tube length (mm) |
465 |
490 |
533 |
548 |
564 |
600 |
|
Top tube length (mm) |
532 |
539 |
554 |
564 |
579 |
594 |
|
Head tube length (mm) |
128 |
154 |
172 |
187 |
205 |
228 |
|
Seat angle |
73.5 |
73.5 |
73.5 |
73.5 |
73.5 |
73.5 |
|
Head angle |
70.5 |
70.5 |
71.5 |
71.5 |
72 |
72.5 |
|
Rear centre (mm) |
420 |
420 |
420 |
420 |
420 |
420 |
|
Front centre (mm) |
589 |
598 |
607 |
615 |
625 |
640 |
|
Wheelbase (mm) |
998 |
1007 |
1016 |
1024 |
1034 |
1044 |
|
BB Drop (mm) |
71 |
71 |
71 |
71 |
71 |
71 |
|
Fork length (mm) |
369 |
369 |
369 |
369 |
639 |
369 |
|
Fork rake (mm) |
45 |
45 |
45 |
45 |
45 |
45 |
|
Trail (mm) |
73 |
73 |
66 |
66 |
63 |
60 |
|
Crank length (mm) |
170 |
170 |
172.5 |
172.5 |
175 |
175 |
|
Stem length (mm) |
90 |
90 |
100 |
100 |
110 |
110 |
|
Stem angle |
8 |
8 |
8 |
8 |
8 |
8 |
|
Bar width (mm) |
400 |
420 |
420 |
420 |
440 |
440 |
|
Bar drop (mm) |
125 |
125 |
125 |
125 |
125 |
125 |
|
Bar reach (mm) |
70 |
70 |
70 |
70 |
70 |
70 |
|
Seatpost length (mm) |
250 |
250 |
310 |
310 |
310 |
310 |
|
Seatpost offset (mm) |
15 |
15 |
15 |
15 |
15 |
15 |
|
Standover height (mm) |
717 |
757 |
786 |
803 |
820 |
849 |
