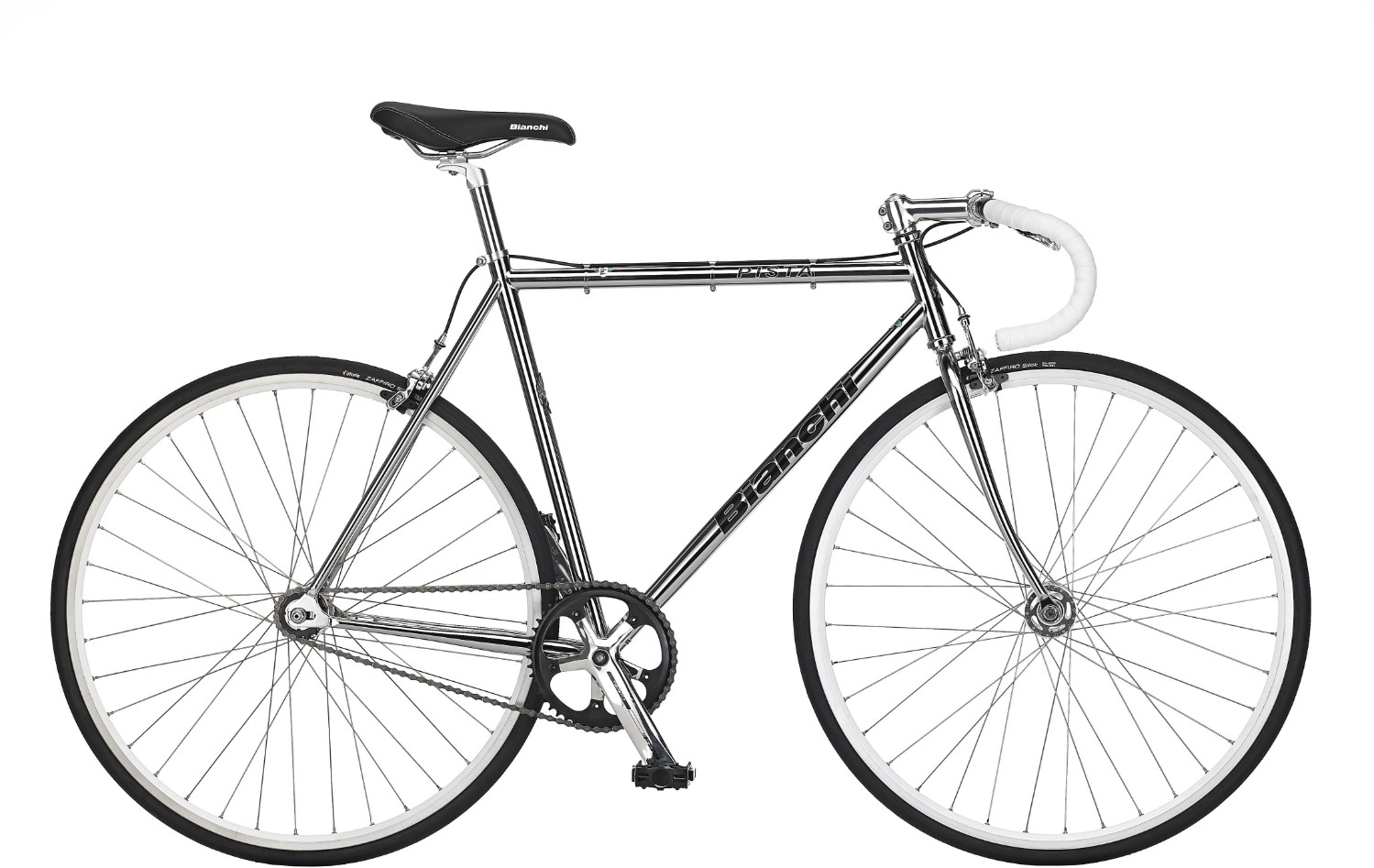

Bianchi Pista Steel 2016 - Road Bike

Out of Stock Sorry, you missed it. But you still have options...

Recommended alternatives We've found some items that may interest you...

Top Rated

Best Deals

New in Road bikes

Archive Product Details Comparing? Here's the info from the out of stock item

Product description

The Bianchi Pista Steel 2016 Features are:

Frame: Bianchi track frame, butted Cr-Mo main tubes w/PG CrMo rear stays, Tig welded, w/track dropouts, size: 46-49-51-53-55-57-59-61cm

Fork: Bianchi Cr-Mo Tig Welded 1”

Headset: VP-A34C, 1” steel, semi-cartridge sealed

Bars: Steel, width: 420mm for all sizes, diam. 26mm

Stem: Alloy AL6061, diam 25.4MM, rise -158 for ext: 90mm-49/51cm, rise -178 for 110mm-53/55cm, rise -78 for 120mm-57/59cm, rise -178 130mm-61cm

Speed: 1

Chainset: Fsa Tempo Track 48T, JIS/3/32”, crank length: 165mm-49/53cm, 170mm-55/59cm, 172.5mm- 61/63cm

Bottom Bracket: Fsa BB-7420ST, cartridge, seal bearings, steel cup, JIS 68/110.5mm

Cassette: Shimano SS-7600, 16T fixed sprocket, 1/2”x3/32” + freewheel sprocket 16T assembled on the left side

Chain: Kmc Z-50 1/2x3/32”

Front Brake: RC-452, Alloy dual pivot w/normal pad

Rear Brake: RC-452, Alloy dual pivot w/normal pad

Rims: DA-17 Alloy double wall 36hx14G, CNC machined

Front Hub: Joytech JY-165SBT/A alloy, ball bearing, 36hx14G, OLD 100mm

Rear Hub: Joytech JY-166SBT/A alloy, flip/flop hub, ball bearing 36hx14G, OLD 120mm

Tyres: Vittoria Zaffiro Slick, 25-622, 700x25, 26TPI, rigid, black Front Vittoria Zaffiro Slick, 25-622, 700x25, 26TPI, rigid, black Rear

Seatpost: Alloy, diam. 27.2mm, L. 250mm

Pedals: Not Included
