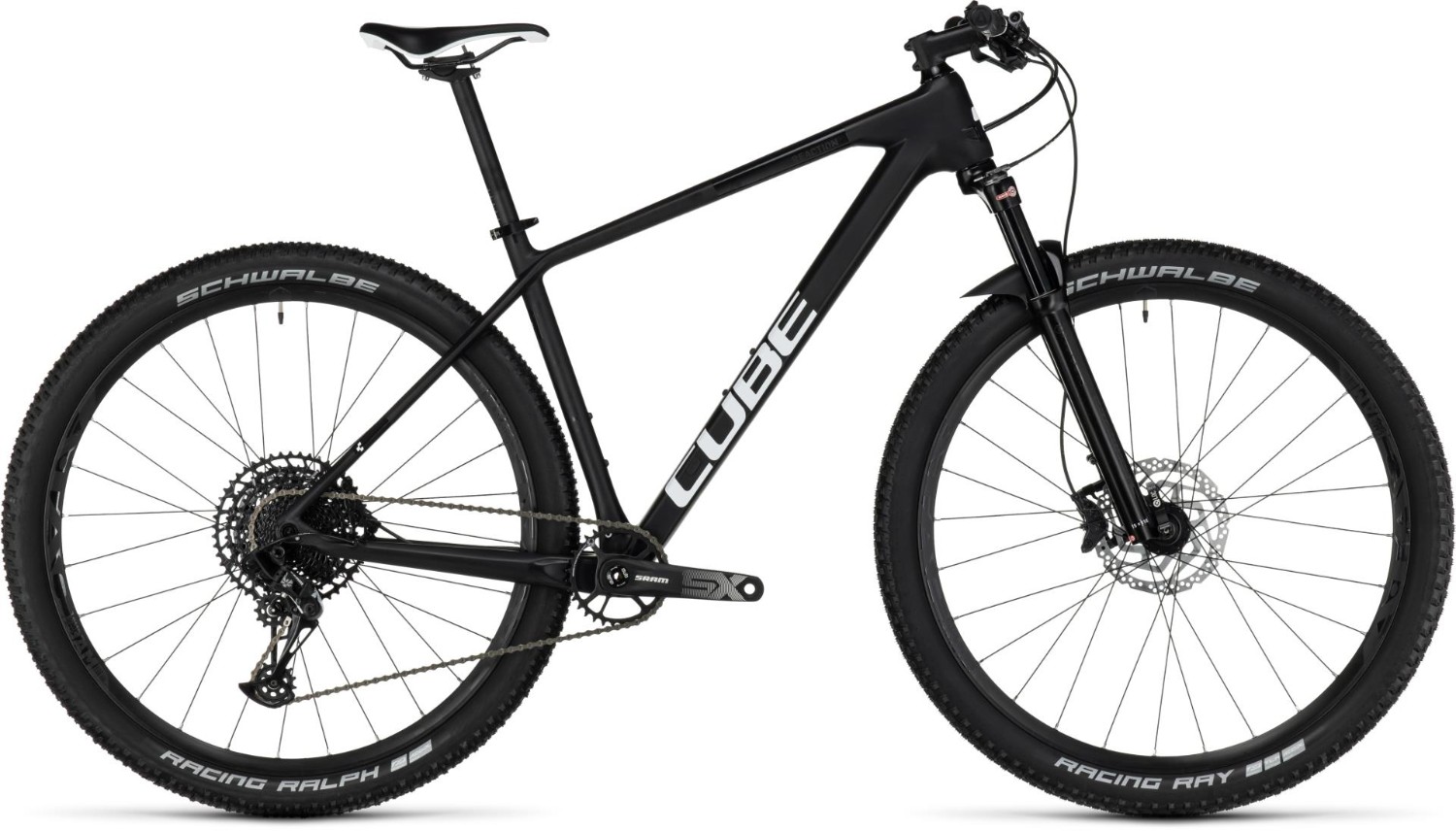

Cube Reaction C:62 One Mountain Bike 2024 - Hardtail MTB
- Frame: C:62® Monocoque Advanced Twin Mold Technology, Tapered Headtube, Boost 12x148mm, Internal Cable Routing, Dropper Post Ready.
- Fork: SR Suntour Raidon 32 Air, Boost, 100mm, Remote Lockout.
- Drivetrain: SRAM NX Eagle™ 12-speed, SRAM SX Eagle™ Trigger Shifters.
- Brakes: Shimano Deore BR-M6100 Hydraulic Disc Brakes (180mm front, 160mm rear).
- Wheels: Answer ATAC AM, Tubeless-Ready, Boost Spacing.
- Tyres: Schwalbe Racing Ray 2.25, Addix Performance, Kevlar.
- Seat Post: Cube Performance Post, 27.2mm.
- Saddle: Natural Fit Venec.
- Chainset: SRAM SX Eagle™ DUB 32T.
- Weight: 11.7 kg.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | C:62® Monocoque Advanced Twin Mold Technology, ARG2, Tapered Headtube, PressFit BB, Boost 12x148mm, Internal Cable Routing, Dropper Post Ready |
Fork | SR Suntour Raidon 32 Air, Boost, 100mm, Remote Lockout |
Headset | VP Integrated, Top 1 1/8", Bottom 1 1/2" |
Stem | CUBE Performance Stem SLX, 31.8mm |
Bars | CUBE Flat Race Bar, 720mm |
Front Brake | Shimano Deore BR-M6100, Hydr. Disc Brake 180mm |
Rear Brake | Shimano Deore BR-M6100, Hydr. Disc Brake 160mm |
Rear Mech | Sram NX Eagle™, 12-Speed |
Shifters | Sram SX Eagle™ Trigger |
Speed | 12 |
Rims | Answer Atac AM, 15x110mm/12x148mm, Tubeless-Ready |
Front Tyre | Schwalbe Racing Ray, Addix Performance, Kevlar, 2.25 |
Rear Tyre | Schwalbe Racing Ray, Addix Performance, Kevlar, 2.25 |
Seat Post | CUBE Performance Post, 27.2mm |
Saddle | Natural Fit Venec |
Chainset | Sram SX Eagle™ DUB 32T |
Bottom Bracket | Sram DUB MTB, 92mm Pressfit |
Chain | Sram SX Eagle™ |
Cassette | Sram PG-1230 Eagle™, 11-50T |
Pedals | Resin Platform Pedals |
Weight | 11.7 kg |
Cube Reaction C:62 Size Chart
Size |
Height (cm) |
Height (in) |
S |
149 - 167 |
4’10” – 5’6” |
M |
166 - 180 |
5’4” – 5’11” |
L |
179 - 190 |
5’10” – 6’3” |
XL |
188 - 195 |
6’2” – 6’5” |
Read our bike size guide for more information on sizing.
Cube Reaction C:62 Geometry Chart
Frame Size | S | M | LG | XL | XXL |
Wheels | 29″ | 29″ | 29″ | 29″ | 29″ |
Stack | 609 | 618 | 627 | 637 | 651 |
Reach | 389 | 406 | 425 | 441 | 456 |
Stack/Reach Ratio | 1.57 | 1.52 | 1.48 | 1.44 | 1.43 |
Top Tube Length | 567 | 588 | 609 | 628 | 648 |
Seat Tube Length | 370 | 420 | 470 | 515 | 565 |
Seat Tube Angle | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
Head Tube Length | 100 | 110 | 120 | 130 | 145 |
Head Tube Angle | 69 | 69 | 69 | 69 | 69 |
BB Drop | 65 | 65 | 65 | 65 | 65 |
BB Height | 309 | 309 | 309 | 309 | 309 |
Front Center | 655 | 676 | 698 | 723 | 739 |
Chainstay Length | 423 | 423 | 423 | 423 | 423 |
Wheelbase | 1,070 | 1,091 | 1,113 | 1,138 | 1,154 |
Rake | 51 | 51 | 51 | 56 | 51 |
Trail | 89 | 89 | 89 | 84 | 89 |
