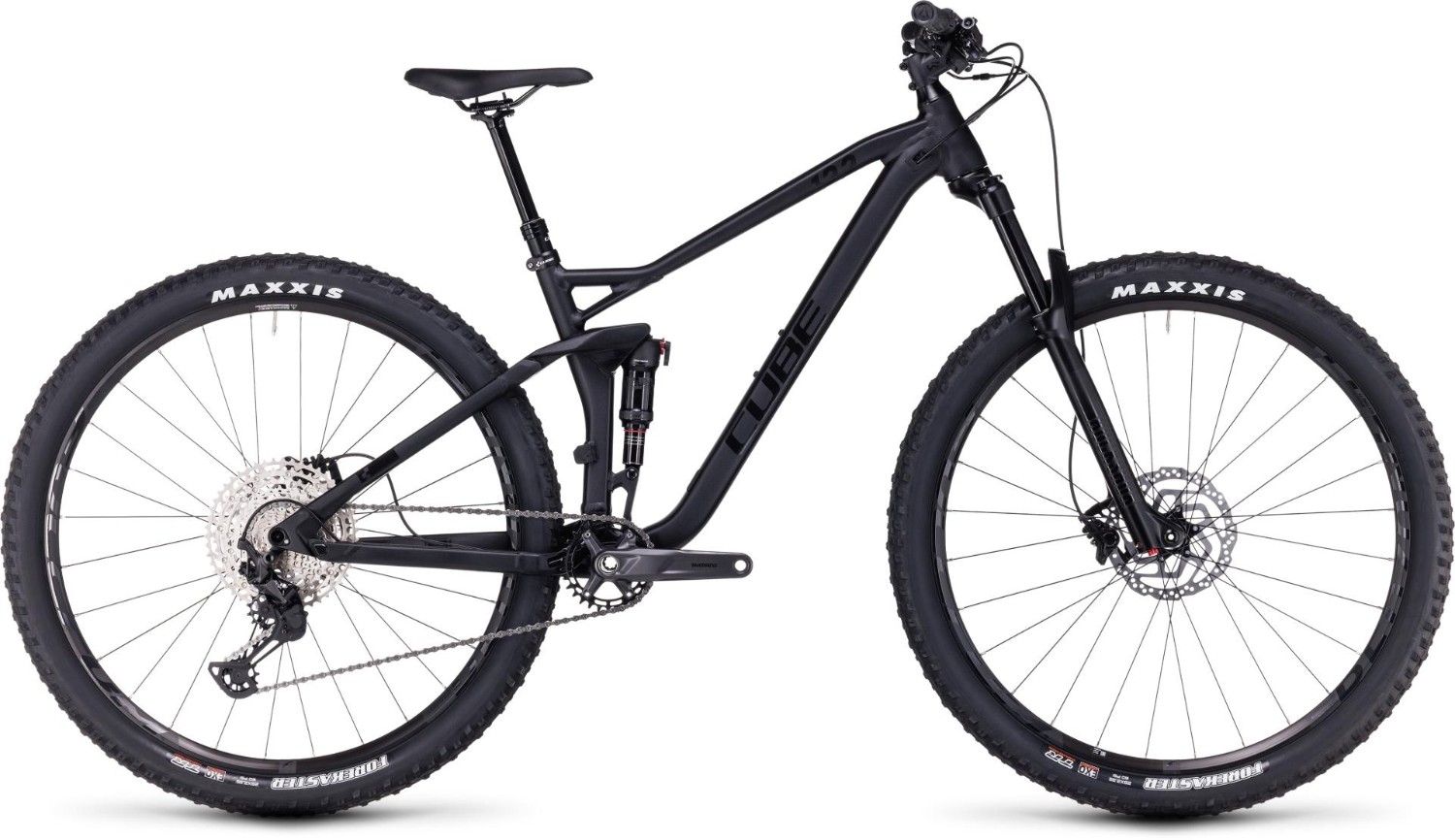

Cube Stereo One22 Race Mountain Bike 2024 - Trail Full Suspension MTB
- Frame: HPA Advanced Hydroform, ATG, ETC 4-link, Boost 148 rear axle.
- Front Suspension: RockShox Recon Gold RL Air, tapered, 15x110mm, 130mm travel.
- Rear Suspension: RockShox Deluxe Select+, 190x45mm, rebound adjust, lockout.
- Drivetrain: Shimano XT 1x12-speed transmission for reliability and a broad range.
- Brakes: Shimano BR-MT500 hydraulic disc brakes (180/180) for powerful and precise stopping.
- Wheels: Fulcrum Red 77, 28/28 spokes, 15x110mm/12x148mm, tubeless-ready.
- Tyres: Maxxis Forekaster, EXO, tubeless-ready, 2.35 for superior traction.
- Comfort and Control: Cube dropper post, Natural Fit Venec Lite saddle, and efficient trail control kinematics.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | HPA Advanced Hydroform, ATG, ETC 4-Link, AXH |
| Fork | RockShox Recon Gold RL Air, Tapered, 15x110mm, 130mm |
| Rear Shock | RockShox Deluxe Select+, 190x45mm, Rebound Adjust, Lockout |
| Headset | VP Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| Stem | Newmen Evolution 318.4, 31.8mm |
| Bars | Newmen Evolution SL 318.25, 760mm |
| Front Brake | Shimano BR-MT500, Hydr. Disc Brake (180/180) |
| Rear Brake | Shimano BR-MT500, Hydr. Disc Brake (180/180) |
| Rear Mech | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Shifters | Shimano Deore SL-M6100, Rapidfire-Plus |
| Speed | 12 |
| Rims | Fulcrum Red 77, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
| Front Tyre | Maxxis Forekaster, EXO, Tubeless Ready, 2.35 |
| Rear Tyre | Maxxis Forekaster, EXO, Tubeless Ready, 2.35 |
| Seat Post | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Saddle | Natural Fit Venec Lite |
| Chainset | Shimano FC-MT511, Boost, 30T |
| Chain | Shimano CN-M6100 |
| Cassette | Shimano Deore CS-M6100, 10-51T |
| Pedals | Resin Platform Pedals |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
