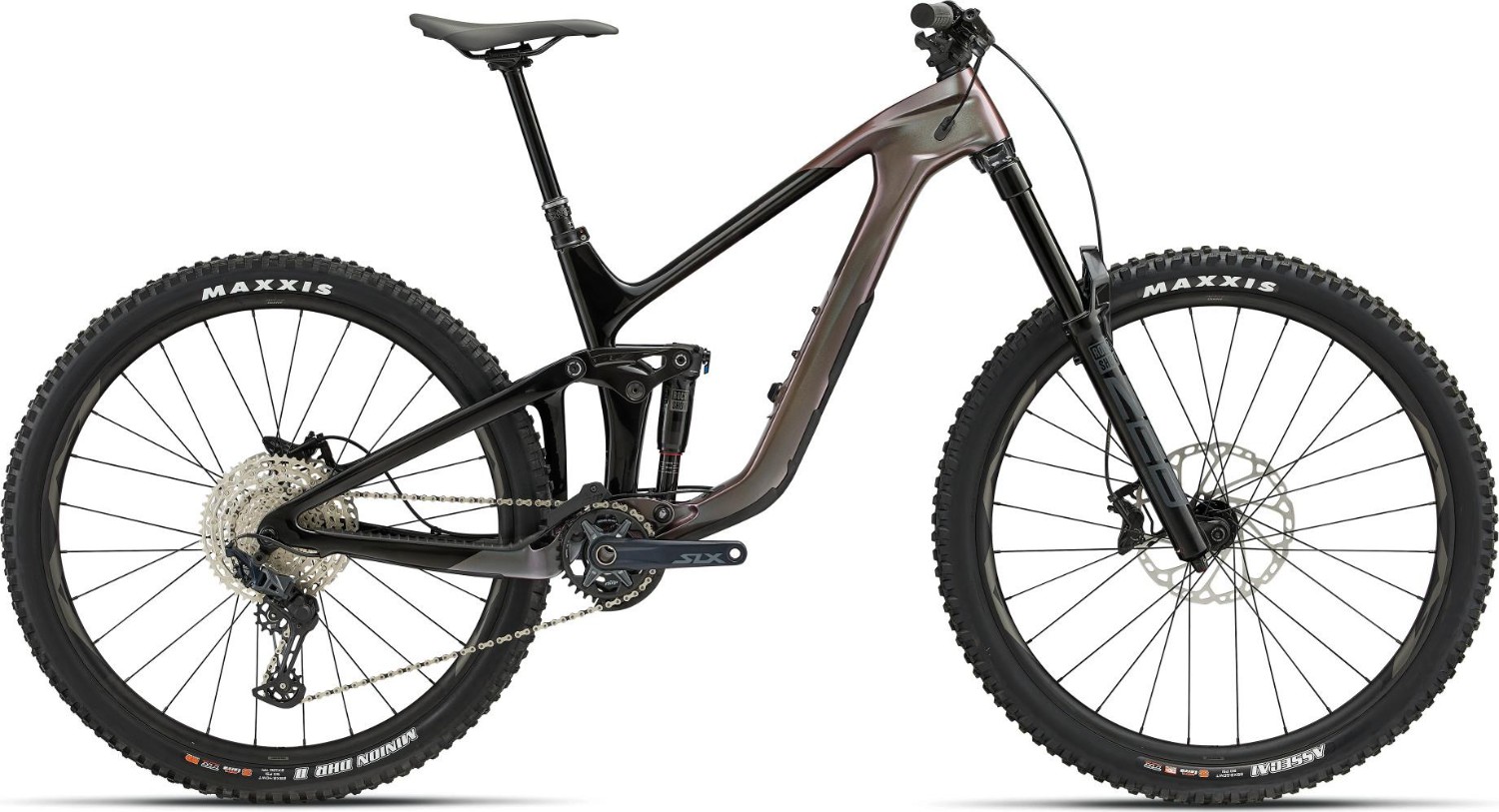

Name: Giant Reign Advanced Pro 29 2 Mountain Bike 2023 - Enduro Full Suspension MTB
Brand: Giant

This all-new composite chassis is built strong, light and fast for giant enduro pros. A new suspension setup been developed, tested and raced at the highest levels. And more adjustability lets you tackle technical trails just the way you like.

This full-composite frameset is engineered with enduro racing geometry and adjustability that lets you change the bike’s handling and riding characteristics with three flip chip settings. Also new is the ability to swap out the stock 29-inch rear wheel for a smaller 27.5-inch one. This “mullet” setup makes for an equally short chainstay length and a shorter reach, giving the bike a snappier feel on aggressive terrain. The updated Maestro suspension system has 160mm of rear wheel travel, paired with a 170mm fork up front. And new integrated down tube storage provides convenient carrying capacity for trail riding essentials.

Race-bred suspension

A new Maestro rear suspension system with longer travel (160mm) was developed and tested under the extreme conditions of Enduro World Series races. The trunnion mount shock has a longer stroke (62.5mm compared to 60mm on the previous generation). And the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall weight.

Adjustable enduro geometry

New flip chip technology lets you switch between three settings depending on the terrain. You can select a 63.5, 63.9 or 64.2-degree head angle and corresponding 78.3, 78.7 or 79-degree seat tube angle, resulting in a 35, 30 or 25mm bottom bracket drop (size medium) to fine-tune handling for trail conditions, riding style and rear-wheel size.

Rear wheel options

Riders can choose either a 29- or 27.5-inch rear wheel, paired with a 29-inch front wheel. The larger 29-inch option improves stability and roll-over capabilities, while the 27.5 option delivers a more agile, snappier feel. It’s a quick and easy change to adjust the bike’s handling and feel.

Occasionally, without notice, manufacturers change product design and/or specifications.

Frame	Advanced-Grade Composite front and rear triangles, Advanced Forged Composite rocker link, 160mm Maestro suspension, OverDrive (1 1/8" - 1 1/2"), BB89.5, UDH, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3
Fork	RockShox ZEB Select, 170mm, Charger RC, 15x110 Maxle Stealth, 44mm offset
Rear Shock	RockShox Deluxe Select+, 205/62.5mm
Stem	Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm
Bars	Giant Contact SLR TR35, composite, 800x35mm, 20mm rise
Front Brake	Shimano Deore BR-MT520, hydraulic, Shimano RT-66 rotors [F]220mm, [R]203mm
Rear Brake	Shimano Deore BR-MT520, hydraulic, Shimano RT-66 rotors [F]220mm, [R]203mm
Brake Lever	Shimano Deore BL-MT501
Front Mech	N/A
Rear Mech	Shimano SLX RD-M7100
Shifters	Shimano SLX SL-M7100, 1x12
Speed	12
Rims	Giant AM 29, ETRTO: 30-622, tubeless ready (TL tape and valve included), alloy
Front Hub	Alloy, sealed
Rear Hub	Giant, loose ball bearing, 6-bolt [R] Giant, cartridge bearing, Micro Spline driver, 6-bolt
Spokes	Sapim Leader
Front Tyre	Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR
Rear Tyre	Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra, DD, TR tubeless
Seat Post	TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 525mm XL: 170-200mm travel / 30.9 x 525mm
Saddle	Giant Romero SL
Chainset	Shimano SLX, 32t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
Bottom Bracket	Shimano, press fit
Chain	KMC X12, w/ Missing Link
Cassette	Shimano Deore M6100, 10x-51T
Pedals	Resin Platform Pedals

Height	Bike Size	Mountain Bike Size
4’8” – 5’1” 143 – 155 cm	XXS	13” (33 cm)
5’1” – 5’4” 155 – 163 cm	XS	15” (38 cm)
5’4” – 5’7” 163 – 170 cm	S	16” (41 cm)
5’7” – 5’10” 170 – 178 cm	M	18” (46cm)
5’10” – 6’0” 178 – 183 cm	L	19” (48cm)
6’0” – 6’3” 183 – 191 cm	XL	20” (51 cm)
6’3” – 6’5” 191 – 196 cm	XXL	21” (53 cm)
6’5” – 6’9” 196 – 205 cm	XXXL	22” (56 cm)
