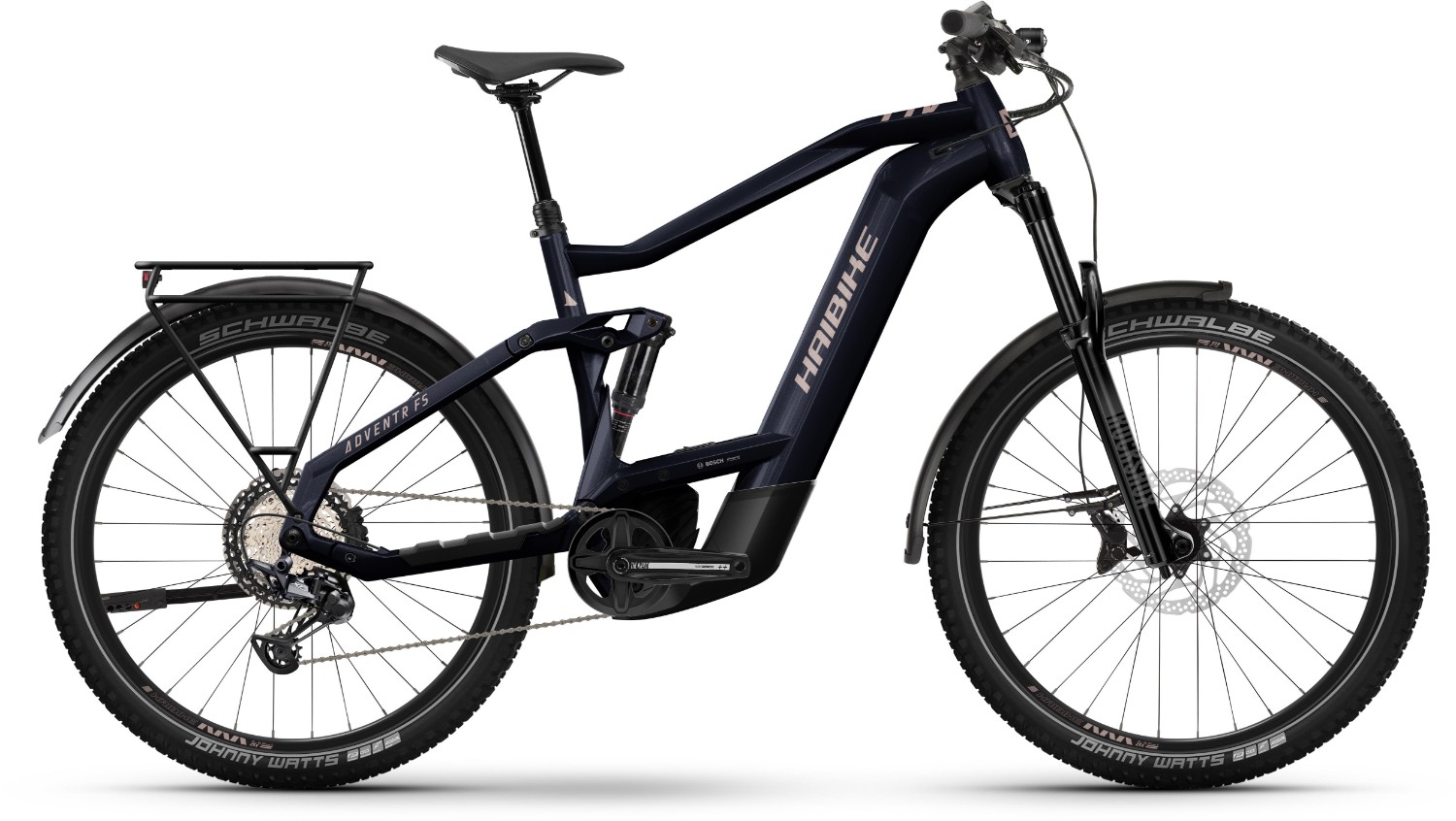

Haibike Adventr FS 11 2023 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | aluminium, Steckachse M12 (1.00) x 148mm, disc brake Post Mount, Travel: 140mm |
| Fork | RockShox 35 Gold RL, air, Travel: 140mm, Aluschaft 1 1/8 - 1 1/2'' tapered, 15 x 110mm thru-axle Boost |
| Rear Shock | RockShox Deluxe Select, air |
| Headset | A-Head Tapered |
| Stem | Alu, A-head, Bar bore: 31.8mm |
| Bars | Haibike Components TheBar ++ 780mm |
| Front Brake | Shimano MT420, aluminium, 203mm |
| Rear Brake | Shimano MT420, aluminium, 203mm |
| Brake Lever | Shimano MT401, aluminium |
| Rear Mech | Shimano Deore XT M8100 Shadow Plus, 12-speed |
| Shifters | Shimano Deore SLX M7100 |
| Speed | 12 |
| Rims | WTB ST i30 TCS, double-walled rim |
| Front Hub | Shimano MT400-B |
| Rear Hub | Shimano MT410-B |
| Spokes | Sapim Race, black |
| Front Tyre | Schwalbe, Johnny Watts, 60-584, 27.5" x 2.35" |
| Rear Tyre | Schwalbe, Johnny Watts, 60-584, 27.5" x 2.35" |
| Seat Post | Dropper-Post Remote, telescope, 34.9mm, aluminium |
| Saddle | Selle Royal Vivo |
| Chainset | Sram X-Sync 2, 38 |
| Bottom Bracket | Integrated |
| Chain | Shimano CN-M6100 |
| Cassette | Shimano M6100, 10-51 teeth |
| Pedals | Freeridepedal aluminium, mit Reflektor |
| Battery Size (WH) | Bosch, PowerTube, 750 Wh |
| Motor | Bosch, Performance CX Smart System, 250W, 85 Nm |
| User Interface | Bosch, Kiox 300 + LED Remote |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
