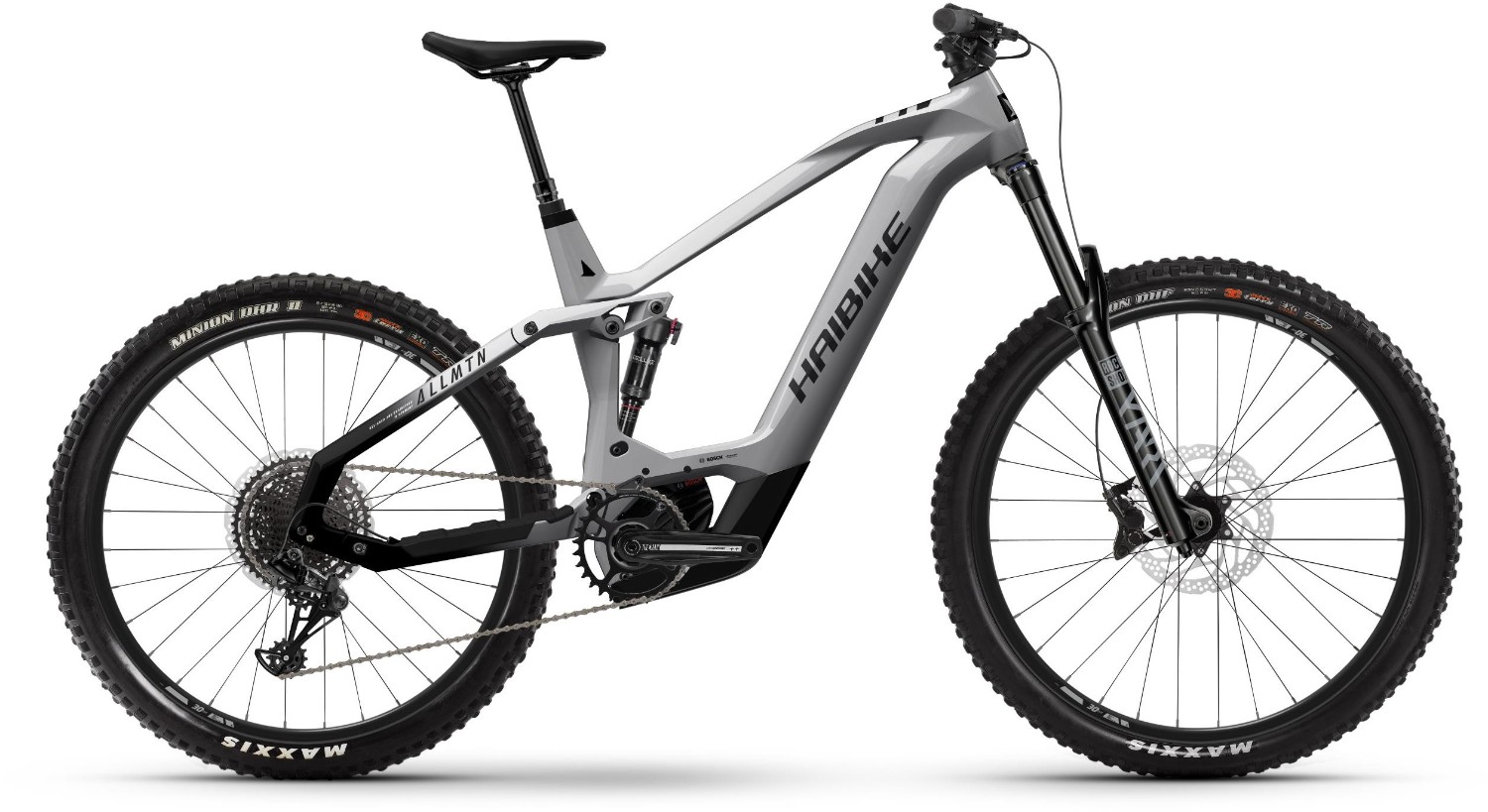

Haibike AllMtn CF 9 2023 - Electric Mountain Bike
Designed with a carbon/aluminium frame and a 160mm RockShox Yari fork, this e-bike balances uphill prowess and downhill control. The Bosch Performance CX motor, delivering 85Nm of torque, effortlessly propels you, while the 750Wh Bosch Powertube keeps you charged. SRAM NX Eagle gears ensure optimal ratios, and Magura's 4-piston disc brakes provide reliable stopping power. The mixed wheel size concept enhances traction, with a 27.5" rear and a comfortable 29" front.
Key Features:
- Frame: Carbon/Aluminium, Thru-Axle M12 x 148mm, Disc Brake Post Mount, Travel: 160mm
- Front Suspension: RockShox Yari RC, Air, Travel: 160mm, 15 x 110mm Thru-Axle Boost
- Rear Suspension: RockShox Deluxe Select Plus, Air
- Drivetrain: SRAM NX Eagle, 12-Speed
- Brakes: Shimano MT420, Aluminium, 203mm
- Wheels: Rodi Tryp 30, Aluminium, Maxxis Minion DHF II and DHR II Tyres
- Standout Feature: Bosch Performance CX Motor, 750Wh Battery
- Finance: Available with 0% APR
Drive Information:
- Motor: Bosch Performance CX Smart System, 250W, 85Nm, 25km/h
- Battery: Bosch Powertube 750Wh
- User Interface: Bosch Kiox 300 + LED Remote
The Bosch Kiox 300 + LED Remote interface keeps you informed, ensuring an intuitive and connected ride. The Haibike AllMtn CF 9 strikes the perfect balance, making it an ideal choice for riders seeking versatility, durability, and the thrill of downhill adventures.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Carbon/Aluminium, thru-axle M12 (1.75) x 148mm, disc brake Post Mount, Travel: 160mm |
| Fork | RockShox Yari RC, air, Travel: 160mm, Aluschaft 1 1/8 - 1 1/2'' tapered, 15 x 110mm thru-axle Boost |
| Rear Shock | RockShox Deluxe Select Plus, air |
| Headset | Acros Cable integration |
| Stem | Alu, A-head, Bar bore: 31.8mm |
| Bars | Haibike Components TheBar ++ 780mm |
| Front Brake | Shimano MT420, aluminium, 203mm |
| Rear Brake | Shimano MT420, aluminium, 203mm |
| Brake Lever | Shimano MT401, aluminium |
| Rear Mech | SRAM NX Eagle, 12-speed |
| Shifters | Sram SX Eagle, trigger switch |
| Speed | 12 |
| Rims | Rodi Tryp 30, eyed, double-walled rim, aluminium |
| Front Hub | Shimano MT400-B |
| Rear Hub | Shimano MT400-B |
| Spokes | Sapim Leader, black |
| Front Tyre | Maxxis Minion DHF II, 65-622 / Maxxis Minion DHR II, 71-584 |
| Rear Tyre | Maxxis Minion DHF II, 65-622 / Maxxis Minion DHR II, 71-584 |
| Seat Post | Dropper-Post Remote, telescope, 31.6mm, aluminium |
| Saddle | fi'zi:k Terra Aidon X5-160 |
| Chainset | Haibike Components, The Crank ++, Aluminium, Sram, Aluminium, 36 teeth |
| Bottom Bracket | Integrated |
| Chain | SRAM SX Eagle |
| Cassette | Sram Eagle PG1210, 11-50 teeth |
| Pedals | Freeridepedal aluminium, mit Reflektor |
| Battery Size (WH) | Bosch PowerTube 750Wh |
| Motor | Bosch Performance CX Smart System, 250W, 85Nm, 25km/h |
| User Interface | Bosch Kiox 300 + LED Remote |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Haibike AllMtn CF 9 2023 - Electric Mountain Bike.
This product is no longer available.
