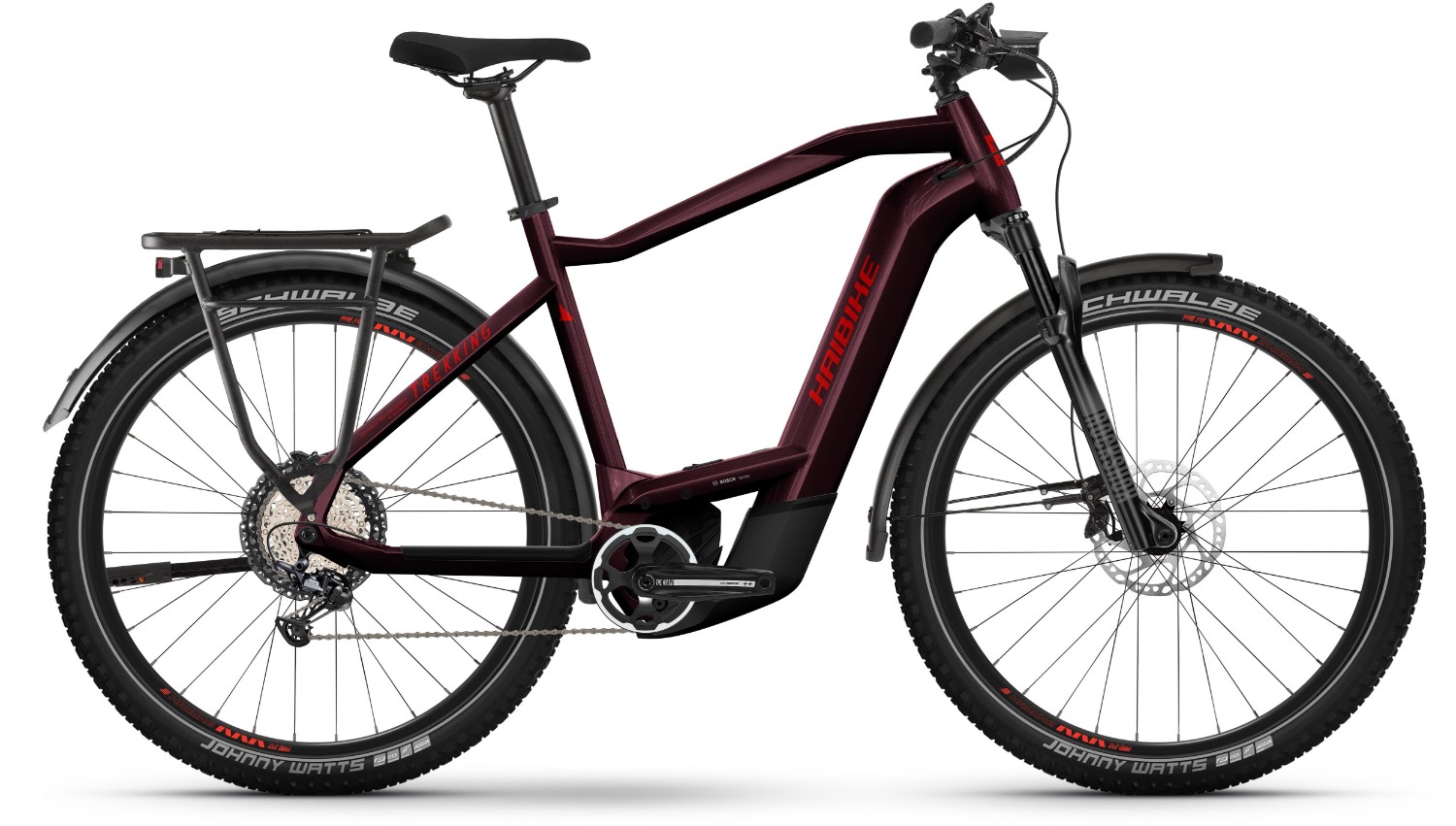

Haibike Trekking 11 High 2023 - Electric Hybrid Bike
- Aluminium Frame: Lightweight and durable frame construction for enhanced stability and agility.
- RockShox Recon RL Fork: 100mm travel fork with remote lockout for smooth and controlled rides on varied terrain.
- Shimano Deore M6120 Brakes: Reliable hydraulic disc brakes for confident stopping power in all conditions.
- SRAM GX Eagle Groupset: Smooth and precise shifting with a wide range of gears for tackling diverse terrain.
- Bosch PowerTube Battery: Integrated 750Wh battery for long-lasting power and extended range.
- Schwalbe Johnny Watts Tyres: 27.5 x 2.35 inch tyres provide excellent traction and stability on both paved and unpaved roads.
- Available with 0%APR Finance
- Motor: Bosch Performance CX Smart System motor with 250W power output and 85Nm of torque.
- Battery: Bosch PowerTube 750Wh battery for long-lasting power and extended range.
- User Interface: Bosch Kiox 300 display with LED remote for intuitive control and monitoring of ride data.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | aluminium, Steckachse M12 (1.00) x 148mm, disc brake Post Mount |
Fork | RockShox Recon RL Remote Lockout, air, Travel: 100mm, aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 100mm thru-axle |
Headset | A-Head Tapered |
Stem | Haibike Components TheStem ++, A-head, Bar bore: 31.8mm, 12˚ |
Bars | Haibike Components TheBar ++ 740mm |
Front Brake | Shimano Deore M6120, aluminium, 203mm / Shimano Deore M6120, aluminium, 180mm |
Rear Brake | Shimano Deore M6120, aluminium, 203mm / Shimano Deore M6120, aluminium, 180mm |
Brake Lever | Shimano Deore M6100, aluminium |
Rear Mech | Shimano Deore XT M8100 Shadow Plus, 12-speed |
Shifters | Shimano Deore M6100, trigger switch |
Speed | 12 |
Rims | Rodi Tryp 30, eyed, double-walled rim, aluminium |
Front Hub | Shimano MT400-B |
Rear Hub | Shimano MT410-B |
Spokes | Sapim Leader, black |
Front Tyre | Schwalbe, Johnny Watts, 60-584, 27.5 x 2.35 inch |
Rear Tyre | Schwalbe, Johnny Watts, 60-584, 27.5 x 2.35 inch |
Seat Post | Haibike Components TheSeatpost ++, patent, 34.9mm, aluminium |
Saddle | Haibike Components TheSaddle |
Chainset | steel, 40 |
Bottom Bracket | Integrated |
Chain | Shimano CN-M6100 |
Cassette | Shimano M6100, 10-51 teeth |
Pedals | VP E461 aluminium, mit Reflektor |
Battery Size (WH) | Bosch, PowerTube, 750 Wh |
Motor | Bosch, Performance CX Smart System, 250 W, 85 Nm |
User Interface | Bosch, Kiox 300 + LED Remote |
Haibike Trekking 2023 Size Chart
Size |
Height (cm) |
Height (Inches) |
S / 48cm |
160 - 168 |
5’3” – 5’6” |
M / 52cm |
168 - 177 |
5’6” – 5’10” |
L / 56cm |
177 - 186 |
5’10” – 6’1” |
XL / 60cm |
186 - 193 |
6’1” – 6’4” |
XXL / 64cm |
193 - 202 |
6’4” – 6’7” |
What size frame do I need if I am between sizes? - read here
Haibike Trekking 2023 Geometry Chart
Frame Size | S / 48cm | M / 52cm | L / 56cm | XL / 60cm | XXL / 64cm |
FRAME HEIGHT (CM) | 48.0 cm | 52.0 cm | 56.0 cm | 60.0 cm | 64.0 cm |
SEAT TUBE ANGLE | 73.0 degrees | 73.0 degrees | 73.0 degrees | 73.0 degrees | 73.0 degrees |
SEAT ANGLE | 73.0 degrees | 73.0 degrees | 73.0 degrees | 73.0 degrees | 73.0 degrees |
HEAD TUBE LENGTH | 155.0 mm | 170.0 mm | 180.0 mm | 190.0 mm | 210.0 mm |
HEAD TUBE ANGLE (DEGREES) | 67.0 degrees | 67.0 degrees | 67.0 degrees | 67.0 degrees | 67.0 degrees |
TOP TUBE HORIZONTAL | 590.0 mm | 610.0 mm | 635.0 mm | 660.0 mm | 685.0 mm |
CHAIN STAY LENGTH | 490.0 mm | 490.0 mm | 490.0 mm | 490.0 mm | 490.0 mm |
BOTTOM BRACKET DROP | 69.0 mm | 69.0 mm | 69.0 mm | 69.0 mm | 69.0 mm |
WHEELBASE | 1186.0 mm | 1198.0 mm | 1224.0 mm | 1250.0 mm | 1278.0 mm |
STACK | 622.0 mm | 636.0 mm | 645.0 mm | 655.0 mm | 673.0 mm |
REACH | 407.0 mm | 414.0 mm | 436.0 mm | 458.0 mm | 478.0 m |
