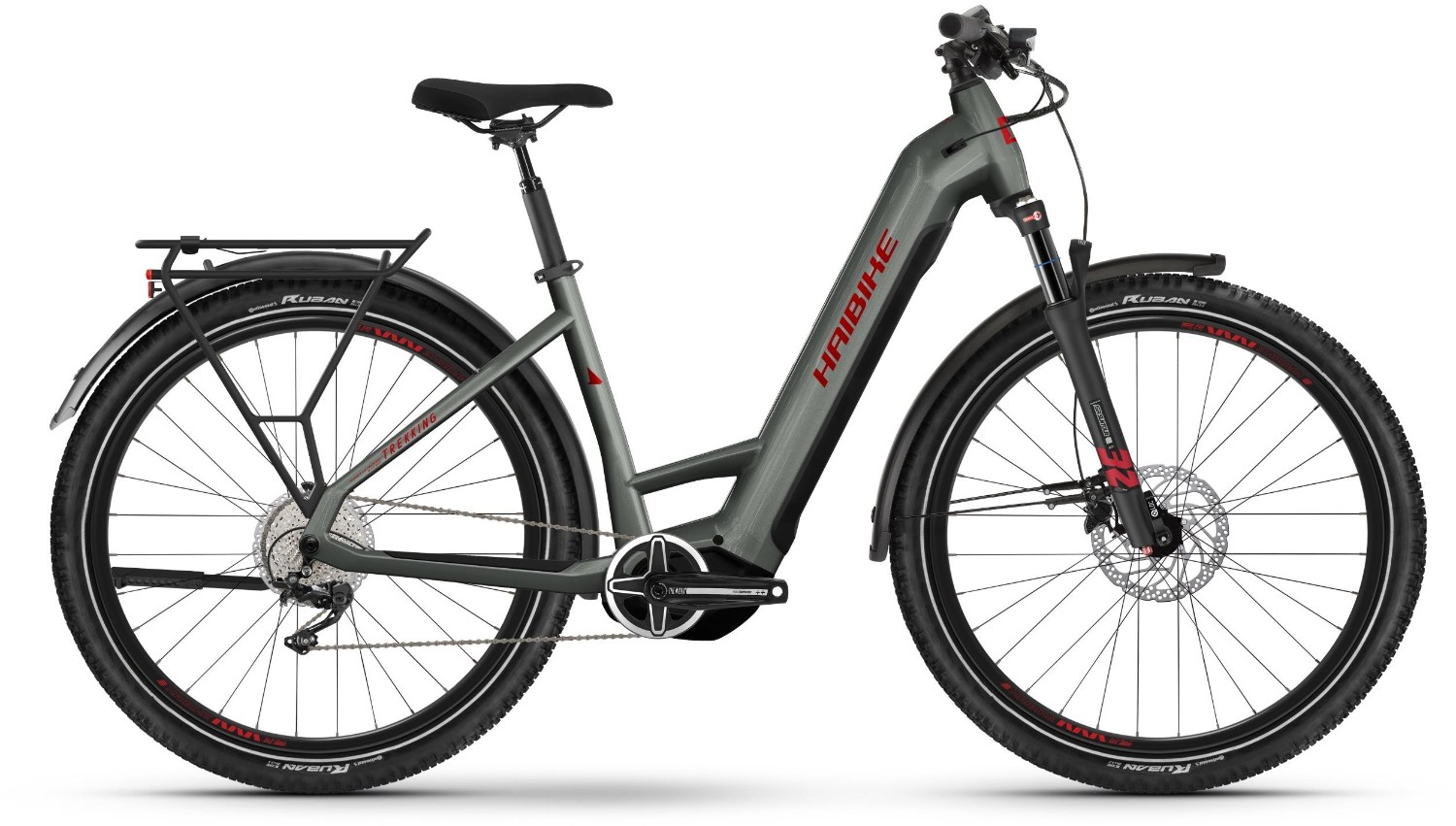

Haibike Trekking 5 Low 2023 - Electric Hybrid Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | aluminium, Steckachse M12 (1.00) x 148mm, disc brake Post Mount |
| Fork | SR Suntour Mobie 25 LOR Lockout, steel spring, Travel: 100mm, Aluschaft 1 1/8 - 1 1/2'' tapered, 15 x 100mm thru-axle |
| Headset | A-Head Tapered |
| Stem | XLC A-Head verstellbar, A-head, Bar bore: 31.8mm |
| Bars | Ergoriser, oversize 720mm |
| Front Brake | Shimano MT410, aluminium, 180mm |
| Rear Brake | Shimano MT410, aluminium, 180mm |
| Brake Lever | Shimano MT402, aluminium |
| Rear Mech | Shimano Deore M5100, 11-speed |
| Shifters | Shimano Deore M5100, trigger switch |
| Speed | 11 |
| Rims | Schürmann Yak25, eyed, double-walled rim, aluminium |
| Front Hub | Shimano MT400 |
| Rear Hub | Shimano MT400-B |
| Spokes | Sapim Leader, black |
| Front Tyre | Continental, Ruban Reflex, 27.5" x 2.3" |
| Rear Tyre | Continental, Ruban Reflex, 27.5" x 2.3" |
| Seat Post | patent, 34.9mm, aluminium |
| Saddle | Selle Royal Essenza |
| Chainset | steel, 38 |
| Bottom Bracket | Integrated |
| Chain | Shimano CN-M6100 |
| Cassette | Shimano M5100, 11-51 teeth |
| Pedals | VP E461 aluminium, mit Reflektor |
| Battery Size (WH) | Intube, PW S2 720Wh |
| Motor | Yamaha PW-S2, 250W, 75Nm, 25km/h |
| User Interface | Yamaha, Side Switch, 1.7" LCD, 7 functions |
Haibike Trekking 2023 Size Chart
|
Size |
Height (cm) |
Height (Inches) |
|
S / 46cm |
155 - 165 |
5’ – 5’4” |
|
M / 50cm |
165 - 175 |
5’4” – 5’7” |
|
L / 54cm |
175 - 185 |
5’7” – 6’1” |
What size frame do I need if I am between sizes? - read here
Haibike Trekking 2023 Geometry Chart
| Frame Size | S / 48cm | M / 52cm | L / 56cm |
| FRAME HEIGHT (CM) | 46.0 cm | 50.0 cm | 54.0 cm |
| SEAT TUBE ANGLE | 73.0 degrees | 73.0 degrees | 73.0 degrees |
| SEAT ANGLE | 73.0 degrees | 73.0 degrees | 73.0 degrees |
| HEAD TUBE LENGTH | 170.0 mm | 180.0 mm | 190.0 mm |
| HEAD TUBE ANGLE (DEGREES) | 73.0 degrees | 68.0 degrees | 70.0 degrees |
| TOP TUBE HORIZONTAL | 622.0 mm | 639.0 mm | 655.0 mm |
| CHAIN STAY LENGTH | 470.0 mm | 470.0 mm | 470.0 mm |
| BOTTOM BRACKET DROP | -60.0 mm | -60.0 mm | -60.0 mm |
| WHEELBASE | 1177.0 mm | 1182.0 mm | 1187.0 mm |
| STACK | 668.0 mm | 683.0 mm | 697.0 mm |
| REACH | 418.0 mm | 430.0 mm | 442.0 mm |
