Designed to be a proper BB for installing M30 spindle based cranks in either BB30, PF30 or Specialized's 2014-2015 OSBB frames.

Our patent pending design keeps the cartridge bearings outboard of the frame right on Shimano spec for greater rigidity and free of frame/c-clip tolerance issues that other systems deal with.Simply press in the longer non-drive-cup, then the shorter drive cup threads into it. As the drive cup threads in, our trademark Collet system expands to a precise limit evenly dispersing pressure for a super tight fit.

With both cups connected and our collet set exactly to spec, there is no chance the bearings can come out of alignment or wiggle/walk out of the frame. This design also uses a compressible o-ring on the non-drive side cup to compensate for frame shell width discrepancies.

Key Features:

For Praxis M30 Spindle based cranks only. Not for other 30mm cranks.
68mm road
Forged and machined heat-treated alloy cups
30mm drive bearing / 28mm non drive bearing, steel cartridge bearings
For BB30, PF30
Specialized Road 2014-2015 “OSBB” frames (when combinded with IFBBOSBB)
Use M30 bottom bracket tools for installation
Not for BBRight or BB386EVO frames
68mm cannot be used for MTB cranks

Occasionally, without notice, manufacturers change product design and/or specifications.

IN STOCK SRAM

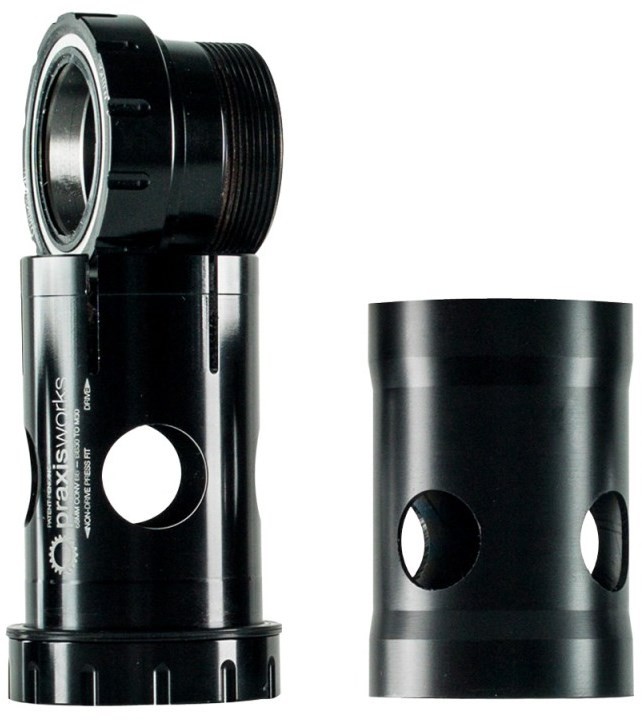

InfoCrank Praxis Works BB30/PF30 Bottom Bracket with Wave Washer
