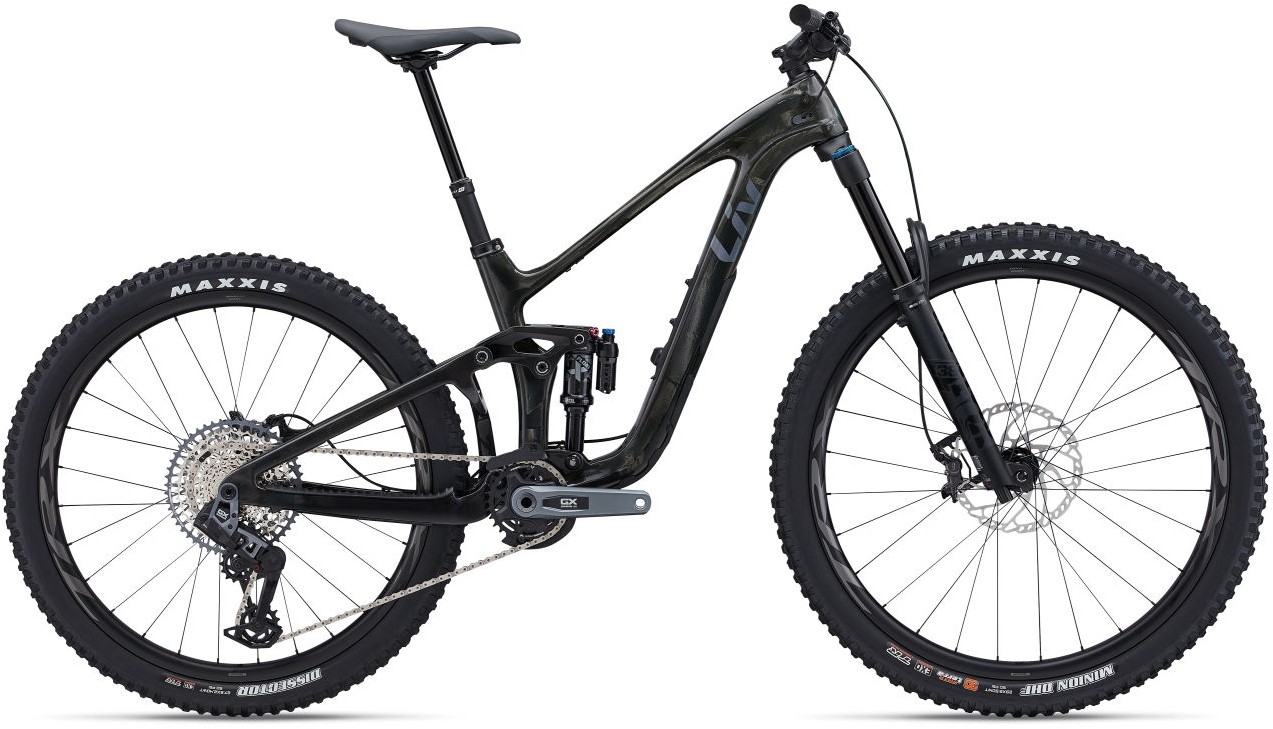

Liv Intrigue LT Advanced 1 Mountain Bike 2024 - Trail Full Suspension MTB
Performance Long Travel Trail
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Advanced-grade composite front and rear triangles, 150mm Maestro Suspension, 3 position flip, integrated down tube storage |
Fork | Fox 36 Performance Elite, 160mm, Grip 2 damper, Boost 15x110 Kabolt, tapered, 44mm offset |
Rear Shock | Fox Float X Performance Elite 185x55, custom tuned for Liv |
Stem | Giant Contact SL, 35mm |
Bars | Giant Contact SLR TR35, composite, 20mm rise, 35mm |
Front Brake | Shimano XT BR-M8120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm |
Rear Brake | Shimano XT BR-M8120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm |
Brake Lever | Shimano XT BL-M8100 |
Front Mech | N/A |
Rear Mech | SRAM GX Eagle Transmission AXS |
Shifters | SRAM AXS, 1x12 |
Speed | 12 |
Rims | Giant TRX 2 Carbon WheelSystem, 30mm inner width XS/S: [F] 29, [R] 27.5 M/L: [F] 29, [R] 29 |
Front Hub | [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt |
Rear Hub | [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt |
Spokes | Sapim |
Front Tyre | [F]: Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S, [R]: Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless Size M and L, [R]: Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless |
Rear Tyre | [F]: Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S, [R]: Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless Size M and L, [R]: Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless |
Seat Post | TranzX travel-adjustable dropper, remote XS&S: 120-150mm travel/ 30.9 x 459mm M&L: 140-170mm travel / 30.9 x 499mm |
Saddle | Liv Sylvia |
Chainset | SRAM GX T-Type, 30t, 55mm chainline |
Bottom Bracket | SRAM DUB, press fit |
Chain | SRAM GX T-Type |
Cassette | SRAM GX T-Type, 10x52 |
Pedals | PEDALS NOT SUPPLIED |
Mountain Bike Size Chart
Height
|
Bike Size
|
Mountain Bike Size
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
