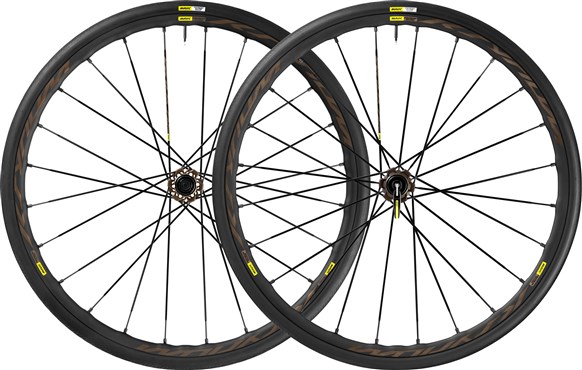

Mavic Ksyrium Pro Disc Allroad Clincher Road Wheels 2017

Breaking the boundaries of traditional road riding is now possible thanks to the new Ksyrium Pro Disc Allroad

UST-compliant super wide 19mm internal rim width for increased air volume Can be used with 28mm Yksion Elite Guard on paved roads or 30mm Yksion Elite Allroad on gravel terrains

Superlight ISM 4D rims weigh just 430 grams Light and strong Zicral spokes Tough and light new Instant Drive 360 freewheel system

24 spokes front and rear for perfect brake torque distribution and disc-specific rim Front hub convertible from 12mm through axle to quick release or 15mm through axle (with optional adapters) Rear hub convertible from 12x142 through axle to quick release (with optional adapters - not available in Germany) Also compatible with XD-R drivetrain with optional driver body

Material: Maxtal

Height: 26mm, asymmetrical

Joint: SUP

Drilling: Fore

Disc brake specific profile

Weight reduction: ISM 4D

Valve hole diameter: 6.5 mm

Tyre: UST Tubeless and tubetype

Internal width: 19 mm

ETRTO size: 622x19C

Material: Zicral

Shape: straight pull, bladed

Nipples: Fore integrated aluminum

Count: 24 front and rear

Lacing: front crossed 2, rear Isopulse

Front and rear bodies: aluminum

Axle material: aluminum

Sealed cartridge bearings

Freewheel: Instant Drive 360

Front: Quick release, 12x100 and 15x100 compatible

Rear: Quick Release, 12x142 and 12x135 compatible

Yksion Elite Guard or Yksion Elite Allroad

UST Ready (Yksion Elite Allroad only)

Front and Rear Tread: Single Compound

Casing: 120 TPI

Breaker: Polyamide, from bead to bead

Dimensions: 28-622 (700x28c) or 30-622 (700x30C)

Color: Black only

Disc standard : 6 Bolts or Center Lock(R)

Freewheel: Shimano/Sram, convertible to Campagnolo and XD-R with optional driver bodies

Front axle: convertible from 12mm thru axle to quick release or 15mm thru axle with optional adapters

Rear axle: 12mm thru axle, convertible to Quick Release with optional adapters (not available in Germany)

Ksyrium Pro Allroad Disc

ASTM CATEGORY 2 : road and offroad with jumps less than 15cm

For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don't exceed 120kg, bike included

Recommended tyre sizes: 28 to 42 mm

Max. Pressure: 28mm 7.7 bars - 110 PSI / 30mm 5.8 bars - 85 PSI

brake type: disc

field: allroad

field: flat

field: mixed

field: mountain

front axle: 12x100

rear axle: 12x135/142

rim profile: low

rim: aluminium

tyre type: clincher

weight: 1601g to 1700g

ISM 4D

Maxtal

Zicral

Fore

Instant Drive 360

UST

Isopulse

QRM

SUP

More and more riders are looking to escape the traffic and head out onto rugged gravel and packed earth tracks. This provides the ultimate test of comfort and reliability for their kit. The new system for roads or tracks To meet this need, we’ve created a dedicated Wheel-Tire System that combines comfort and reliability with stiffness and responsiveness. It’s equally at home on smooth paved roads or rugged gravel mountain tracks, and it weighs in at just 1620g. One of the keys to it is our new ISM4D technology (Inter Spoke Milling 4 Dimensions). This removes material from the rim where it’s not needed but keeps it around the spokes where the tension is applied. This keeps the rim weight at an impressive 430g, despite the generous 19mm internal width. Tire options to suit your riding The wide rim is the secret to the wheel’s versatility, particularly when used with one of our two tire options: Yksion Elite Guard in 28mm is ideal if you’re going to be riding poorly maintained paved roads or shorter and smoother gravel sections. It features a bead-to-bead polyamide breaker that reinforces its 120TPI casing for extra puncture and side cut resistance. Its well-balanced rubber compound and specific tread pattern will also keep you safe and efficient in any weather conditions. Yksion Elite Allroad in 30mm offers the same cut and puncture protection but adds 10% more air volume for extra comfort and traction. It also has a carefully designed tread pattern that combines great rolling efficiency, thanks to its slick rolling tread on top, with great grip – even when off camber on a dirt road – because of its progressive design with file tread and taller side knobs. Yksion Elite Allroad also has the added benefit of being tubeless, meaning extra traction and extra pinch flat protection. But in a user-friendly way –using slightly less rigid Kevlar beads instead of the traditional non-stretch carbon. Efficient, even brake torque Ksyrium Pro Disc Allroad is a disc-specific wheelset and, as such, features spoke material (Zicral aluminum), spoke count (24 front and back) and lacing patterns that are adapted specifically to distribute the brake torque efficiently and evenly. Full compatibility This wheelset is compatible with both rotor standards, International 6 Bolts and Center Lock. The front hub offers triple compatibility: delivered in 12x100, it can convert to quick release and 15x100 with optional adapters. The rear wheel features our brand new Instant Drive 360 freewheel system that is light, engages twice as fast as before, and provides full compatibility with any retention system, being delivered in 12x142 and convertible to quick release with optional adapters. Freewheel system is for Shimano/Sram but converts to Campy or Sram XD with optional driver bodies.

Weight Front   770

Weight Pair   1620

Weight Rear   850

Weight Tyre 700x28   245

Weight Tyre 700x30   330
