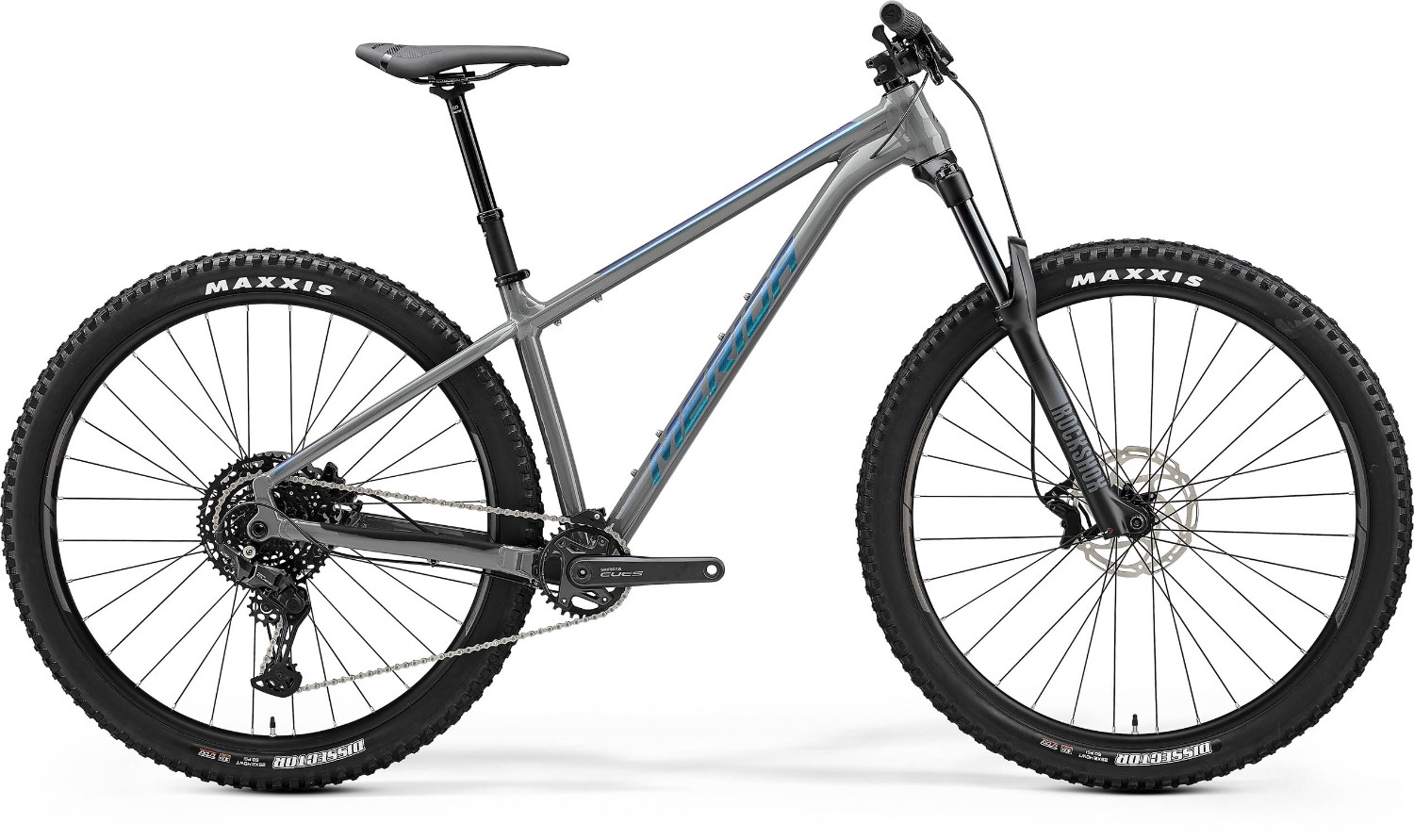

Merida Big Trail 500 Mountain Bike 2024 - Hardtail MTB
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | TFS - 6061 double butted technoformed aluminium, smooth welding, Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing, BSA BB standard, Max tyre size 29" x 2.5" |
| Fork | Rock Shox Recon Silver RL; 140mm; Tapered; 42mm fork offset |
| Headset | Merida M4455 |
| Stem | Merida Expert TR; aluminium; 35mm diameter; 0 degree rise. Stem length: 50mm all sizes |
| Bars | Merida Comp TR; aluminium; 780mm wide; 20mm rise |
| Front Brake | Tektro Gemini M530 4 piston hydraulic disc brake caliper with Tektro TR-45 180mm rotor |
| Rear Brake | Tektro Gemini M530 2 piston hydraulic disc brake caliper with Tektro TR-45 180mm rotor |
| Brake Lever | Tektro Gemini M530 |
| Rear Mech | Shimano CUES U6000; GS |
| Shifters | Shimano SL-MT500-IL dropper lever and Shimano CUES U6000 |
| Speed | 10 |
| Rims | Merida Comp TR; 29mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included) |
| Front Hub | Shimano TC500-B; 110x15mm; 32 spokes; Centerlock |
| Rear Hub | Shimano TC500-HM-B; 148x12mm; 32 spokes; Centerlock with Merida Comp TR axle including removable 6mm allen key |
| Spokes | Black stainless |
| Front Tyre | Maxxis Dissector; 29" x 2.4"; Kevlar bead, folding; TR EXO Dual |
| Rear Tyre | Maxxis Dissector; 29" x 2.4"; Kevlar bead, folding; TR EXO Dual |
| Seat Post | Merida Comp TR; 30.9mm diameter; 0mm lay back; S: 125mm seat post travel - M/L: 150mm seat post travel - XL/XXL 175mm seat post travel |
| Saddle | Merida Comp SL with V-mount |
| Chainset | Shimano CUES U6000; 32 tooth chainset. Crank length: 170mm (S), 175mm (M,L,XL,XXL) |
| Chain | Shimano LG500 |
| Cassette | Shimano LG300; 11-48 teeth; 10 speed |
| Pedals | VP VPE-891 |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
