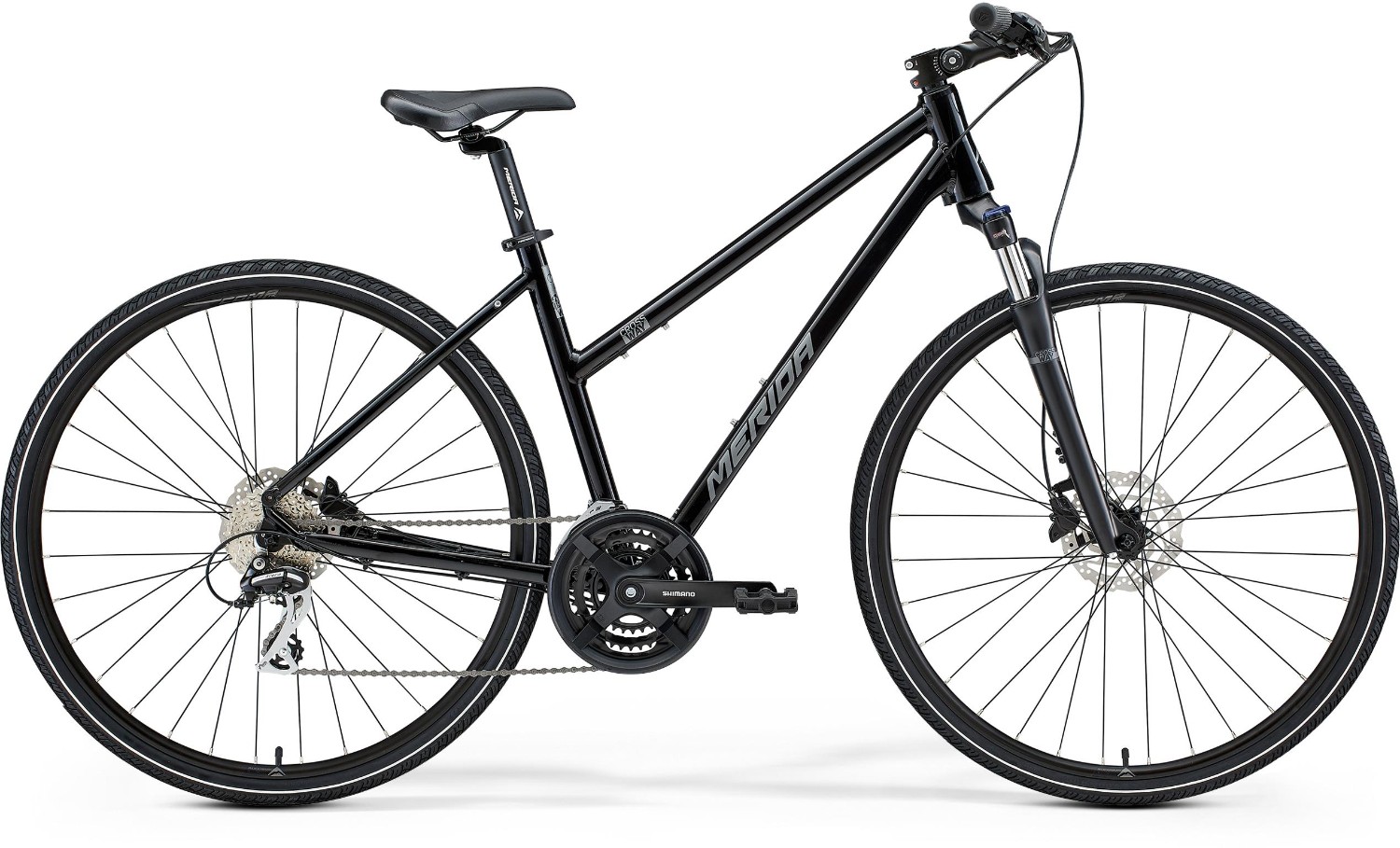

Merida Crossway 20D Womens 2023 - Hybrid Sports Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | TFS II - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max. tyre size 700 x 50c |
| Fork | Suntour NEX HLO; Coil; 63mm travel; Lockout. Max. tyre size: 700 x 50c |
| Headset | Merida M2340 |
| Stem | Merida TK; aluminium; 25.4mm diameter; adjustable - Stem length: 100mm (all sizes) |
| Bars | Merida CC; aluminium; 660mm wide; 25mm rise |
| Front Brake | Shimano BR-MT200; 2 piston hydraulic disc brake caliper with Shimano RT10; 160 mm rotor |
| Rear Brake | Shimano BR-MT200 hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
| Brake Lever | Shimano ST-EF505 |
| Front Mech | Shimano FD-TY710 |
| Rear Mech | Shimano RD-M359 |
| Shifters | Shimano ST-EF505 |
| Speed | 24 |
| Rims | Merida CC; 17mm inner rim width; Aluminium |
| Front Hub | Shimano TX505; 100x9mm wide; 32 spoke holes; Center lock |
| Rear Hub | Shimano TX505; 135x9mm wide; 32 spokes; Center lock |
| Spokes | Black steel |
| Front Tyre | Merida K1171; 700x40C; wire bead |
| Rear Tyre | Merida K1171; 700x40C; wire bead |
| Seat Post | Merida TK; 30.9mm diameter; 13mm setback; 40mm seatpost suspension travel |
| Saddle | Merida Cross Sport |
| Chainset | Shimano TY301; 48-38-28 tooth chainset. Crank length: 170mm (XS,S,M) |
| Bottom Bracket | FSA TH-7420ST-W, Cartridge Bearing |
| Chain | Sunrace M84 |
| Cassette | Sunrace CSM668 11-32 teeth |
| Pedals | VP Components, VPE-891 |
Merida Crossway Size Chart
|
Frame Size |
Height (cm) |
Height (in) |
|
XXS |
< 149 |
< 4' 11" |
|
XS |
145 - 160 |
4' 9" - 5' 3" |
|
S |
155 - 170 |
5' 1" - 5' 7" |
|
M |
168 - 180 |
5' 6" - 5' 11" |
|
L |
178 - 190 |
5' 10" - 6' 3" |
|
XL |
> 185 |
> 6' 1" |
What size frame do I need if I am between sizes? - read here
